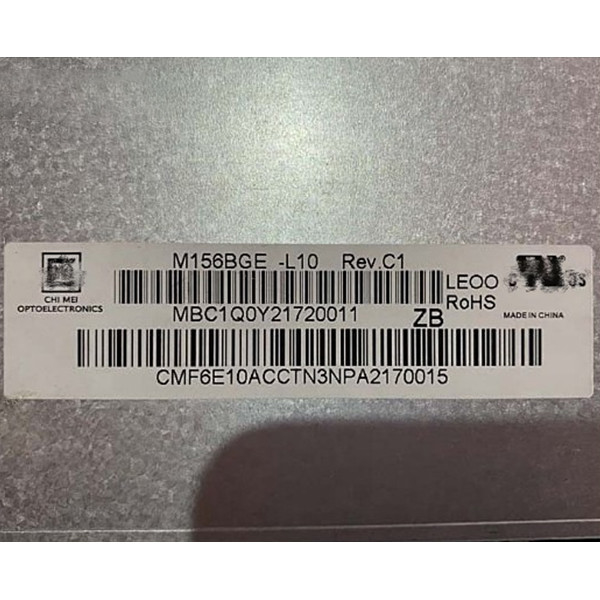

M156BGE-L10 LCD Screen Display Panel for Chimei Innolux
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M156BGE-L10 |
| Document: | M156BGE-L10.PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M156BGE-L10 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Bezel Opening: | 346.5(W)×196.8(H) Mm | Outline Dim.: | 363.8(H)×215.9(V)×11(D) Mm |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Weight: | 1.06/1.11Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector |
Product Description
M156BGE-L10 LCD Screen Display Panel for Chimei Innolux
M156BGE-L10 LCD Panel Product details :
| Chimei Innolux LCD SCREEN M156BGE-L10 | |
|---|---|
| Manufacturer | Chimei Innolux |
| Model Name | M156BGE-L10 |
| Screen size | 15.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 [WXGA] 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 344.232(H)×193.536(V) mm |
| Outline Size | 363.8(H)×215.9(V) ×11(D) mm |
| Visual size | 346.5(H)×196.8(V) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Display Mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/20/45 (Typ.)(CR≥10) |
| Responding time | 2/6 (Typ.)(Tr/Td) |
| Number of color | 16.7M 65% NTSC |
| Backlight type | WLED [8S4P] , 30K hours , W/O Driver |
| Weight | 1.06/1.11Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| M156BGE-L10 LCD Screen Display Panel for Chimei Innolux | |
M156BGE-L10 LCD Screen Payment Method and Instructions:
1. Accepted Payment Methods:
We accept the following payment methods:
PayPal
Western Union remittance
Bank transfer
ALI platform payment
etc.
2. Payment Confirmation Email:
After winning the auction, an email will be sent to your ALI registered email address with details on the payment process.
3. PayPal eCheck Payment:
If you choose to pay through PayPal using eCheck, please be aware that shipment will occur only after the eCheck has cleared. This is to ensure the security and validity of the payment.
4. Payment Deadline:
All payments are expected within 7 days after the last winning auction is closed. Failure to make full payment within this period may result in the opening of a non-payment dispute.
5. Shipping Address:
We will ship the item to the address provided during payment for fast and accurate shipment. If you need to change the shipping address, please add a note when making the payment. Ensure any changes are made promptly after payment to avoid shipping to an incorrect address.
M156BGE-L10 LCD Panel Shipping and Package :
M156BGE-L10 LCD Screen Shipping Information :
1. Shipping Rates and Inclusions:
Our shipping rates cover the cost of shipping, handling, packaging, and related manpower costs. This all-inclusive approach ensures a hassle-free delivery experience for our customers.
2. Undeliverable Address and Shipping Fees:
We are not responsible for undeliverable addresses. If an item is returned due to an incorrect address supplied by the buyer, we reserve the right to charge the shipping fee again. Please ensure that the address provided is accurate to avoid any complications.
Items not received due to an invalid address registered on PayPal are not eligible for a full refund or replacement under our policy.
3. Local Pick-Up:
Local pick-up is not available. All items will be shipped using our designated shipping methods.
4. Shipping Time and Tracking:
We offer worldwide shipping (except the USA) via flat rate shipping using Hong Kong Air Mail or China Air Mail. The estimated shipping time is 15 to 35 business days, excluding weekends.
Express Shipping Options:
EMS (5-8 days) or DHL (2-5 days) express post options are available at a higher cost (approximately $20 or higher). If you prefer expedited shipping, please contact us to arrange this service.
We are committed to providing you with reliable shipping options and keeping you informed throughout the process. If you have specific shipping preferences or inquiries, please do not hesitate to contact our customer service team.
M156BGE-L10 LCD Screen Return Policy :
1. Notification of Returns:
All returns must be communicated with the seller before initiating the return process. Please contact us to inform us of your intention to return the item.
2. Notification Period:
The buyer is required to notify the seller of any returned items within 7 days after receiving the package. We reserve the right to refuse any return requests that are communicated beyond this 7-day period.
3. Exchange for Buyer's Error:
In cases where the buyer orders the wrong part and wishes to exchange it, the buyer is responsible for covering the two-way shipping fees associated with the exchange.
4. Condition of Returned Items:
Return items must be in their original packaging and in good condition. Ensure that all components are included, and the item is securely packed to prevent any damage during return transit.
5. Non-Refundable Charges:
Return postage and insurance charges are non-refundable, whether you opt for a refund or request a new shipment.
6. Non-Refundable Shipping Fees:
Shipping fees incurred during the initial purchase are non-refundable.
We appreciate your understanding and cooperation with our return policy. If you have any questions or concerns regarding the return process, please contact our customer service team.
M156BGE-L10 LCD Panel FAQ :
Q: What happen if the lcd panel M156BGE-L10 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about M156BGE-L10 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order M156BGE-L10 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order Chimei Innolux M156BGE-L10 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
