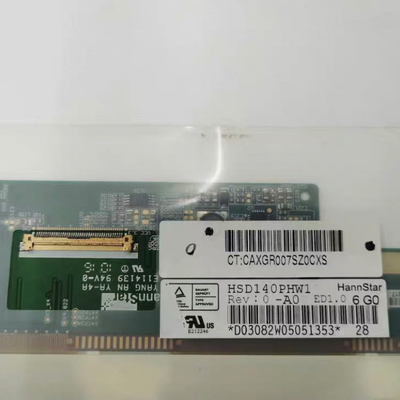

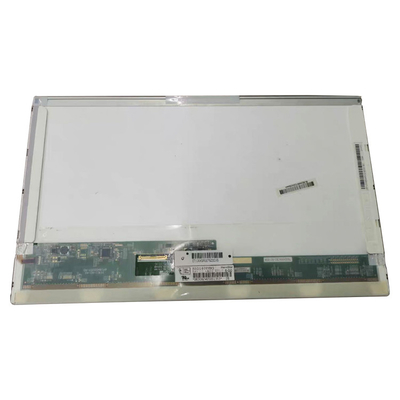

HSD140PHW1-A 14.0 inch 40 pin lcd Screen display for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD140PHW1-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD140PHW1-A | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area: | 309.399(W)×173.952(H) Mm |
| Bezel Opening: | 312.80(W)×177.35(H) Mm | Outline Size: | 323.5(W)×192(H) ×5.2(D) Mm |
| Surface: | Glare (Haze 0%), Hard Coating (3H) | Response Time: | 2/6 (Typ.)(Tr/Td) |
| Application: | Laptop | Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description
HSD140PHW1-A 14.0 inch 40 pin lcd Screen display for Laptop
HSD140PHW1-A LCD Panel Product details :
| HannStar LCD Screen HSD140PHW1-A | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD140PHW1-A |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | 312.80(W)×177.35(H) mm |
| Outline Size | 323.5(W)×192(H) ×5.2(D) mm |

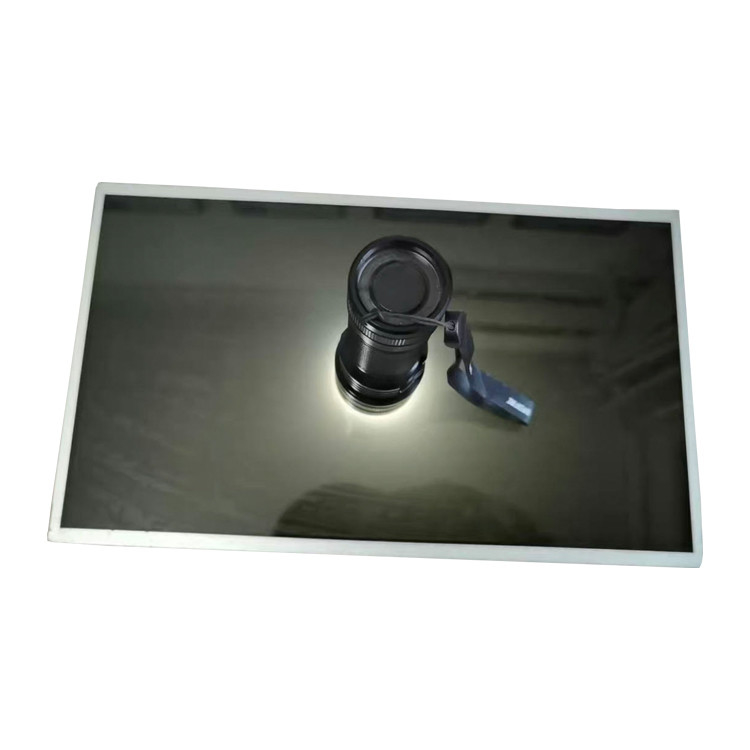

| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Display Colors | 262K 60% NTSC |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| HSD140PHW1-A 14.0 inch 40 pin lcd Screen display for Laptop | |
Important Notice for HSD140PHW1-A LCD Screen Installation :
1. Prior to Installation:
Before embarking on the installation process of the HSD140PHW1-A LCD screen, it is imperative to ensure your safety and the integrity of your equipment. To this end, kindly adhere to the following steps:
Power Off: Firstly, power down your device. Ensure that it is completely turned off and disconnected from any power source to prevent electrical mishaps during installation.
Unplug Screen Cable: Carefully unplug the existing screen cable from your device. This will prevent any potential damage or interference during the installation process.
Complete Installation: Only after meticulously following these precautions should you proceed with the installation. Reconnect the LCD screen and then, and only then, turn on the power.
2. Quality Assurance:
At HSD140PHW1-A, we are committed to delivering top-tier LCD panels that meet the highest quality standards. Each panel undergoes rigorous testing procedures to ensure that you receive a product of impeccable quality. We are proud to guarantee:
Grade A Panels: All our LCD panels are classified as Grade A, ensuring the absence of dead pixels. This means you can trust in a flawless visual experience.
3. Panel Compatibility:
We understand that compatibility is paramount when it comes to LCD screen replacement. To ensure a seamless fit for your device, please take the following steps:
Check Panel Information: Verify the specific information of the LCD panel to ensure compatibility with your device. Rest assured, we take great care to match panels accurately.
Send Panel Picture: If you're uncertain about the compatibility of your current panel, please share a picture of it with us. Our dedicated team will promptly assess and confirm compatibility, providing you with the information you need.
4. Direct Ordering for Professionals:
For those who are well-versed in LCD panel specifications and know the exact model they require, we offer a streamlined ordering process. Professionals can confidently place their orders, knowing they'll receive the correct panel for their needs.
5. Secure Packaging:
We prioritize the safety of our LCD panels during transit. Therefore, all panels are meticulously packaged in antistatic bags and sturdy boxes. This ensures that your LCD screen arrives in pristine condition, ready for a trouble-free installation.
HSD140PHW1-A LCD Panel Shipping and Package :
HSD140PHW1-A LCD Screen Shipping Options :
We offer a range of shipping options to cater to your specific needs, ensuring you receive your HSD140PHW1-A LCD screen in a timely and cost-effective manner. Please review the following shipping options:
1. Courier Express (4-7 Working Days):
For a swift delivery experience, we recommend our Courier Express option. You can expect your LCD screen to arrive within 4 to 7 working days. If you require assistance in selecting a reliable and cost-effective shipping agent, we are happy to provide suggestions.
2. Express Company (DHL, FedEx, TNT, UPS, etc.) (3-5 Working Days):
Opting for Express Companies such as DHL, FedEx, TNT, UPS, and others ensures even faster delivery. Your LCD screen will typically arrive within 3 to 5 working days, allowing you to enjoy your new screen promptly.
3. China Post Air Mail (Approximately 15-35 Days):
If you prefer a more economical shipping option, we also offer China Post Air Mail. This method may take longer, approximately 15 to 35 days, depending on your location. It's a cost-effective choice for those not in immediate need of their LCD screen.
4. Sea Shipment (Approximately 20-30 Days):
For bulk orders or when time is not a critical factor, sea shipment is available. This option offers cost savings but requires a longer shipping duration, typically around 20 to 30 days.
We understand that every customer has unique shipping preferences and requirements. Therefore, we provide a variety of shipping choices to accommodate your needs, whether it's a speedy delivery or a cost-effective solution for your LCD screen.
When placing your order, please select the shipping option that aligns with your timeline and budget. Rest assured that we will work diligently to ensure your order is processed and shipped in a timely manner, and we will provide you with any necessary tracking information so you can monitor the status of your shipment.
HSD140PHW1-A LCD Screen Return Policy :
We understand that sometimes returns may be necessary, and we aim to make the process as smooth as possible. Please carefully review our LCD screen return policy to ensure a hassle-free experience:
Return Merchandise Authorization (RMA):
To initiate a return, you must obtain a Return Merchandise Authorization (RMA) number. Without an RMA, we cannot accept the return. Please contact our customer service team to request an RMA number before proceeding with the return process.
Reporting Dead on Arrival (DOA) or Shipping Damage:
If you receive an LCD screen that is Dead on Arrival (DOA) or shows signs of shipping damage, it is imperative to report this to us within 7 business days of receiving the item. Timely reporting ensures a swift resolution to the issue.
Return Window:
You have a 7-business-day window to return an item for a refund. If you wish to return the item after this period, it will be eligible for exchange only.
Restocking Fee:
A 20% restocking fee may be applied in the following cases:
The item has not been used.
The item is non-defective upon inspection.
You ordered the wrong part.
Return Shipping Charges:
The customer is responsible for covering all return shipping charges in all cases. This includes returns for DOA, defective items, unused items, or items ordered in error.
Exchange for Wrong Screen Ordered:
If you need to exchange an LCD screen due to ordering the wrong part, you will be responsible for both the return shipping fees to send the item back to us and the shipping fees for the replacement item.
Non-Refundable Shipping Fees:
Please note that shipping fees are non-refundable in the following scenarios:
Dead on Arrival (DOA) returns.
Returns for defective items.
Returns for items that have not been used.
Returns for items ordered incorrectly.
HSD140PHW1-A LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of HSD140PHW1-A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD140PHW1-A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of HSD140PHW1-A ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
