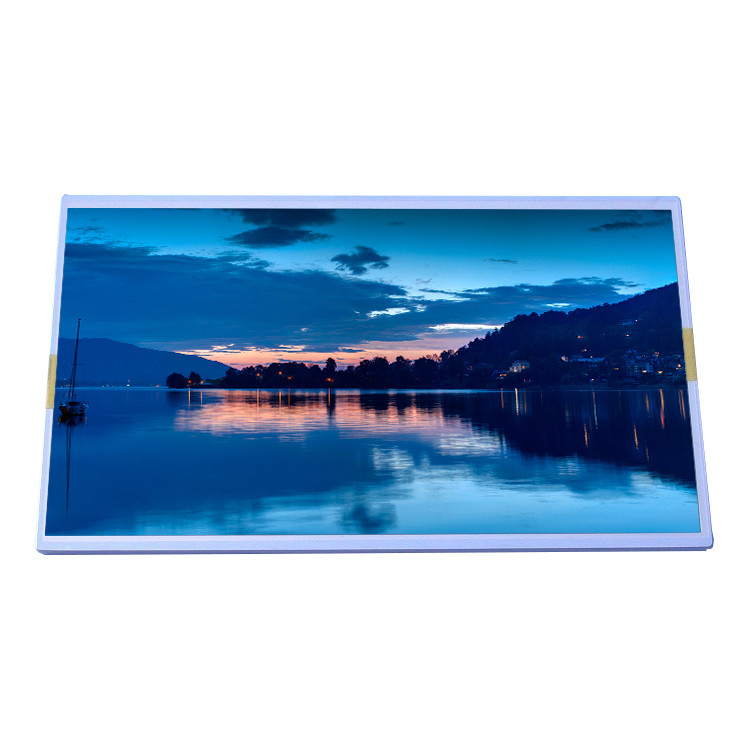

12.1 inch lcd Display Panel HSD121PHW1-A01 LCD laptop screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD121PHW1-A01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD121PHW1-A01 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 129PPI | Active Area: | 268.01(W)×150.68(H) Mm |
| Bezel Opening: | 271.01(W)×153.48(H) Mm | Outline Dim.: | 279(H)×167.2(V) ×5.1(D) Mm |
| Response Time: | 3/9 (Typ.)(Tr/Td) | Form Style: | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit) , 30 Pins Connector |
Product Description
12.1 inch lcd Display Panel HSD121PHW1-A01 LCD laptop screen
HSD121PHW1-A01 LCD Panel Product details :
| HannStar LCD Screen HSD121PHW1-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD121PHW1-A01 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 129PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 268.01(W)×150.68(H) mm |
| Bezel Opening | 271.01(W)×153.48(H) mm |
| Outline Dim. | 279(H)×167.2(V) ×5.1(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3/9 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 49% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 12.1 inch lcd Display Panel HSD121PHW1-A01 LCD laptop screen | |
HSD121PHW1-A01 LCD Screen WARNING :
1. Verify Compatibility:
Before proceeding with the installation of your HSD121PHW1-A01 LCD screen, please ensure that it is an exact match to your original screen. Differences in size, specifications, or connectors can lead to compatibility issues.
2. Professional Installation Recommended:
The installation of LCD screens can be a delicate and complex process, often requiring specialized tools and knowledge. Therefore, we highly recommend seeking the assistance of a skilled and experienced technician or professional for the installation of the HSD121PHW1-A01 LCD screen.
3. No Installation Guide Included:
Please be aware that this product does not come with an installation guide or instructions. It is essential to rely on the expertise of a trained individual who can safely and correctly replace your screen. Attempting to install the screen without proper guidance can lead to damage or injury.
4. Warranty Considerations:
Installing the LCD screen yourself, without professional assistance, may void any existing warranties or guarantees associated with the product. Ensure you are aware of the potential impact on your warranty before proceeding.
5. Handle with Care:
LCD screens are sensitive and prone to damage from static electricity, pressure, or mishandling. When handling the HSD121PHW1-A01 LCD screen, exercise caution and use appropriate anti-static precautions.
6. Quality Assurance:
We take great care to provide high-quality products. However, if you encounter any issues with your HSD121PHW1-A01 LCD screen or have questions about its installation, please contact our customer support for assistance. We are here to help ensure your satisfaction and a successful installation.
HSD121PHW1-A01 LCD Panel Shipping and Package :
HSD121PHW1-A01 LCD Screen Order Processing & Handling Time :
Order Confirmation:
Upon receipt of your order and confirmation of payment, our dedicated team immediately springs into action to process your request. This typically happens within the first 24 hours after you've placed your order.
Processing Time:
Our standard processing time for orders is 2 business days. Please note that this timeframe excludes Fridays, Saturdays, and Jewish Holidays, as our team takes well-deserved breaks during these periods. Rest assured, we are fully committed to ensuring your order is promptly attended to once regular business operations resume.
Special International Secure Packaging:
To guarantee the safe and secure delivery of your LCD screen, we take special care in packaging. This includes using state-of-the-art materials and techniques to protect your item during transit. Our packaging process is meticulous and designed to withstand the rigors of international shipping. This step adds to the overall handling time, ensuring that your product arrives in pristine condition.
Paperwork and Documentation:
International shipments often require specific paperwork and documentation to comply with customs regulations. Our team meticulously handles all the necessary paperwork to ensure a seamless customs clearance process. This not only expedites the shipping process but also reduces the risk of delays due to customs issues.
Communication of Shipping Delays:
We understand that unexpected situations can occasionally arise that may affect the estimated delivery date. In such cases, we are committed to keeping you informed and updated. If there are any unforeseen shipping delays, rest assured that we will promptly notify you via email or a direct message. Your satisfaction is of utmost importance to us, and we will do everything in our power to address any delays or issues that may occur during the shipping process.
HSD121PHW1-A01 LCD Screen Return Policy :
1. Inspection Period:
You have a period of 7 days from the date of delivery to inspect and install the product. We encourage you to thoroughly examine the product during this time frame. If you discover any damage or if the product is dead on arrival (DOA), please report it to us immediately.
2. Return for Refund:
Regardless of the reason for your return, you may initiate a return during the period specified in our eBay Return Policy Section. For your convenience, we offer a refund of the purchase price, with a deduction of a 20% restocking fee. Please note that the customer is responsible for covering all return shipping charges in all cases.
3. Defective Product Exchange:
If, within 90 days of purchase, you determine that the product is defective, you may request an exchange for the same exact product. However, if you wish to exchange for a different product, it will be considered as two separate transactions: a return and a new purchase.
4. Request an RMA:
Before shipping the product back to us, please request a Return Merchandise Authorization (RMA). This step is essential to ensure the smooth processing of your return or exchange. You can contact our customer support to initiate the RMA process. Please be aware that you are responsible for any shipping charges incurred when returning the product.
5. Proper Packaging:
To facilitate the return or exchange process, it is crucial to follow the instructions provided with your RMA. Ensure that the product is securely and adequately packaged to prevent any damage during transit. Returns or exchanges that do not adhere to the RMA instructions may be rejected.
We are committed to resolving any issues you may encounter with your HSD121PHW1-A01 LCD screen promptly and efficiently. Your satisfaction is our priority, and we are here to assist you throughout the return or exchange process.
HSD121PHW1-A01 LCD Panel FAQ :
Q: Can I pay my order of HSD121PHW1-A01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD121PHW1-A01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of HSD121PHW1-A01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of HSD121PHW1-A01 ?
A: We accept T/T , Paypal , western union .
