HSD101PFW3-A00 10.1 inch 1024*600 LCD Display Panel For Netbook PC
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PFW3-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD101PFW3-A00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 224.72(W)×127.28(H) Mm | Outline(mm): | 243(W)×146.5(H)×3.6(D) |
| Treatment: | Glare (Haze 0%), Hard Coating (3H) | Backlight: | WLED , 10K Hours , With LED Driver |
| Used For: | Netbook PC | Signal Type: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description

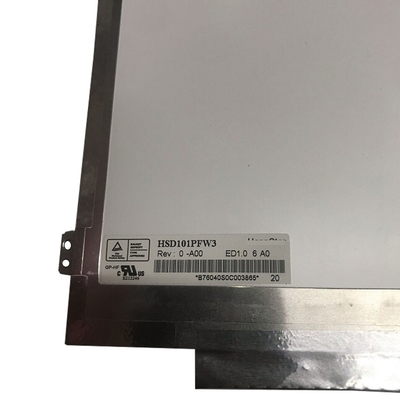

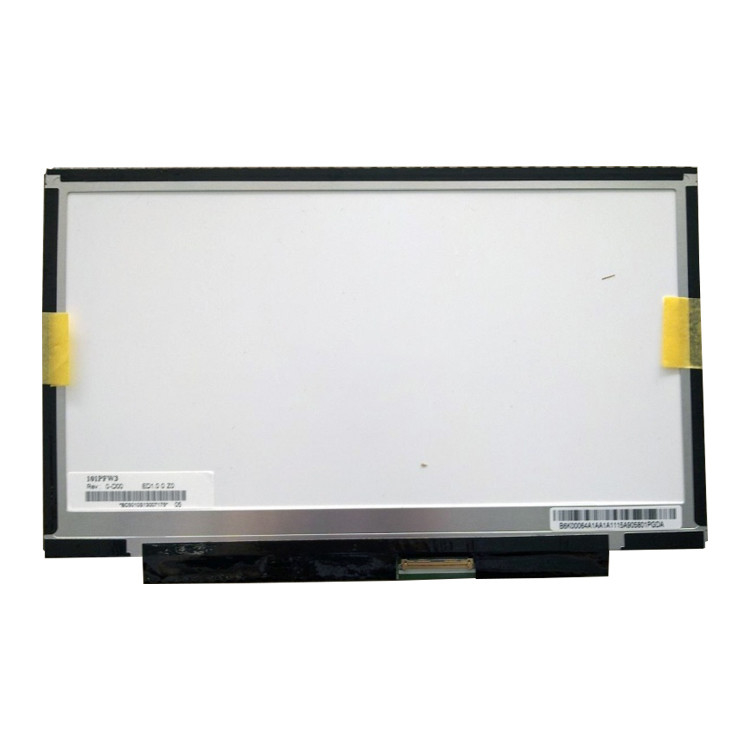

HSD101PFW3-A00 10.1 inch 1024*600 LCD Display Panel For Netbook PC
HSD101PFW3-A00 LCD Panel Product details :
| HannStar LCD Screen HSD101PFW3-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101PFW3-A00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 224.72(W)×127.28(H) mm |
| Outline(mm) | 243(W)×146.5(H)×3.6(D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 180 (Typ.)(cd/m²) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Good View at | 6 o'clock |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Color Depth | 262K 50% NTSC |
| Backlight | WLED , 10K hours , With LED Driver |
| Used for | Netbook PC |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
|
HSD101PFW3-A00 10.1 inch 1024*600 LCD Display Panel For Netbook PC |
|
HSD101PFW3-A00 LCD Display Payment Options :
1. Credit and Debit Cards:
We accept all major credit and debit cards.
You can securely make your payment using your preferred card during the checkout process.
2. ALI Payment:
Our preferred payment method is ALI.
If you have an ALI account, you can choose this option to complete your purchase.
ALI provides a secure and trusted platform for online transactions.
If you wish to use any of these payment methods or have specific questions regarding the payment process, please don't hesitate to contact us. We are here to assist you and ensure that your payment and purchasing experience with HSD101PFW3-A00 LCD Display is as convenient and straightforward as possible.
HSD101PFW3-A00 LCD Panel Shipping and Package :
HSD101PFW3-A00 LCD Display Panel Packing :
Packaging Type:
We use high-density foam boxes or brown boxes for packaging our LCD display panels.
Why High-Density Foam Boxes/Brown Boxes:
High-Density Foam Boxes: These boxes provide exceptional protection to the delicate LCD display panels. The high-density foam is designed to absorb shocks and vibrations during transportation, reducing the risk of damage.
Brown Boxes: Brown boxes are sturdy and reliable for shipping. They offer an additional layer of protection and help keep the contents secure during transit.
By using high-density foam boxes and brown boxes, we aim to ensure that your HSD101PFW3-A00 LCD Display Panel arrives at your location in pristine condition, ready for installation and use. If you have any specific packaging requests or concerns, please feel free to contact our customer support team, and we will do our best to accommodate your needs.
HSD101PFW3-A00 LCD Display Return Policy :
1. Returns for Incorrect or Dead-on-Arrival (DOA) Items:
We gladly accept returns for items that were shipped incorrectly or arrived in a non-functional condition (DOA).
In such cases, please contact us promptly to initiate the return process.
2. Warranty for Defective Products:
We stand behind the quality of our products. If you encounter any defects within the warranty period, we are here to assist you.
Defective products can be exchanged or repaired as per the terms of the warranty.
3. Return Procedure for Defective Products:
If you receive a defective product, it is essential to return it within 30 days from the date the Return Merchandise Authorization (RMA) was issued.
We will promptly process your return and provide you with a replacement product or a refund, depending on your preference.
4. Wrong Product Purchases:
In the event that you purchase the wrong product by mistake, please notify us immediately.
If your order has not yet been shipped, we will make every effort to correct the order for you.
If the order has already been dispatched, you are responsible for all associated costs, including the original shipping charges, handling fees, and return shipping costs.
HSD101PFW3-A00 LCD Panel FAQ :
Q: Can I pay my order of HSD101PFW3-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD101PFW3-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of HSD101PFW3-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of HSD101PFW3-A00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
