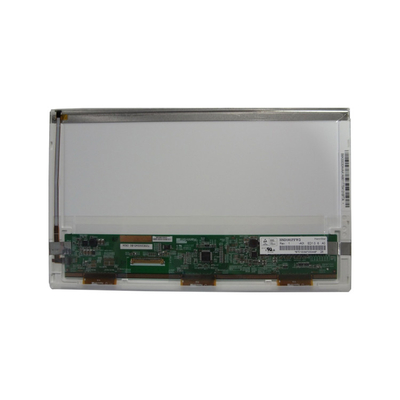

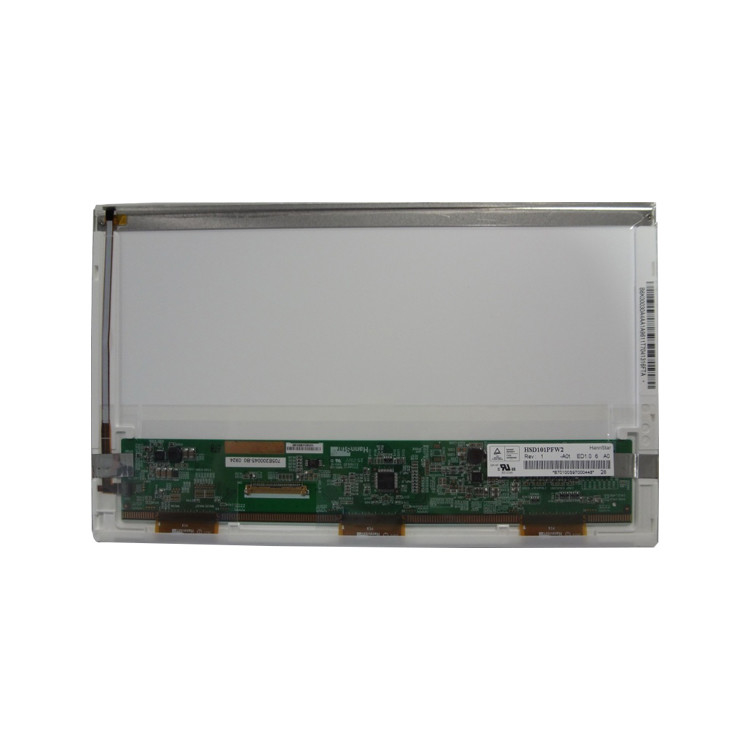

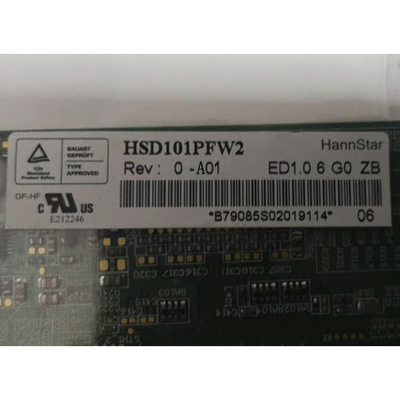

10.1 inch LCD panel HSD101PFW2-A01 support 1024*600 Resolution LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PFW2-A01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD101PFW2-A01 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 225.72(W)×128.26(H) Mm | Outline(mm): | 235(W)×143(H)×5.2(D) |
| Treatment: | Glare (Haze 0%), Hard Coating (3H) | Light Source: | WLED [24 Pcs] , 10K Hours , With LED Driver |
| Application: | Netbook PC / Digital Photo Frame / Portable DVD Player | Signal Type: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description
10.1 inch LCD panel HSD101PFW2-A01 support 1024*600 Resolution LCD screen
HSD101PFW2-A01 LCD Panel Product details :
| HannStar LCD Screen HSD101PFW2-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101PFW2-A01 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 225.72(W)×128.26(H) mm |
| Outline Dim. | 235(H)×143(V) ×5.2(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED [24 pcs] , 10K hours , With LED Driver |
| Designed For | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 10.1 inch LCD panel HSD101PFW2-A01 support 1024*600 Resolution LCD screen | |
