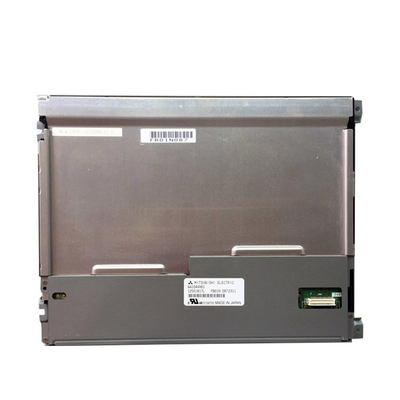

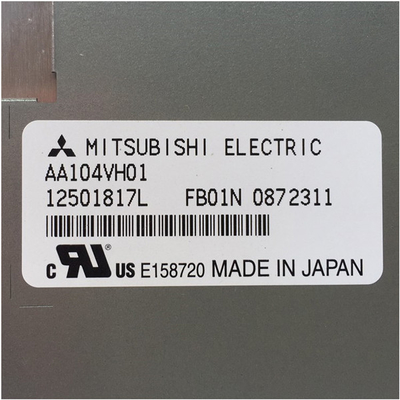

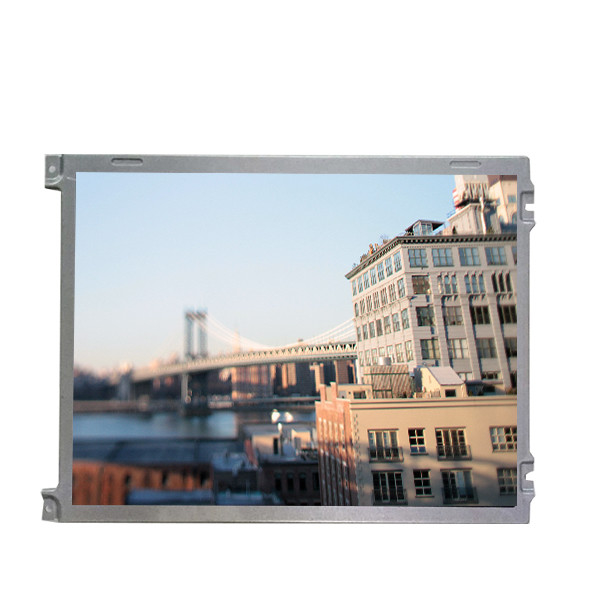

31 pins 640x480 MITSUBISHI 10.4 inch TFT LCD Module AA104VH01
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA104VH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA104VH01 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480 (VGA) 76PPI | Active Area: | 211.2 × 158.4 (H×V) |
| Outline Size: | 230 × 180.2 × 11 (H×V×D) | Contrast Ratio: | 700 : 1 (Typ.) (TM) |
| Viewing Angle: | 70/70/65/65 (Typ.)(CR≥10) | Response: | 4/12 (Typ.)(Tr/Td) Ms |
| Color Depth: | 262K 40% NTSC | Used For: | Industrial |
Product Description
31 pins 640x480 MITSUBISHI 10.4 inch TFT LCD Module AA104VH01
AA104VH01 LCD Panel Product details :
| Mitsubishi LCD SCREEN AA104VH01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA104VH01 |
| Screen Size | 10.4 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 76PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm) | 230 × 180.2 × 11 (H×V×D) |
| Bezel Area(mm) | 215.4 × 161.8 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 40% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 520g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

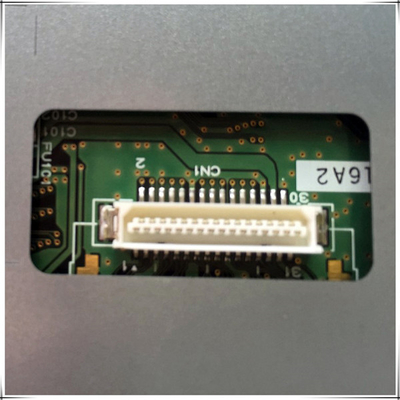

| Signal Type | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 31 pins 640x480 MITSUBISHI 10.4 inch TFT LCD Module AA104VH01 | |
AA104VH01 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
AA104VH01 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
AA104VH01 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
AA104VH01 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
AA104VH01 LCD Panel FAQ:
Q: How long will I receive my goods AA104VH01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of AA104VH01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of AA104VH01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of AA104VH01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
