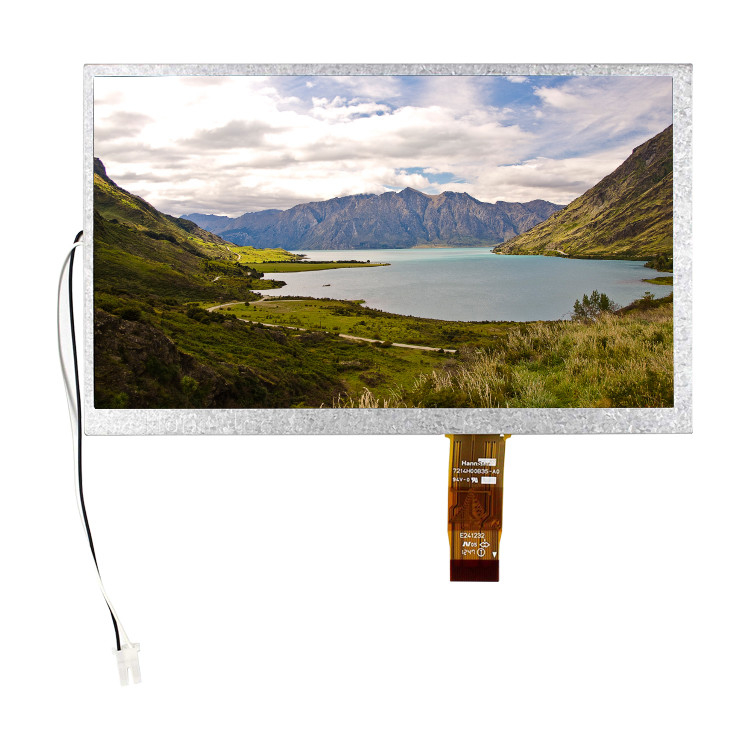

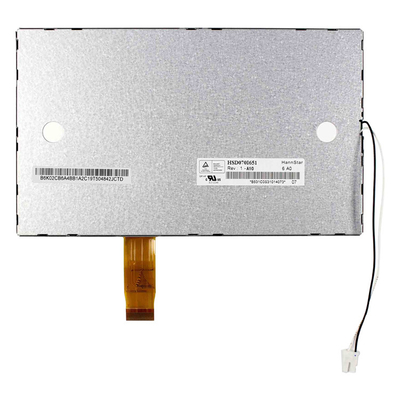

7.0 Inch TFT LCD Screen Display HSD070IDW1-A10 800*480 LCD Panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070IDW1-A10 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 153.6(W)×86.64(H) Mm |
| Bezel Opening: | 156.0(W)×89.04(H) Mm | Outline Dim.: | 165(W)×104(H)×5.4(D) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Weight: | 130g (Typ.) |
| Designed For: | Digital Photo Frame / Portable DVD Player | Interface Type: | TTL (1 Ch, 6/8-bit) 60 Pins FPC |
| High Light: | 7.0 Inch TFT LCD Screen Display,HSD070IDW1-A10,LCD Panel Module HSD070IDW1-A10 |
||
Product Description
7.0 inch tft lcd screen Display HSD070IDW1-A10 800*480 lcd Panel module HSD070IDW1-A10
HSD070IDW1-A10 LCD Panel Product details :
| HannStar LCD Screen HSD070IDW1-A10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070IDW1-A10 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | 156.0(W)×89.04(H) mm |
| Outline Dim. | 165(W)×104(H)×5.4(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M |
| Light Source | WLED [3S7P] , 20K hours , W/O Driver |
| Weight | 130g (Typ.) |
| Designed For | Digital Photo Frame / Portable DVD Player |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6/8-bit) 60 pins FPC |
| Power Supply | 3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 7.0 inch tft lcd screen Display HSD070IDW1-A10 800*480 lcd Panel module HSD070IDW1-A10 | |
HSD070IDW1-A10 LCD Panel Description:
The HSD070IDW1-A10 LCD Panel serves as a reliable solution for addressing various screen-related issues, offering a means to repair screens that are experiencing problems. This component is not only capable of rectifying common issues such as display problems, dead pixels, cracked LCD screens, and incorrect color rendering, but it also comes with a series of quality assurances that make it a dependable choice for screen restoration.
Key Features:
Comprehensive Testing: Before being dispatched, each individual LCD Panel is subjected to a comprehensive testing process. This meticulous evaluation guarantees that the product meets the highest standards of performance and reliability.
Multi-Functional Repair: The HSD070IDW1-A10 LCD Panel has the capacity to address an array of screen-related malfunctions. It is adept at resolving issues ranging from minor inconveniences like dead pixels to more serious concerns such as cracked LCD screens and display irregularities.
100% Operational Assurance: Customers can be confident in the operational capabilities of each LCD Panel they receive. Each unit is verified to be in full working order before it is shipped out.
Shipping Information:
For customers selecting the Expedited International Shipping or Standard Shipping options from outside the US, we utilize the services of DHL to ensure timely and secure delivery. It is essential to ensure the accuracy of your provided address and phone number to facilitate smooth delivery. In the case of orders being shipped to Brazil, it is mandatory to provide your CPF/CNPJ/VAT information for customs clearance purposes.
Tax Responsibility:
As a responsible buyer, it is important to note that taxes, VAT, and any additional hidden charges are not included in the price of the product. These charges are the buyer's responsibility and should be accounted for separately. We believe in transparency and want to ensure that you have a complete understanding of your financial obligations related to the purchase.
HSD070IDW1-A10 LCD Panel Shipping and Package :
HSD070IDW1-A10 LCD Panel Shipping Information :
When it comes to the shipping of the HSD070IDW1-A10 LCD Panel, we want to provide you with a transparent overview of our process.
Here are the key points to note:
Stringent Testing: Prior to shipping, each HSD070IDW1-A10 LCD Panel undergoes rigorous testing to ensure its quality and functionality. This testing process is an integral part of our commitment to delivering products of the highest standard.
Shipping Timeframe: Once your payment is received, we strive to promptly process your order. Generally, we aim to ship the product within 1-3 working days. This efficient turnaround time ensures that you receive your order as swiftly as possible.
Shipping Duration: The actual shipping duration can vary depending on your location. On average, it may take between 7 to 30 days for your order to reach you. However, please note that these estimates are approximate and can differ based on the specific destination country.
HSD070IDW1-A10 LCD Panel Replacement and Exchange Policy :
We offer a comprehensive replacement and exchange policy for the HSD070IDW1-A10 LCD Panel. Here are the key details:
Timeframe for Replacement/Exchange: You have the option to exchange or replace the item within 30 days from the date of receiving it.
Shipping Costs: In case of a return or exchange, the buyer will be responsible for covering the associated shipping costs.
Condition of the Item: To be eligible for an exchange or replacement, the item you wish to return must be in the same condition as it was when initially dispatched by us.
HSD070IDW1-A10 LCD Panel FAQ:
Q: If I place order now,when will you ship the goods of HSD070IDW1-A10 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of HSD070IDW1-A10 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How to make payment of HSD070IDW1-A10 ?
A: We accept T/T , Paypal , western union .
