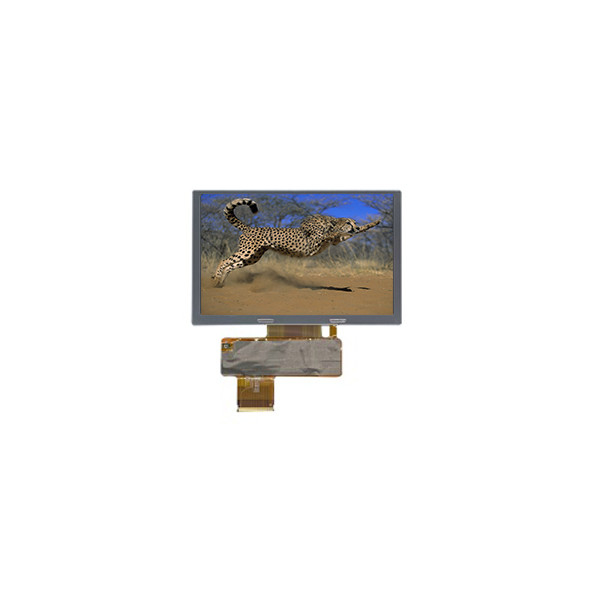

Original TIANMA LCD Screen Display Panel 5.5 Inch TM055YDH02
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM055YDH02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM055YDH02 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 480(RGB)×854, FWVGA 179PPI | Active Area: | 68.04(W)×121.05(H) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Outline(mm): | 72.24(H)×131.9(V)×2.1(D) Mm |
| View Direction: | 6 O'clock | Backlight: | WLED [6S2P], W/O Driver |
| Interface Type: | MIPI (2 Data Lanes), 24 PinsFPC | Used For: | Mobile Phone |
| Highlight: | HannStar LCD Screen Display Panel,HSD043I9W1-A00 LCD Screen Display Panel,HannStar LCD Display Module |
||
Product Description
Original TIANMA LCD Screen Display Panel 5.5 Inch TM055YDH02
TM055YDH02 Product details :
| Brand | TIANMA |
| Model P/N | TM055YDH02 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×854, FWVGA 179PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×121.05(H) mm |
| Bezel Opening | - |
| Outline Dim. | 72.24(H)×131.9(V)×2.1(D) mm |
| Treatment | - |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 60%NTSC |
| Light Source | WLED [6S2P], W/O Driver |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (2 data lanes), 24 pinsFPC |
| Power Supply | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| Environment | Operating Temperature: -30 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
TM055YDH02 Product Quality Assurance:
We take pride in assuring the quality of our products. Before any item is dispatched to the buyer, our engineers conduct thorough testing to ensure its functionality and performance. Only when the item passes all quality checks and is confirmed to be in perfect working condition, it is then sent to the buyer.
Our commitment to delivering original, new products means that you can have confidence in the authenticity and quality of the items you purchase from our store. We understand the importance of providing reliable and trustworthy products to our customers.
By conducting rigorous testing and quality assurance procedures, we aim to eliminate any potential issues or defects before shipping. This ensures that you receive a high-quality product that meets your expectations.
TM055YDH02 Shipping and Package :
TM055YDH02 Shipment:
Once you have placed an order, please select a preferred shipping method and make the necessary payment, which should include the shipping fee. We will process and dispatch your items within 3 days of receiving your completed payment.
It's important to note that while we strive to provide prompt delivery, we cannot guarantee specific delivery times for international shipments. The customs clearance process varies in different countries and can impact the speed at which your product is inspected and released.
Factors such as customs regulations, import duties, and other clearance procedures are beyond our control and may cause delays in the delivery of your order. We appreciate your understanding in this matter.
TM055YDH02 Warranty and Return:
We offer a warranty for all of our products. Our warranty ensures that if any issues arise with the purchased item within a specified period, we will repair or replace it free of charge.
When returning an item, the buyer is responsible for covering the shipping costs, regardless of whether the item is defective or non-defective. This includes the cost of shipping the item back to us for inspection and any subsequent return shipment if approved.
Return items should be in the same good condition as when we sent them and should not be damaged. We reserve the right to refuse returns if the item shows signs of damage or misuse that occurred after it was delivered to the buyer.
All returned items are subject to approval by our team. To ensure a successful return, the item should be returned in its original packaging, as we initially sent it. This helps protect the item during transit and ensures that all necessary components are included.
If you receive an item that is physically damaged, it is important to report this to us within 2 days of receiving the package. We will provide instructions on how to proceed with the return or exchange of the damaged item.
For returns that are not the seller's mistake (e.g., purchasing the wrong item), a 15% re-stocking fee will be applied. Additionally, please note that shipping and handling charges are non-refundable in such cases. It is important to double-check your purchase and ensure that it aligns with your requirements before completing the transaction.
TM055YDH02 FAQ:
Q: Can I pay my order of TM055YDH02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of TM055YDH02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TM055YDH02 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
