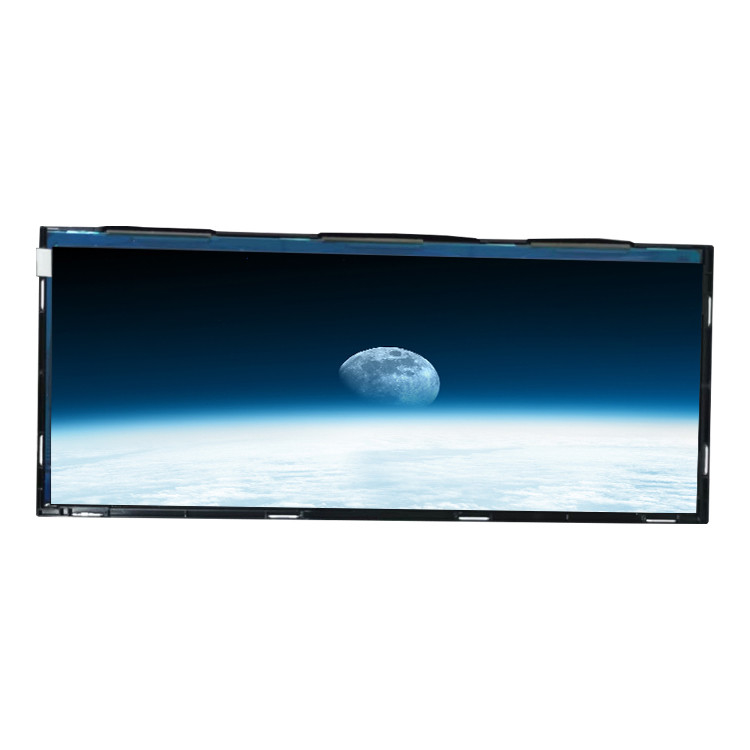

HSD103JPW2-E21 TFT LCD Screen Display Panel For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD103JPW2-E21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD103JPW2-E21 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 200PPI | Active Area: | 243.648(W)×91.368(H) Mm |
| Bezel Opening: | 246.7(W)×94.4(H) Mm | Outline Dim.: | 260(H)×110(V) ×10.6(D) Mm |
| Luminance: | 1385 Cd/m² (Typ.) | Response Time: | 25 (Max.)(Tr+Td) |
| Weight: | 281g (Typ.) | Designed For: | Outdoor High Brightness / Automotive Display |
| High Light: | TFT LCD Screen Display Panel,Automotive Display LCD Screen Display Panel,HSD103JPW2-E21 TFT LCD Module |
||
Product Description
HSD103JPW2-E21 TFT LCD Screen module for Automotive Display
HSD103JPW2-E21 Product details :
| HannStar LCD Screen HSD103JPW2-E21 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD103JPW2-E21 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.648(W)×91.368(H) mm |
| Bezel Opening | 246.7(W)×94.4(H) mm |
| Outline Dim. | 260(H)×110(V) ×10.6(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 1385 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 89% NTSC |
| Light Source | WLED [4 strings] , 20K hours , W/O Driver |
| Weight | 281g (Typ.) |
| Designed For | Outdoor High Brightness / Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 60 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HSD103JPW2-E21 TFT LCD Screen module for Automotive Display | |
HSD103JPW2-E21 NOTE:
Thank you for your purchase! We want to clarify our policy regarding the items included in your order. We value your business and want to ensure that you have a clear understanding of what you will be receiving.
When you make a purchase, you will only receive the item that you have paid for, as indicated in the listing and pictured. We do not include any additional items such as free tape, adhesive, installation guide, or any other type of freebie unless explicitly stated in the listing.
While we appreciate your support as a customer, it's important to note that as a business, we cannot provide additional items for free. Our pricing is based on the cost of the specific item you have selected, and we strive to offer fair and competitive prices to all our customers.
If you have any questions or need further clarification about the contents of your order, please don't hesitate to reach out to our customer service team. We are here to assist you and ensure your satisfaction with your purchase.
HSD103JPW2-E21 Payment:
We prioritize customer convenience and offer a wide range of payment options to suit your preferences. In addition to PayPal, Western Union remittance, and bank transfer, we also accept payments through the Alibaba platform, ensuring a seamless and secure transaction process.
With our secure payment processor PayPal, you can confidently use all major credit cards for your purchases. Our encrypted payment gateway guarantees the safety of your personal and financial information.
Should you encounter any difficulties with the payment process, our dedicated customer support team is ready to assist you. Feel free to contact us, and we will promptly address any payment-related issues or concerns you may have.
We understand that flexibility is key when it comes to payments, and we strive to provide a hassle-free experience for our customers. If you require an alternative payment method or have specific requirements, please let us know, and we will do our best to accommodate your needs.
HSD103JPW2-E21 Shipping and Package :
HSD103JPW2-E21 Shipping:
All items are in stock and will be dispatched to you within 3 days after your payment has been received.
Please be aware that items purchased during holidays will be dispatched on the next working day.
If you have not received your goods within 30 working days after making the payment, please contact us. We will track the parcel through our agent and provide you with a prompt reply.
You have the option to choose from various shipping methods, such as China Post, ePacket, EMS, DHL, UPS, and more. You can select the one that best suits your needs.
HSD103JPW2-E21 FAQ:
Q: How long will I receive my goods HSD103JPW2-E21 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of HSD103JPW2-E21 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of HSD103JPW2-E21 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
