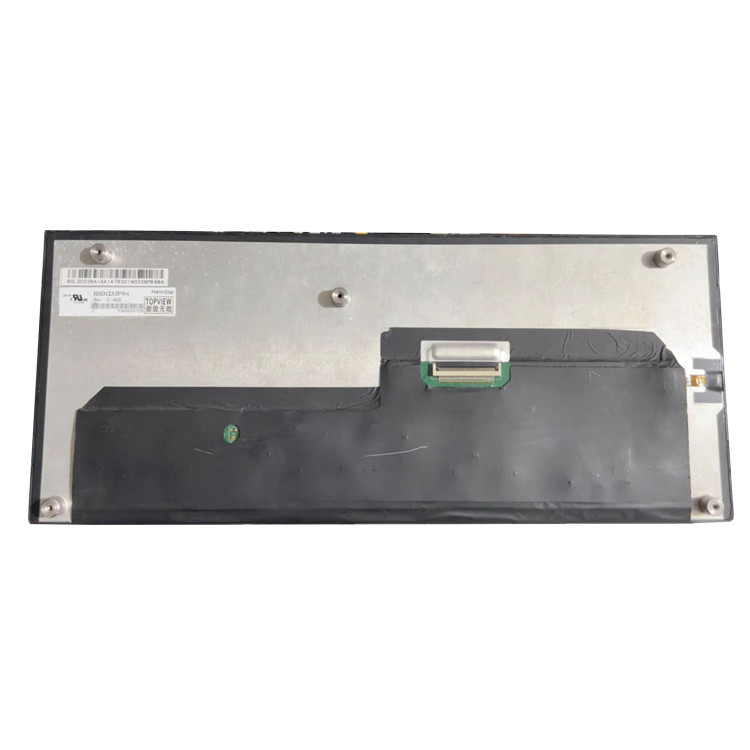

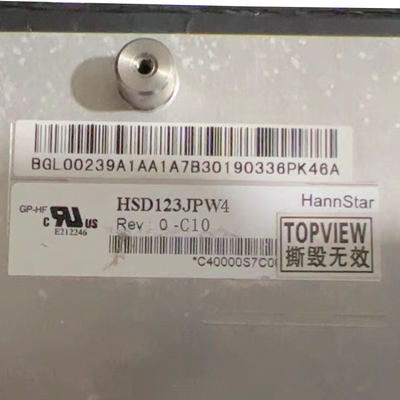

12.3 Inch 1920x720 HSD123JPW4-C10 Stretched Bar Display TFT LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123JPW4-C10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD123JPW4-C10 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Outline Size: | 299(W)×122.1(H)×14(D) Mm | Treatment: | Glare (Haze 0%), Hard Coating (3H) |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Work Mode: | IPS Pro, Normally Black, Transmissive |
| Mass: | 395g (Max.) | Used For: | Outdoor High Brightness / Automotive Display |
| High Light: | Stretched Bar LCD Touch Panel Display,HSD123JPW4-C10 LCD Touch Panel Display,12.3inch Stretched Bar Display |
||
Product Description
12.3 Inch 1920x720 HSD123JPW4-C10 Stretched Bar Display TFT LCD Screen Panel
HSD123JPW4-C10 Product details :
| HannStar LCD Screen HSD123JPW4-C10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD123JPW4-C10 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Outline Size | 299(W)×122.1(H)×14(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Color Depth | 16.7M 73% NTSC |
| Backlight | WLED , 30K hours , No Driver |
| Mass | 395g (Max.) |
| Used for | Outdoor High Brightness / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, SPI |
| Signal Type | LVDS (2 ch, 8-bit) , 60 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 12.3 Inch 1920x720 HSD123JPW4-C10 Stretched Bar Display TFT LCD Screen Panel | |
HSD123JPW4-C10 NOTE:
Please carefully check the product dimensions and specifications provided in the description before making a purchase to ensure it meets your requirements.
The manual measurement may result in slight variations in size, so please consider the stated measurements as approximate.
It is important to note that the colors of the item displayed on different monitors may vary slightly. The actual color of the product may differ from what you see on your screen due to variations in monitor settings and lighting conditions.
We strive to provide accurate product images that represent the item as closely as possible. However, please be aware that the picture is for reference only and the actual product may slightly differ in appearance.
If you have any concerns or questions regarding the size, color, or any other aspect of the item, please feel free to contact our customer service team before placing your order. We will be happy to assist you and provide any additional information you may need.
We understand that every customer's perception of color may vary, so we recommend referring to the product description for detailed information about the item's color, material, and texture.
We make every effort to accurately describe and represent our products, but please note that slight variations in measurements and color are inevitable due to the nature of manufacturing and individual monitor settings.
We appreciate your understanding and patience regarding possible minor discrepancies in size and color. We are committed to providing you with the best shopping experience and ensuring your satisfaction with our products.
HSD123JPW4-C10 Shipping and Package :
HSD123JPW4-C10 Return Terms:
When returning an item, please ensure that it is in its original packaging and in unused condition. Any signs of wear or damage may result in a refusal of the return or a deduction from the refund amount.
It is recommended to use a reliable shipping method with tracking and insurance when returning the item. We cannot be held responsible for any lost or damaged packages during the return process.
Refunds will be processed within 7 business days upon receiving the returned item. The refund will be issued through the same payment method used for the original purchase.
In case of a replacement, we will ship the new item to you as soon as we receive the returned product and verify its condition.
If you have any concerns or questions regarding the return process, please contact our customer service team. We will be glad to assist you and provide further instructions.
HSD123JPW4-C10 Contact Us:
Thank you for reaching out to us. We value your business and are here to assist you. If you have any questions, concerns, or need further assistance, please don't hesitate to contact us. Our dedicated customer service team is available to help you.
You can reach us by:
Email: [darian@yongs-hk.com]. We strive to respond to all emails within 24 hours on workdays.
Phone: [+86-13352789627]. Our customer service representatives are available during business hours [insert business hours].
Live Chat: Visit our website and click on the live chat option to chat with a representative in real-time. Our chat support is available during business hours [Beijing time: Monday to Saturday; 9am to 6pm].
Please provide us with detailed information regarding your query or concern, including any relevant order numbers or account details. This will enable us to assist you more efficiently.
We appreciate your patience and look forward to serving you. Your satisfaction is important to us, and we will make every effort to address your inquiries promptly. Thank you for choosing us as your preferred service provider.
HSD123JPW4-C10 FAQ:
Q: If I place order now,when will you ship the goods of HSD123JPW4-C10 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of HSD123JPW4-C10 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of HSD123JPW4-C10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
