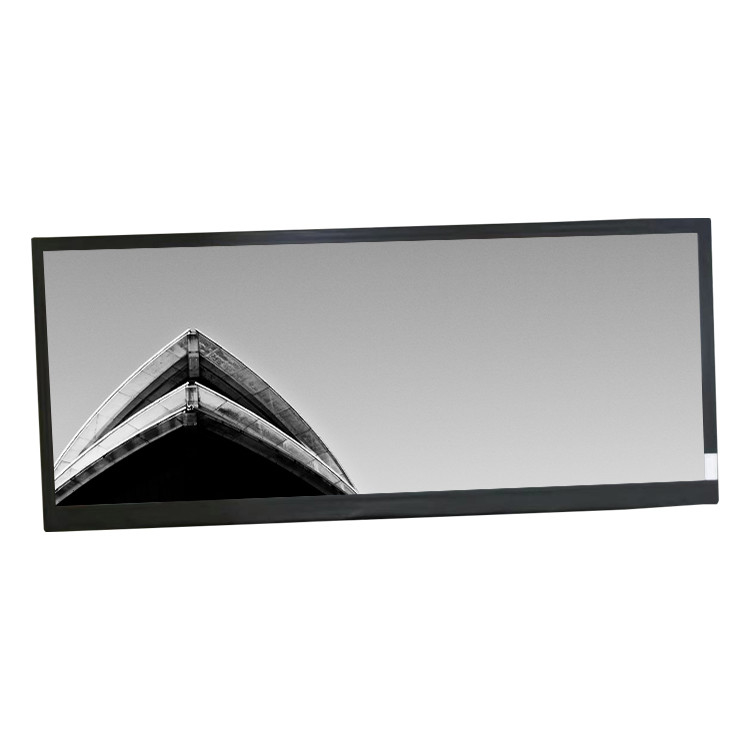

10.3 Inch HannStar HSD103JPW1-D10 LCD TFT Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD103JPW1-D10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD103JPW1-D10 | Diagonal Size: | 10.3" |
|---|---|---|---|
| Resolution: | 1280(RGB)×480 133PPI | Active Area: | 243.84(W)×91.44(H) Mm |
| Outline Size: | 258.4(W)×108.6(H) Mm | Brightness: | 1000 Cd/m² (Typ.) |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Display Mode: | IPS Pro, Normally Black, Transmissive |
| Signal Interface: | LVDS (1 Ch, 8-bit) , 60 Pins FPC | Application: | Outdoor High Brightness / Automotive Display |
| High Light: | 10.3inch LCD Screen Display Panel,HSD103JPW1-D10 LCD Screen Display Panel,133PPI TFT Display Screen |
||
Product Description
10.3 inch HannStar HSD103JPW1-D10 LCD TFT Display Screen
HSD103JPW1-D10 Product details :
| HannStar LCD Screen HSD103JPW1-D10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD103JPW1-D10 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×480 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.84(W)×91.44(H) mm |
| Outline Size | 258.4(W)×108.6(H) mm |
| Surface | Glare (Haze 0%), Hard coating |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 40 (Max.)(Tr+Tf) |
| Display Colors | 16.7M 75% NTSC |
| Lamp Type | 4 strings WLED , 20K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Outdoor High Brightness / Automotive Display |
| Signal Interface | LVDS (1 ch, 8-bit) , 60 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 10.3 inch HannStar HSD103JPW1-D10 LCD TFT Display Screen | |
HSD103JPW1-D10 Packing:
The outer packing being a strong carton provides a sturdy and durable layer of protection for the contents inside. This helps prevent any damage that may occur during handling and transportation.
Additionally, the use of foam as inner packing further enhances the safety of the items. Foam is known for its cushioning properties, which helps absorb shocks and impacts that may be encountered during transit. By using foam as inner packing, you provide an additional layer of protection to safeguard the items from potential breakage.
Overall, the combination of a strong carton for the outer packing and foam for the inner packing ensures that your products are well-protected and minimizes the risk of any damage occurring during transportation.
HSD103JPW1-D10 Shipping and Package :
HSD103JPW1-D10 Shipment:
To ensure the quality of the panel, it undergoes a thorough check and testing process before it is shipped. This ensures that you receive a fully functional product that meets your expectations.
Once we receive your order, we will handle it within 3-5 business days, excluding weekends and holidays. During this time, we will prepare the package and arrange for its shipment. We strive to process orders as quickly as possible to minimize any delays.
International shipping typically takes between 10 and 45 business days. However, please keep in mind that the exact delivery time can vary depending on various factors such as customs clearance procedures, distance, and local postal services. If you do not receive the parcel within a reasonable timeframe, please contact us so that we can investigate the matter and provide you with an update on the status of your shipment.
For customers who require their items urgently, we offer Expedited International Shipping options such as FedEx, UPS, or DHL. These services come with an additional fee, but they ensure faster delivery times compared to standard shipping. If you need your item to be delivered quickly, please let us know, and we will provide you with the available expedited shipping options and their associated costs.
Please note that customs duty fees may apply to your order. As the buyer, it is your responsibility to be aware of and cover any applicable customs duties or import taxes associated with the shipment. These fees are imposed by the customs authorities of your country and are not included in the purchase price or shipping charges. We recommend checking with your local customs office to determine the specific duties or taxes that may apply to your order.
HSD103JPW1-D10 Return & Refund:
We understand the importance of ensuring customer satisfaction, and we strive to provide accurate descriptions and images of our products. Before placing a bid or making a purchase, we strongly encourage you to carefully read the item description and examine the accompanying pictures. This will help you make an informed decision and have a clear understanding of the product you are interested in.
In the event that the item you receive is broken, does not match the description, or fails to perform its intended function, we offer both refund and return options.
If the item arrives in a broken or damaged condition, please contact us immediately. We will guide you through the necessary steps to initiate a refund or return process. To ensure a smooth return experience, it is important to keep all original packaging materials and return the item in good condition.
For cases where the item does not match the description or fails to perform as expected, we also offer refund or return options. Please get in touch with us as soon as possible, providing specific details about the issue you have encountered. We will work with you to find a satisfactory resolution, whether it involves a refund or the return of the item.
When returning an item, it is essential to ensure that all original packaging materials are included and that the item is in good condition. This helps us assess the issue accurately and process your return or refund request promptly.
Please note that the specific return and refund policies may vary depending on the product and the terms and conditions of our company. We recommend reviewing our complete return and refund policy, which can usually be found on our website or provided upon request.
HSD103JPW1-D10 FAQ:
Q: How long is the warranty of HSD103JPW1-D10 ?
A: 90 days warranty .
Q: How can I trace my order of HSD103JPW1-D10 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods HSD103JPW1-D10 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods HSD103JPW1-D10 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
