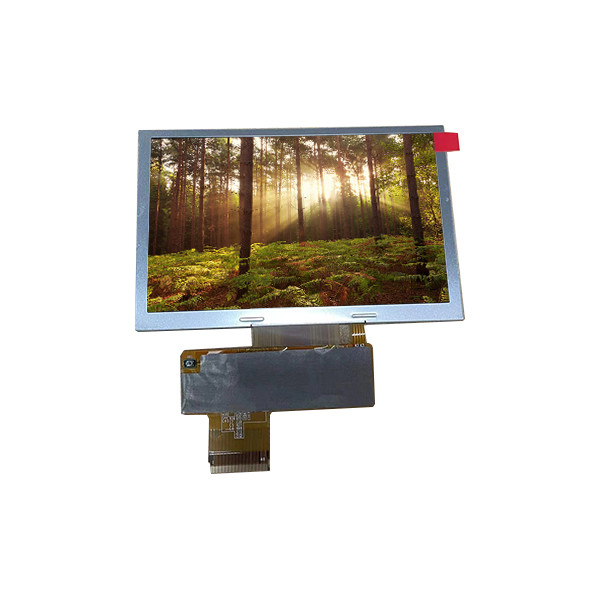

TIANMA Lcd Screen TM050RDZG03-00 5.7 Inch 800*480 Display Monitors
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM050RDZG03-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM050RDZG03-00 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480 (WVGA) 188PPI | Active Area: | 108 × 64.8 (H×V) |
| Outline Dim.: | 120.7(W)×77.8(H) ×5.9(D) Mm | Luminance: | 1000cd/m² (Typ.) |
| Response Time: | 20/30 (Typ./Max.)(Tr+Td) | Viewing Angle: | 70/70/5080/80/70/80 (Typ.)(CR≥10)70 (Typ.)(CR≥10) |
| Support Color: | 16.7M 50% NTSC | Designed For: | Industrial |
| High Light: | Industrial LCD Panel Display,5.7 Inch Industrial LCD Panel Display,TM050RDZG03-00 LCD Display Monitors |
||
Product Description
TIANMA lcd screen TM050RDZG03-00 5.7 inch 800*480 display monitors
TM050RDZG03-00 Product details :
| TIANMA LCD SCREEN TM050RDZG03-00 | |
| Brand | TIANMA |
| Model Name | TM050RDZG03-00 |
| Diagonal Size | 5.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480, WVGA, 188PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 108(W)×64.8(H) mm |
| Outline Dim. | 120.7(W)×77.8(H) ×5.9(D) mm |
| Visual size | 111.1(W)×67.9(H) mm |
| Treatment | Antiglare |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast | 750:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissiv |
| Viewing angle | 80/80/70/80 (Typ.)(CR≥10) |
| Responding time | 20/30 (Typ./Max.)(Tr+Td) |
| Number of color | 16.7M 50% NTSC |
| Backlight type | 3S6P WLED , 50K hours |
| Weight | TBD |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| TIANMA lcd screen TM050RDZG03-00 5.7 inch 800*480 display monitors | |
