R190EFE-L62 Innolux 19.0 Inch Monitor Lcd Panel For Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R190EFE-L62 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R190EFE-L62 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.3(W)×305.0(H) Mm | Outline Dim.: | 396(W)×324(H) Mm |
| Brightness: | 330 Cd/m² (Typ.) | Light Source: | WLED , 50K Hours , With LED Driver |
| Weight: | 2.11/2.33Kgs (Typ./Max.) | Designed For: | Medical Imaging |
| High Light: | Monitor Medical LCD Panel,R190EFE-L62 Medical LCD Panel,Medical Imaging Monitor Lcd Panel |
||
Product Description

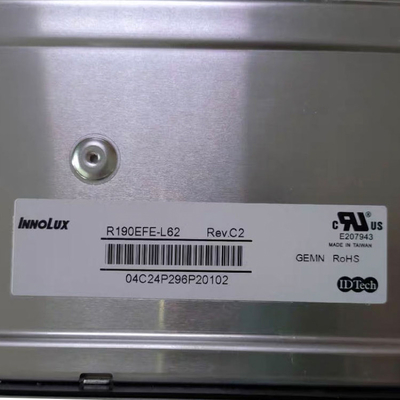

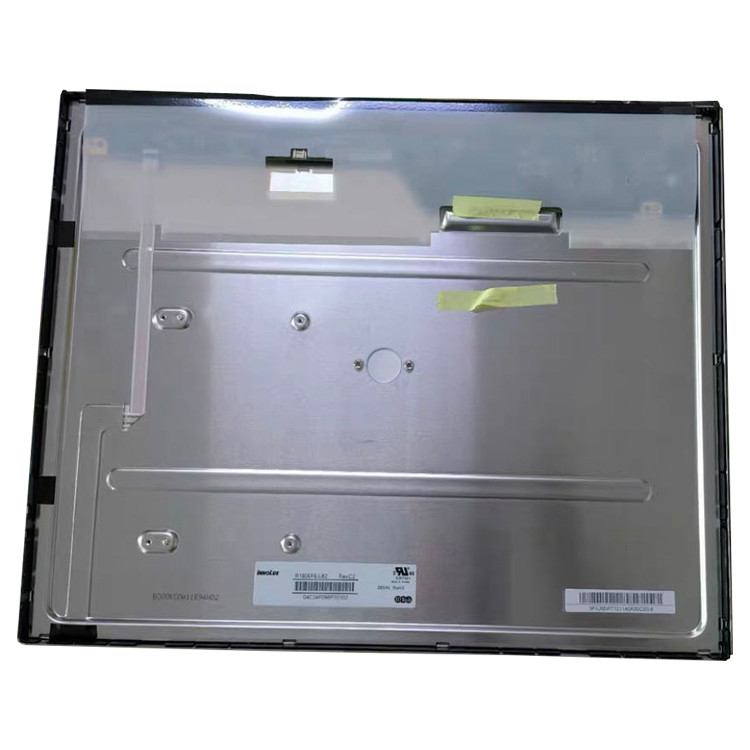

R190EFE-L62 Innolux 19.0 inch monitor lcd panel for Medical Imaging
R190EFE-L62 Product details :
| Innolux LCD Screen R190EFE-L62 | |
|---|---|
| Brand | Innolux |
| Model P/N | R190EFE-L62 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.3(W)×305.0(H) mm |
| Outline Dim. | 396(W)×324(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 330 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 15/15 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | DD-IPS, Normally Black, Transmissive |
| Support Color | 16.7M 71% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | 2.11/2.33Kgs (Typ./Max.) |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| R190EFE-L62 Innolux 19.0 inch monitor lcd panel for Medical Imaging | |
R190EFE-L62 Shipping and Package :
R190EFE-L62 Buyer Tips:
If you have an urgent order and require fast delivery, we recommend choosing EMS Express, which includes reputable shipping carriers such as DHL, FedEx, TNT, UPS, and more. Here are some important details to consider:
Expedited Delivery:
EMS Express services are known for their expedited delivery options. By selecting this shipping method, you can typically expect to receive your order within 3-10 days, depending on the destination. This faster delivery time frame ensures that your urgent order reaches you promptly.
Reputable Shipping Carriers:
EMS Express includes renowned shipping carriers such as DHL, FedEx, TNT, UPS, and other reliable providers. These companies have established a strong reputation for their efficiency, reliability, and global coverage. By leveraging their services, we can offer you a reliable and expedited delivery solution.
Additional Costs:
Please note that expedited shipping services typically involve higher costs compared to standard shipping methods. The exact shipping cost will depend on various factors such as the destination, package weight, and dimensions. During the checkout process, you will have the opportunity to review the available shipping options and associated costs.
Order Processing Time:
To ensure timely delivery, we strive to process and fulfill urgent orders as quickly as possible. However, please keep in mind that order processing time may vary depending on factors such as product availability and order volume. We recommend contacting our customer service team or referring to the product page for estimated processing times.
Tracking and Updates:
With EMS Express and other expedited shipping services, you can benefit from comprehensive tracking and regular updates on the status of your shipment. This allows you to monitor the progress of your order and have peace of mind throughout the delivery process.
We understand the importance of meeting your urgent requirements, and EMS Express provides an efficient solution for fast delivery. If you have any specific questions or need assistance regarding your order, please don't hesitate to contact our customer service team. We are here to help and ensure your satisfaction.
R190EFE-L62 Tips:
To ensure a smooth and satisfactory experience with your LCD screen purchase, please take note of the following important tips:
Document Unpacking: It is highly recommended to record a video while unpacking the package. This serves as valid evidence in case you receive a damaged LCD screen. By documenting the unpacking process, you can provide visual proof of any issues that may have occurred during transit.
Pre-Installation Testing: Before proceeding with the installation, we strongly advise testing the LCD screen. This step is crucial to ensure that the screen is in good working condition before installation. Testing the screen beforehand can help identify any potential defects or issues, allowing for prompt resolution.
Professional Installation: If you are not experienced or confident in replacing LCD screens, we recommend seeking assistance from a professional technician or a reputable repair shop. LCD screens are fragile and can easily break or malfunction due to installation errors. Professional expertise will help ensure a successful and damage-free installation.
Fragility of LCD Screens: LCD screens are delicate and require careful handling. Mishandling or incorrect installation can lead to damage or improper functionality. Take extra care to avoid applying excessive force or causing any undue stress to the screen during the installation process.
Thorough Testing and Inspection: We conduct rigorous testing on our LCD screens three times before shipment to ensure their quality. However, if you are unable to provide the video evidence of any defects, we cannot accept responsibility for installation mistakes. It is important to follow the recommended installation procedures and provide appropriate documentation if issues arise.
Return Policy for Defective Items: In the event that you receive a defective LCD screen, you have the option to return it to us. Upon receiving the defective item, we will send you a replacement. However, please ensure that the screen is in good condition before returning it, as we cannot accept responsibility for damages caused during the return shipment.
By following these tips, you can help ensure a smooth installation process and address any issues effectively. Should you have any questions or concerns, please don't hesitate to reach out to our customer service team. We are here to assist you and ensure your satisfaction with your LCD screen purchase.
R190EFE-L62 FAQ:
Q: Do you accept sample orders of R190EFE-L62 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of R190EFE-L62 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of R190EFE-L62 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of R190EFE-L62?
A: Of course!If you make a large order, we will give you a discount.
