6.2 Inch HSD062KDW1-E10 TFT LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD062KDW1-E10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD062KDW1-E10 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 150PPI | Active Area: | 137.52(W)×77.232(H) Mm |
| Outline Dim.: | 155.2(W)×90.2(H) Mm | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Response Time: | 2/6 (Typ.)(Tr/Td) | Operating Mode: | TN, Normally White, Transmissive |
| Light Source: | WLED | Designed For: | Automotive Display |
| High Light: | TFT LCD Screen Display Panel,6.2 Inch LCD Screen Display Panel,HSD062KDW1-E10 TFT LCD Screen |
||
Product Description

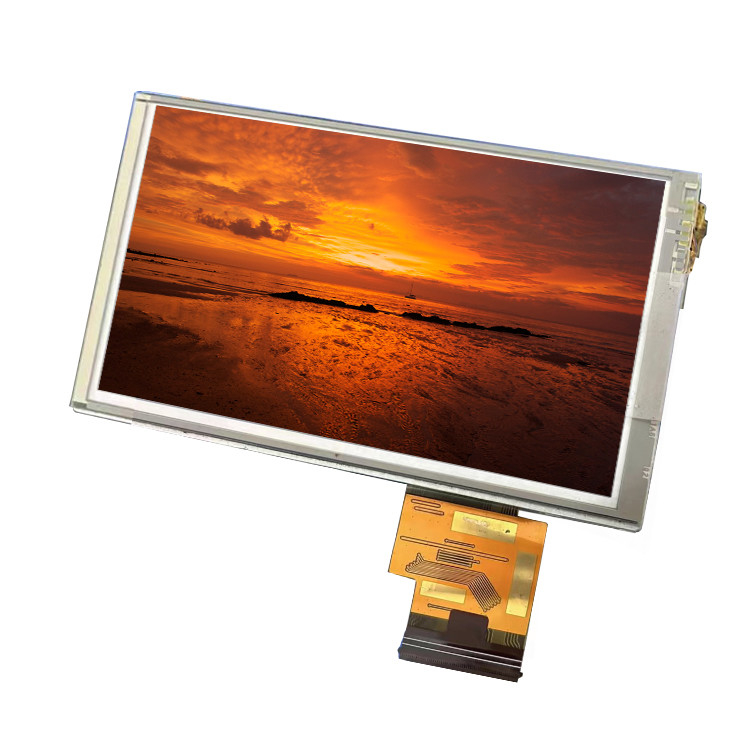

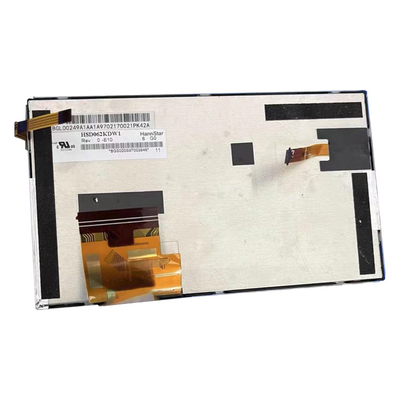

6.2 inch HSD062KDW1-E10 TFT LCD Screen display panel
HSD062KDW1-E10 Product details :
| HannStar LCD Screen HSD062KDW1-E10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD062KDW1-E10 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 150PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 137.52(W)×77.232(H) mm |
| Outline Dim. | 155.2(W)×90.2(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1100 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Environment | Operating Temperature: -20 ~ 80 °C ; Storage Temperature: -30 ~ 85 °C |
| 6.2 inch HSD062KDW1-E10 TFT LCD Screen display panel | |
The HSD062KDW1-E10 LCD screen is a display panel that offers a resolution of 800 (RGB) × 480 pixels. It is designed to provide clear and vibrant visuals for various applications. However, it's important to note that this particular LCD screen does not come with touch functionality.
With a resolution of 800 (RGB) × 480, this LCD screen delivers sharp and detailed images, making it suitable for a wide range of devices and systems. Whether it's used in industrial equipment, consumer electronics, or automotive displays, the screen ensures a satisfactory viewing experience.
While some LCD screens come with touch capability, the HSD062KDW1-E10 does not offer this feature. This means that it operates as a display-only module, without the ability to interact with the screen directly. However, it can still be integrated into devices that utilize external input methods such as buttons, keypads, or a separate touch panel.
The absence of touch functionality in the HSD062KDW1-E10 LCD screen may be beneficial in certain applications where touch input is not required or not feasible due to specific design considerations, cost constraints, or environmental factors.
HSD062KDW1-E10 payment:
Introduction:
At our company, we understand the importance of providing convenient and secure payment options for our customers. Whether you're purchasing goods or services, we offer multiple payment methods to accommodate your preferences. Our available payment options include PayPal, Western Union, bank transfer, and Alibaba platform payment. Let's explore each of these methods in detail.
PayPal:
PayPal is a widely recognized and trusted online payment platform that allows customers to make secure transactions worldwide. By linking your PayPal account to your bank account or credit card, you can easily make payments without sharing your financial information with sellers. We proudly accept PayPal as a payment method, ensuring a convenient and reliable payment experience for our customers.
Western Union:
Western Union is a well-established international money transfer service that enables quick and secure transactions across borders. With Western Union, customers can transfer funds electronically or visit a local agent to make a payment. This payment method is particularly beneficial for customers who prefer the flexibility and accessibility of a reliable money transfer service.
Bank Transfer:
Bank transfer, also known as wire transfer or telegraphic transfer, allows customers to make payments directly from their bank accounts to our designated account. This method offers a straightforward and secure way to transfer funds domestically or internationally. Bank transfers are suitable for customers who prefer a traditional payment method and value the direct transfer of funds between financial institutions.
Alibaba Platform Payment:
For customers who prefer using the Alibaba platform for their transactions, we offer Alibaba platform payment as an option. Alibaba Group is a renowned e-commerce company that provides a secure and efficient online payment system. By utilizing this platform, customers can complete their payments conveniently and benefit from the added security measures implemented by Alibaba.
Conclusion:
At our company, we strive to provide a seamless and customer-centric payment experience. Whether you choose PayPal, Western Union, bank transfer, or Alibaba platform payment, rest assured that your transactions will be handled securely and efficiently. We understand the importance of offering a variety of payment options to meet our customers' diverse needs. Please feel free to choose the method that suits you best, and we look forward to serving you with our trusted payment options.
HSD062KDW1-E10 Shipping and Package :
Introduction:
When it comes to transporting goods, efficient logistics and reliable transportation are vital. In the case of HSD062KDW1-E10, we have several transportation options available that ensure timely delivery within a timeframe of 7 to 15 days. However, it is important to note that there is an additional surcharge of $35 USD for remote areas. Let's explore the various transportation modes for HSD062KDW1-E10 and understand how they cater to different requirements.
Air Freight:
Air freight is a popular choice for time-sensitive shipments, offering fast delivery to various destinations around the world. When opting for air freight for HSD062KDW1-E10, the estimated delivery time falls within the 7-15 day range, depending on the specific location. However, it is essential to consider the remote area surcharge of $35 USD, which may apply if the destination is considered remote.
Sea Freight:
Sea freight is a cost-effective option for transporting goods over long distances. While it generally takes longer than air freight, it offers a reliable and economical solution for bulk shipments. When choosing sea freight for HSD062KDW1-E10, the estimated delivery time falls within the 7-15 day range, considering the time required for loading, transit, and unloading. Similar to air freight, a remote area surcharge of $35 USD may be applicable for certain destinations.
Road Transport:
For domestic or regional shipments, road transport is often the most convenient choice. It provides flexibility in terms of pick-up and delivery, ensuring efficient transportation within the specified timeframe. However, road transport options may vary depending on the location and infrastructure. The remote area surcharge of $35 USD applies here as well, if applicable.
Rail Transport:
Rail transport offers an alternative option for land-based shipments, particularly for destinations with well-developed railway networks. It combines the advantages of cost-effectiveness and reliability, making it an attractive choice for certain regions. The estimated delivery time for HSD062KDW1-E10 via rail transport falls within the 7-15 day range, with the remote area surcharge of $35 USD applicable if necessary.
Conclusion:
In conclusion, when considering transportation options for HSD062KDW1-E10, it is important to select the mode of transport that aligns with your specific requirements. Air freight offers the fastest delivery but comes with a higher cost, while sea freight provides an economical solution for bulk shipments. Road transport is convenient for domestic or regional deliveries, and rail transport can be a viable choice for destinations with well-developed railway networks. However, it is essential to account for the remote area surcharge of $35 USD, if applicable, to ensure a smooth and timely delivery process.
HSD062KDW1-E10 FAQ:
Q: How long is the warranty of HSD062KDW1-E10 ?
A: 90days warranty .
Q: How can I trace my order of HannStar HSD062KDW1-E10 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods HSD062KDW1-E10 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods HannStar HSD062KDW1-E10 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
