R190EFE-L53 Innolux 19.0 Inch TFT LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | R190EFE-L53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R190EFE-L53 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(LCR)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.3(W)×305.0(H) Mm | Outline(mm): | 396 × 324 × 25.6 (H×V×D) |
| Brightness: | 1400 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Mass: | 2.11/2.31Kgs (Typ./Max.) | Used For: | Medical Imaging |
| High Light: | Medical Imaging TFT LCD Screen,R190EFE-L53 TFT LCD Screen,R190EFE-L53 LCD Screen Display |
||
Product Description

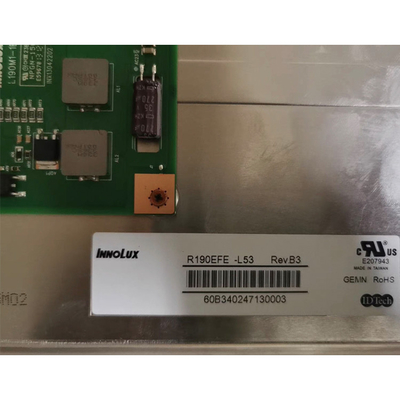

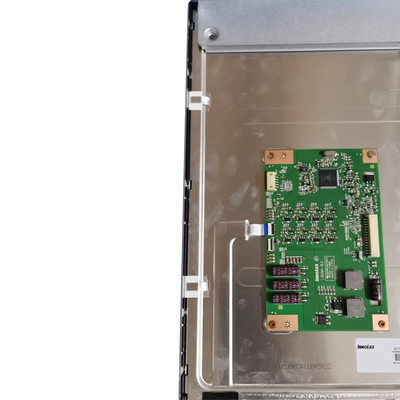

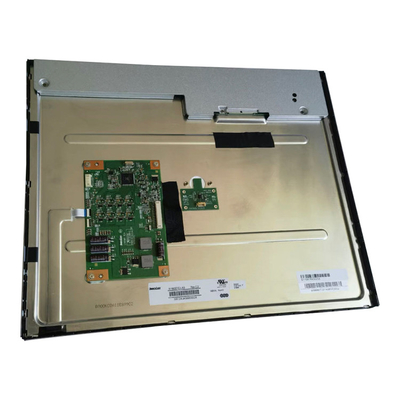

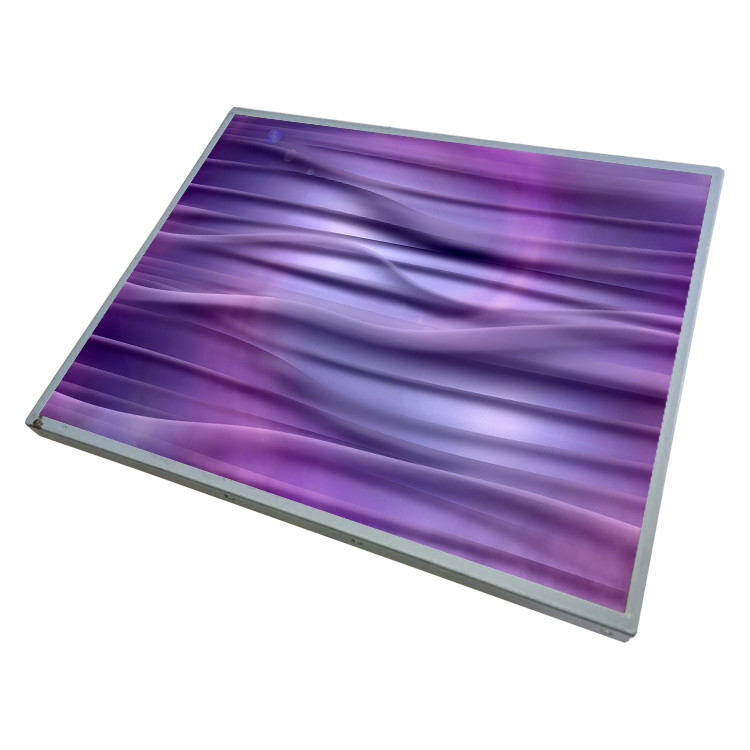

R190EFE-L53 Innolux 19.0 inch TFT LCD Screen Display
R190EFE-L53 Product details :
| Innolux LCD Screen R190EFE-L53 | |
|---|---|
| Brand | Innolux |
| Model P/N | R190EFE-L53 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(LCR)×1024, SXGA 86PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.3(W)×305.0(H) mm |
| Outline(mm) | 396 × 324 × 25.6 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 1400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 15/15 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | DD-IPS, Normally Black, Transmissive |
| Color Depth | Grayscale |
| Backlight | 4 strings WLED , 50K hours , With LED Driver |
| Mass | 2.11/2.31Kgs (Typ./Max.) |
| Used for | Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| R190EFE-L53 Innolux 19.0 inch TFT LCD Screen Display | |
R190EFE-L53 Shipping and Package :
R190EFE-L53 Shipment:
The panel will be 100% check and test before shipment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
R190EFE-L53 Return and Refund Policy:
Our company is committed to providing a seamless shopping experience, and we understand that sometimes issues may arise with the products you purchase. We offer a straightforward Return and Refund policy to ensure customer satisfaction. If the item you received is broken, not as described, or does not function as intended, you may be eligible for a refund or return. Here are the key details of our policy:
Eligibility for Refund or Return: You are eligible for a refund or return if:
The item arrived in a damaged or broken condition.
The item received does not match the description provided on our website.
The item does not perform its intended function as advertised.
Timeframe for Return or Refund: You must notify us of the issue within [3] days of receiving the item. Please contact our customer support team promptly to initiate the return or refund process.
Return Process: To initiate a return, you will need to follow these steps:
Contact our customer support team via email or phone and provide them with the relevant order details and a clear description of the issue.
Our customer support team will guide you through the return process, providing you with instructions on how to package and ship the item back to us.
It is essential to ensure that the item is securely packaged to prevent any further damage during transit.
Refund Process: Once we receive the returned item, our team will inspect it to verify the reported issue. If the item is deemed eligible for a refund, we will initiate the refund process. The refund will be issued using the original payment method used during the purchase. Please note that it may take [3] business days for the refund to reflect in your account, depending on your financial institution.
Exceptions: Please note that certain items may be non-returnable or non-refundable due to hygiene reasons, copyright restrictions, or other specified circumstances. Such exceptions will be clearly stated on the product page.
We strive to ensure that every customer is satisfied with their purchase, and we will work diligently to resolve any issues that arise. If you have any questions or concerns regarding our Return and Refund policy, please reach out to our customer support team for assistance.
Please note that this policy is subject to change without prior notice. We recommend reviewing the policy on our website or contacting our customer support team for the most up-to-date information.
Thank you for choosing our company, and we appreciate your trust in our products and services.
R190EFE-L53 FAQ:
Q: How long will I receive my goods R190EFE-L53 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of R190EFE-L53 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of R190EFE-L53 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of R190EFE-L53 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
