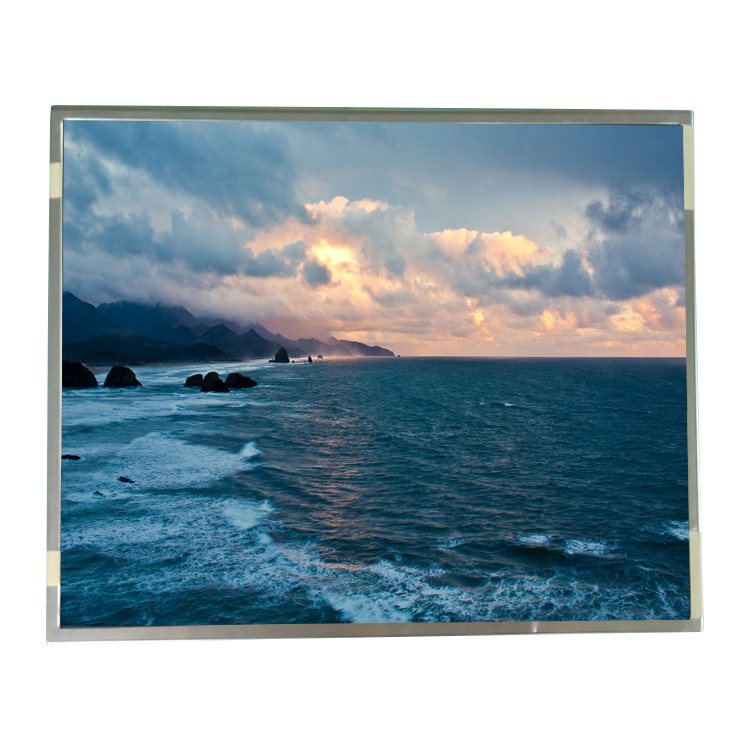

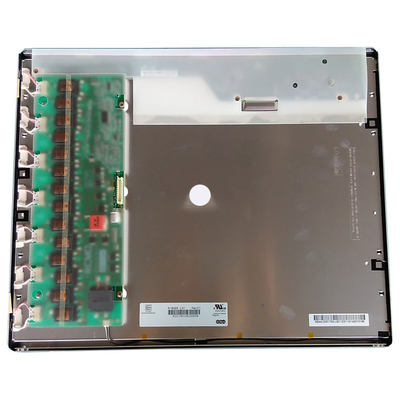

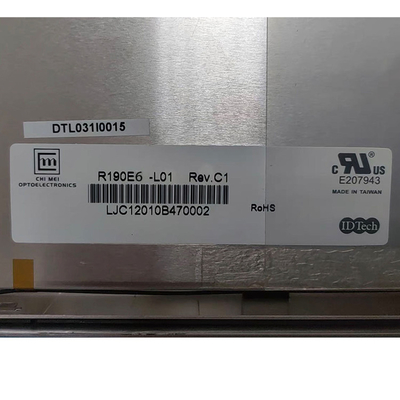

19.0 Inch R190E6-L01 LCD Display Screen For Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | R190E6-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R190E6-L01 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.3(W)×305.0(H) Mm | Outline(mm): | 396 × 324 × 37 (H×V×D) |
| Luminance: | 650 Cd/m² (Typ.) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Mass: | 1.70/1.80Kgs (Typ./Max.) | Used For: | Medical Imaging |
| Highlight: | R190E6-L01 Medical LCD Panel,SXGA 86PPI Medical LCD Panel,R190E6-L01 LCD Display Screen |
||
Product Description
19.0 inch R190E6-L01 LCD Display Screen for Medical Imaging
R190E6-L01 Product details :
| Chimei Innolux LCD Screen R190E6-L01 | |
|---|---|
| Brand | Chimei Innolux |
| Model P/N | R190E6-L01 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.3(W)×305.0(H) mm |
| Outline(mm) | 396 × 324 × 37 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 650 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥20) |
| Response | 15/10 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | DD-IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 100% sRGB |
| Backlight | 14 pcs CCFL , 50K hours , With Inverter |
| Mass | 1.70/1.80Kgs (Typ./Max.) |
| Used for | Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C |
| 19.0 inch R190E6-L01 LCD Display Screen for Medical Imaging | |
R190E6-L01 Features:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, dead pixels, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
R190E6-L01 Shipping and Package :
R190E6-L01 Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
R190E6-L01 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
R190E6-L01 FAQ:
Q: Do you accept sample orders of R190E6-L01 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of R190E6-L01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of R190E6-L01 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of R190E6-L01 ?
A: we will give you tracking number then you can trace your order from website.
