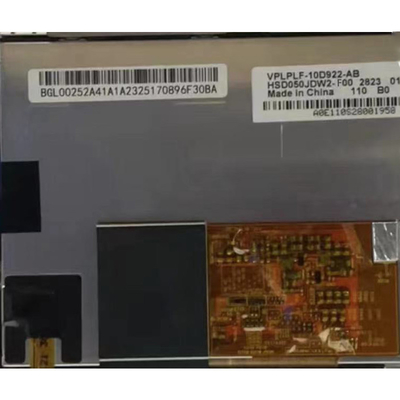

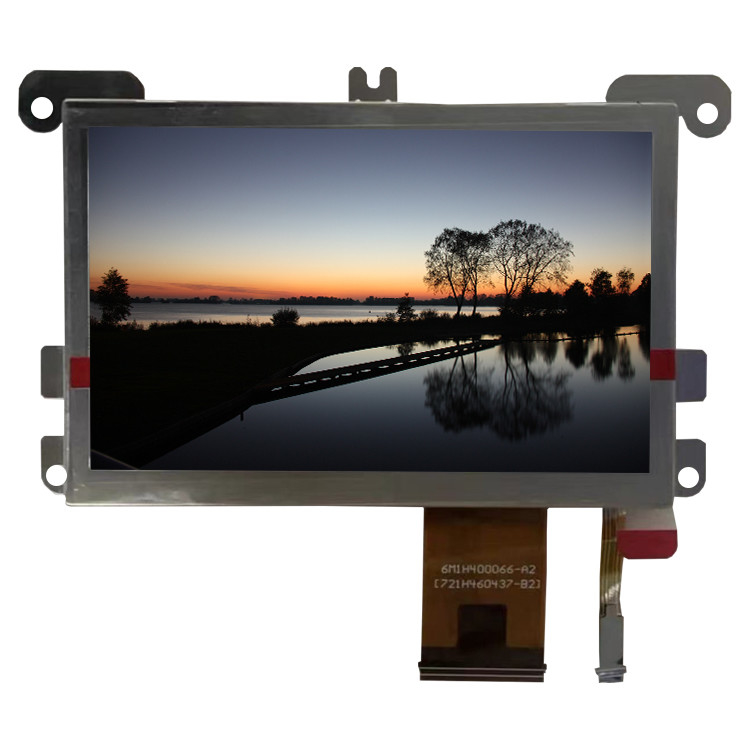

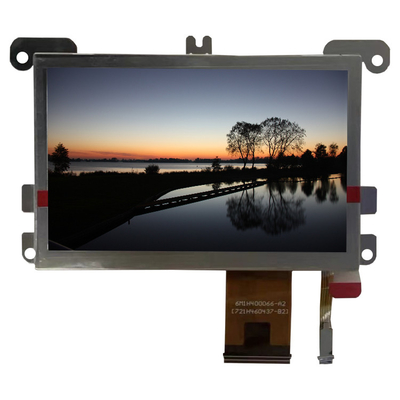

HSD050JDW2-F00 LCD Screen Panel For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050JDW2-F00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050JDW2-F00 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Outline(mm): | 120.6(W)×80(H) | Display Mode: | IPS, Normally Black, Transmissive |
| Response Time: | 22/8 (Max.)(Tr+Td) | Display Colors: | 16.7M 70% NTSC |
| Panel Weight: | 105/110g (Typ./Max.) | Application: | Automotive Display |
| High Light: | Automotive Display LCD Screen Panel,WVGA 188PPI LCD Screen Panel,HSD050JDW2-F00 LCD Display Panel |
||
Product Description
HSD050JDW2-F00 LCD Screen Panel for Automotive Display
HSD050JDW2-F00 Product details :
| HannStar LCD Screen HSD050JDW2-F00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD050JDW2-F00 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Outline Size | 120.6(W)×80(H) mm |
| Surface | Antiglare |
| Brightness | 1300 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Min.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 22/8 (Max.)(Tr+Td) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 105/110g (Typ./Max.) |
| Application | Automotive Display |
| Signal Interface | TTL (1 ch, 8-bit) |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| HSD050JDW2-F00 LCD Screen Panel for Automotive Display | |
HSD050JDW2-F00 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
HSD050JDW2-F00 Shipping and Package :
HSD050JDW2-F00 Shipping:
1. Worldwide shipping.
2. Orders will be delivered within 3 working days after confirming your payment.
3. Major express partners: DHL, Fedex, UPS, EMS.
4. We are not responsible for the additional taxes or customs duty.
HSD050JDW2-F00 Return & Replace:
1. If the products you received are Non-artificial damaged, please notify us in 3 days.
2. Products should be returned with original package and be in good condition if possible.
HSD050JDW2-F00 FAQ:
Q: How long is the warranty of HSD050JDW2-F00 ?
A: 90 days warranty .
Q: How can I trace my order of HannStar HSD050JDW2-F00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods HSD050JDW2-F00 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods HSD050JDW2-F00 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
