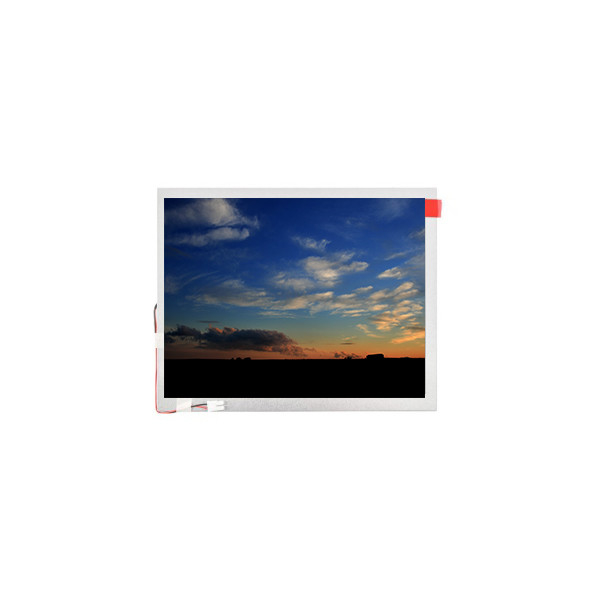

TM123XDKP17 12.3 Inch 1920*720 Lcd Display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM123XDKP17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM123XDKP17 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 166PPI | Active Area: | 292.32(W)×109.62(H) Mm |
| Outline(mm): | 305.92(W)×123.62(H) Mm | Luminance: | 800 Cd/m² (Min.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) |
| Response: | 25 (Max.)(Tr+Td) | Used For: | Industrial、Outdoor High Brightness、Automotive Display |
| Highlight: | 166PPI LCD Screen Display Panel,HVGA LCD Screen Display Panel,TM035PDHG03 Lcd Display Panel |
||
Product Description
TM123XDKP17 12.3 Inch 1920*720 Lcd Display
TM123XDKP17 Product details :
| Brand | TIANMA |
| Model P/N | TM123XDKP17 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.32(W)×109.62(H) mm |
| Bezel Opening | - |
| Outline Size | 305.92(W)×123.62(H) mm |
| Surface | Hard coating (3H) |
| Brightness | 800 cd/m² (Min.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) |
| Display Colors | 16.7M 77%DCI-P3 |
| Lamp Type | 8S3PWLED, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 333g (Typ.) |
| Application | Industrial,Outdoor High Brightness,Automotive Display |
| Signal Interface | LVDS (2 ch, 8-bit), 50 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C; Vibration Level: 3.0G (29.4 m/s²) |
TM123XDKP17 Shipping :
1, Shipping via AliExpress Standard Shipping.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
TM123XDKP17 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
TM123XDKP17 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
TM123XDKP17 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
TM123XDKP17 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
TM123XDKP17 FAQ:
Q: Can You declare my order of TM123XDKP17 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of TM123XDKP17 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of TM123XDKP17 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
TM123XDKP17 Shipping and Package :
