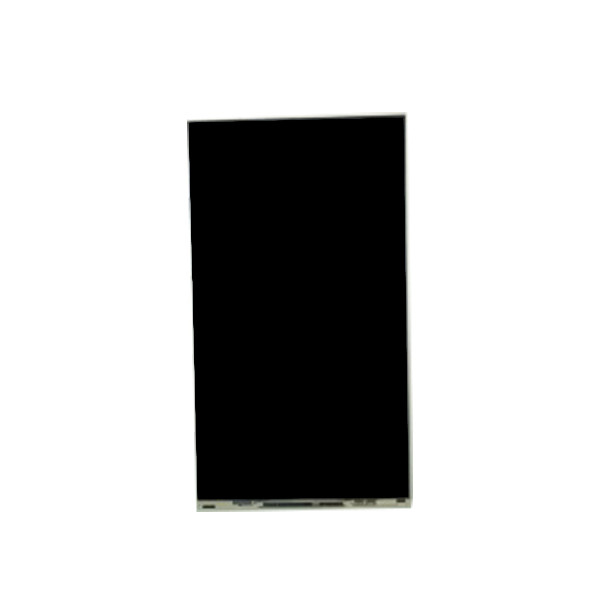

H650DAX01.0 6.5 Inch 1080*2340 60hz Tft Lcd Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | H650DAX01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | H650DAX01.0 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Resolution: | 1080(RGB)×2340 396PPI | Active Area: | 69.174(W)×149.887(H) Mm |
| Outline(mm): | 70.674(H)×152.627(V)×0.3(D) Mm | Luminance: | 0 Cd/m² |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 84%NTSC | Used For: | Mobile Phone |
| Highlight: | Camera TFT LCD Display,TM035KDH04 TFT LCD Display,Video Camera LCD Screen |
||
Product Description
H650DAX01.0 6.5 Inch 1080*2340 60hz Tft Lcd Display
H650DAX01.0 Product details :
| Brand | AUO |
| Model P/N | H650DAX01.0 |
| Diagonal Size | 6.5" |
| Panel Type | LTPS TFT-LCD, CELL, FOG |
| Resolution | 1080(RGB)×2340 396PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 69.174(W)×149.887(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.674(H)×152.627(V)×0.3(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 26 (Max.)(Tr+Td), 35 (Typ.)(G to G) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 4.34% (Typ.)(with APCF) |
| Support Color | 16.7M 84%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in TD4320 |
| Interface Type | MIPI |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
