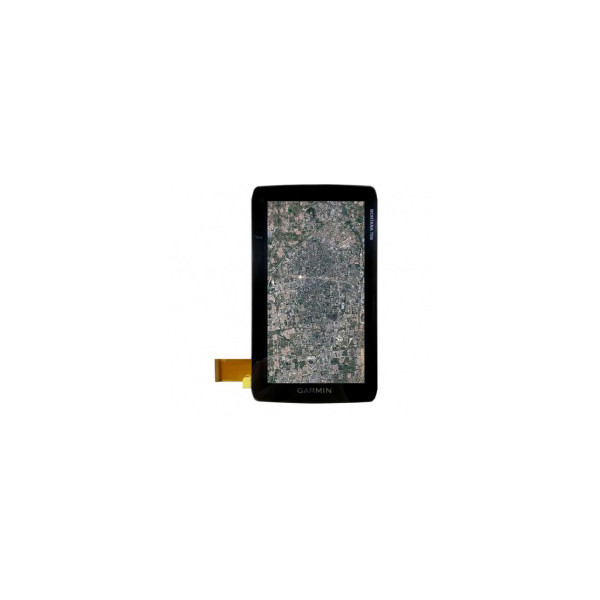

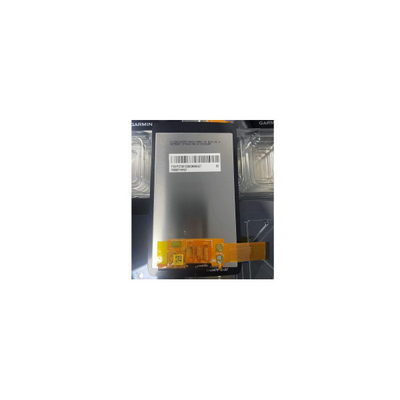

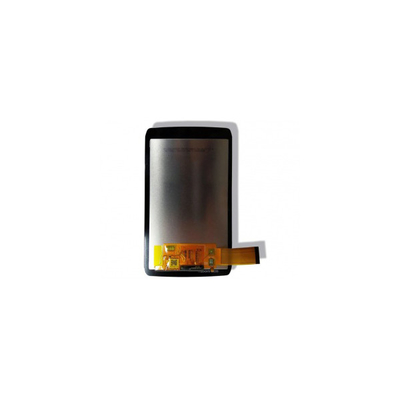

TM050YVHR01-00 5.0 inch 480*800 tft liquid crystal display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM050YVHR01-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM050YVHR01-00 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×800, WVGA 188PPI | Active Area: | 64.8(W)×108(H) Mm |
| Outline(mm): | 80.41(W)×140.6(H) Mm | Luminance: | 140 Cd/m² (Typ.) |
| Contrast Ratio: | 40:1 (Typ.) (TM) 19:1 (Typ.) (RF) | Viewing Angle: | 25/25/35/35 (Typ.)(CR≥10) |
| Color Depth: | 65K 20%NTSC | Used For: | Portable Navigation |
Product Description
TM050YVHR01-00 5.0 inch 480*800 tft liquid crystal display
TM050YVHR01-00 Product details :
| Brand | TIANMA |
| Model P/N | TM050YVHR01-00 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×800, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×108(H) mm |
| Bezel Opening | - |
| Outline Size | 80.41(W)×140.6(H) mm |
| Surface | Hard coating |
| Brightness | 140 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (TM) 19:1 (Typ.) (RF) |
| Viewing Angle | 25/25/35/35 (Typ.)(CR≥10) |
| Display Mode | ECB, Normally White, Transflective |
| Best View on | 5 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 65K 20%NTSC |
| Lamp Type | 5S2PWLED, 15K hours, Without Driver |
| Frequency | - |
| Touch Screen | PCAP, I²C |
| Panel Weight | TBD |
| Application | Portable Navigation |
| Signal Interface | CPU, 51 pinsFPC |
| Input Voltage | 1.8/2.8V (Typ.)(IOVCC/VDD) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C |
TM050YVHR01-00 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
TM050YVHR01-00 Payment:
1. We accept Paypal
2. All major credit cards are accepted through our secure payment processor PayPal.
3. If you have any problems of payment, please contact us.
TM050YVHR01-00 Shipping :
1, Shipping via AliExpress Standard Shipping.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
TM050YVHR01-00 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
TM050YVHR01-00 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
TM050YVHR01-00 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
TM050YVHR01-00 FAQ:
Q: Can you tested the TM050YVHR01-00 before shipping ?
A: Of course , our lcd panel TM050YVHR01-00 was Strictly tested before shipping.
Q: How to order TM050YVHR01-00 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd TM050YVHR01-00 ?
A: 90 days .
Q: What happen if the lcd panel TM050YVHR01-00 I received can't work ?
A: TM050YVHR01-00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
