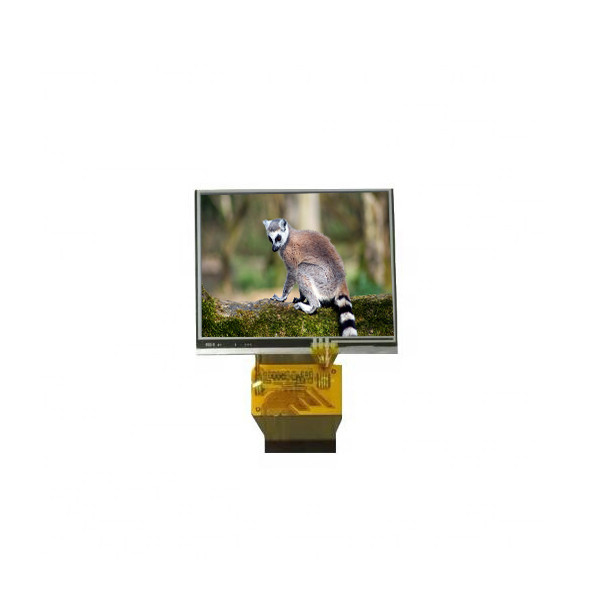

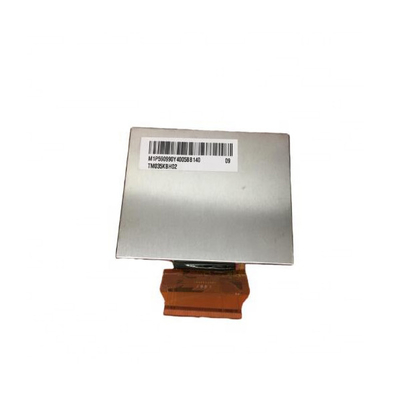

TM035KBH02-09 3.5 inch 320*240 TFT LCD for Industrial LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM035KBH02-09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM035KBH02-09 | Diagonal Size: | 3.5" |
|---|---|---|---|
| Resolution: | 320(RGB)×240 (QVGA) 115PPI | Active Area: | 70.08 × 52.56 (H×V) |
| Outline(mm): | 76.9 × 63.9 × 4.2 (H×V×D) | Luminance: | 420 (Typ.)(cd/m²) |
| Contrast Ratio: | 500: 1 (Min.) (TM) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 50% NTSC | Used For: | Industrial Digital Still Camera Digital Video Camera |
Product Description
TM035KBH02-09 3.5 inch 320*240 TFT LCD for Industrial LCD SCREEN
TM035KBH02-09 Product details :
| TIANMA LCD SCREEN TM035KBH02-09 | |
| Manufacturer | TIANMA |
| Model Name | TM035KBH02-09 |
| Screen Size | 3.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 115PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 70.08 × 52.56 (H×V) |
| Outline(mm) | 76.9 × 63.9 × 4.2 (H×V×D) |
| Bezel Area(mm) | 72.08 × 54.56 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 6S1P WLED , 20K hours , No Driver |
| Mass | 40.0g |
| Used for | Industrial Digital Still Camera Digital Video Camera |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| TM035KBH02-09 3.5 inch 320*240 TFT LCD for Industrial LCD SCREEN | |
TM035KBH02-09 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
TM035KBH02-09 Payment:
1. We accept Paypal
2. All major credit cards are accepted through our secure payment processor PayPal.
3. If you have any problems of payment, please contact us.
TM035KBH02-09 Shipping :
1, Shipping via AliExpress Standard Shipping.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
TM035KBH02-09 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
TM035KBH02-09 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
TM035KBH02-09 FAQ:
Q: How can I trace my order of TM035KBH02-09 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of TM035KBH02-09 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of TM035KBH02-09 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of TM035KBH02-09 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
TM035KBH02-09 Shipping and Package :
