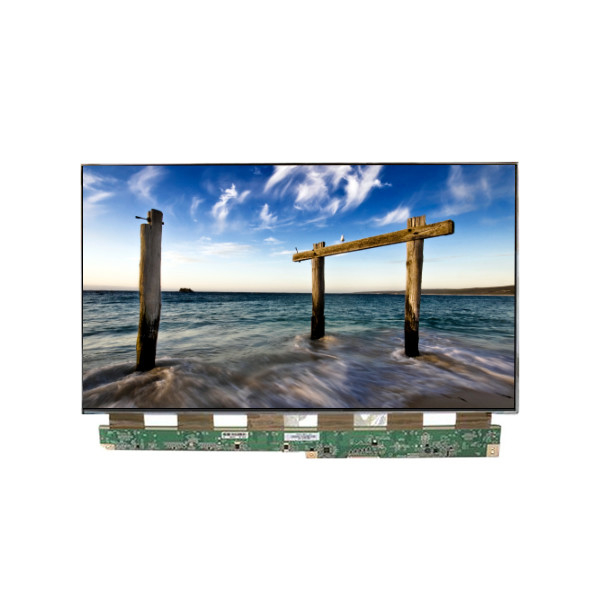

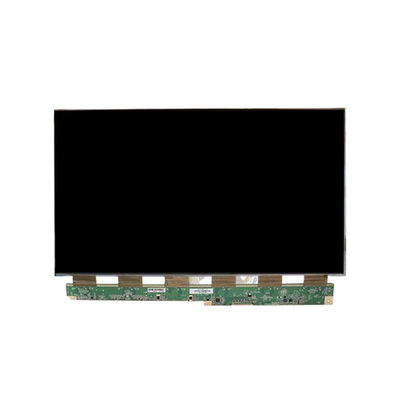

19.5 inch lcd display panel MV195WGB-N10 1440*900 lcd module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV195WGB-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV195WGB-N10 | Diagonal Size: | 19.5" |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+ 87PPI | Active Area: | 418.608(W)×262.35(H) Mm |
| Outline(mm): | 426.408(W)×271.9(H)×1.32(D) Mm | Luminance: | 0 Cd/m² |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Reaction Time: | 14 (Typ.)(G To G) | Used For: | Desktop Monitor |
Product Description
19.5 inch lcd display panel MV195WGB-N10 1440*900 lcd module
MV195WGB-N10 Product details :
| Brand | BOE |
| Model P/N | MV195WGB-N10 |
| Diagonal Size | 19.5" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1440(RGB)×900, WXGA+ 87PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 418.608(W)×262.35(H) mm |
| Bezel Opening | - |
| Outline Size | 426.408(W)×271.9(H)×1.32(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 16.7M 74%NTSC |
| Frequency | 60Hz |
| Weight | 340g (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Transmissivity | 4.25% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Driver IC | COFBuilt-in 5 source chips |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
MV195WGB-N10 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
MV195WGB-N10 Payment:
1. We accept Paypal
2. All major credit cards are accepted through our secure payment processor PayPal.
3. If you have any problems of payment, please contact us.
MV195WGB-N10 Warm Reminder:
(1). To Brazil buyers, Need to offer us CNPJ or CPF if ship the goods by DHL/FEDEX/EMS.
(2). To Russia buyers, The goods only can be shipped by EMS , The buyer need to offer full name of receiver!
(3). The Duty or custom fees is depend on BUYER country, Not Seller! If need declare low value when shipping , Please advise us in time !
(4). To remote areas buyers , If ship the order by FEDEX/DHL , Need to add extra fee USD30.00 , Hope buyer can understand us.
MV195WGB-N10 Description:
No.1: About Payment Information
We accept Escrow service.
No.2: About Customs Duty & Handling Fee:
For all customers` orders, we do not charge handing fee, even 1pcs part.
When parts arrive at your local custom, if the parts were charged customs duty, we are not responsible for any customs duties or import taxes.
No.3: Abount Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
MV195WGB-N10 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
MV195WGB-N10 FAQ:
Q: Can you give me a discount if I need a large quantity of MV195WGB-N10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of MV195WGB-N10 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of MV195WGB-N10 ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
MV195WGB-N10 Shipping and Package :
