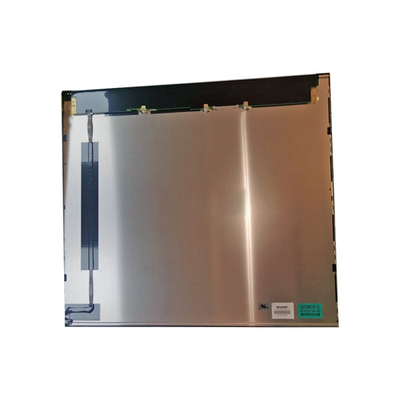

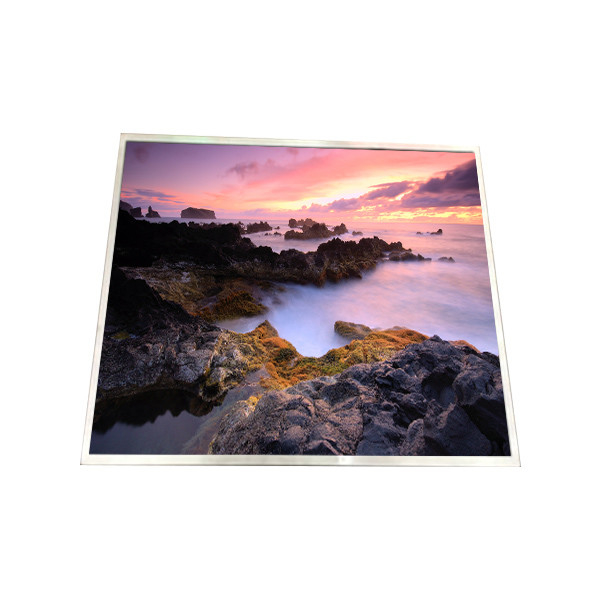

LQ190E1LW72 19.0 inch lcd screen display 1280*1024 lcd display panel WLED
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ190E1LW72 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ190E1LW72 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024SXGA 86PPI | Active Area: | 376.32(H)×301.056(V) Mm |
| Outline(mm): | 396(H)×323.6(V) ×12(D) Mm | Luminance: | 350(Typ.)(cd/m²) |
| Contrast Ratio: | 1500 : 1 (Min.) (TM) | Viewing Angle: | 85/85/85/85 (Min.)(CR≥10) |
| Number Of Color: | 16.7M , 100% SRGB | Used For: | Industrial Medical Imaging Gaming |
Product Description
LQ190E1LW72 19.0 inch lcd screen display 1280*1024 lcd display panel WLED
LQ190E1LW72 Product details :
| SHARP LCD SCREEN LQ190E1LW72 | |
| Brand | SHARP |
| Model Name | LQ190E1LW72 |
| Diagonal Size | 19.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×1024SXGA 86PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 376.32(H)×301.056(V) mm |
| Bezel Opening | 382.00(H)×307.55(V) mm |
| Outline Size | 396(H)×323.6(V) ×12(D) mm |
| Surface | Matte (Haze 25%), Hard coating (3H) |
| Brightness | 350 (Typ.) |
| Contrast | 1500 : 1 (Typ.) [Transmission] |
| Optical mode | ASV, Normally Black, Transflective |
| Viewing angle | 85/85/85/85 (Min.)(CR≥10) |
| Responding time | 35 (Typ.)(Tr+Td) ms |
| Number of color | 16.7M , 100% sRGB |
| Backlight type | WLED , 70K hours, with LED driver |
| Panel weight | 1.30Kgs (Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Application | Industrial Medical Imaging Gaming |
| Signal Interface | 30 pins LVDS (2 ch, 8-bit) , terminal |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Storage temperature: -25 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| LQ190E1LW72 19.0 inch lcd screen display 1280*1024 lcd display panel WLED | |
