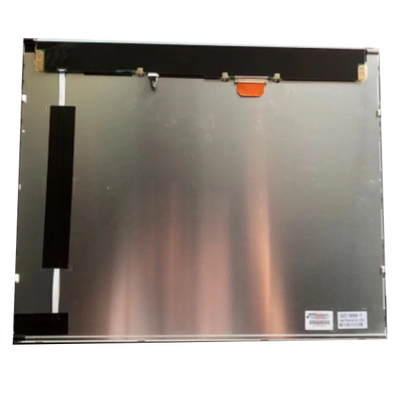

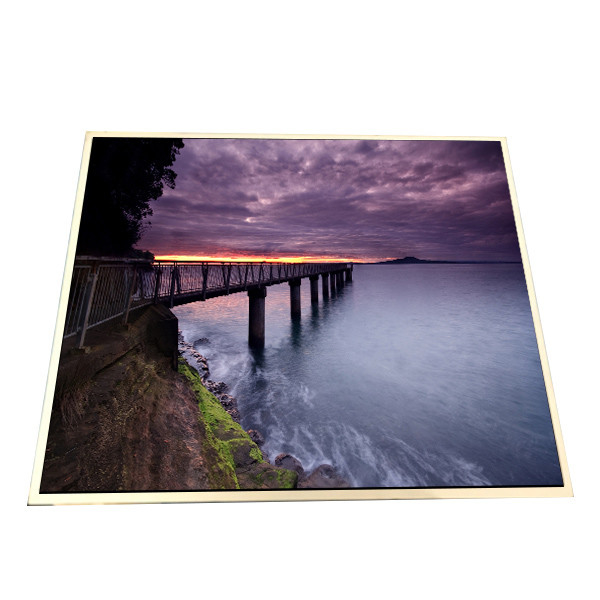

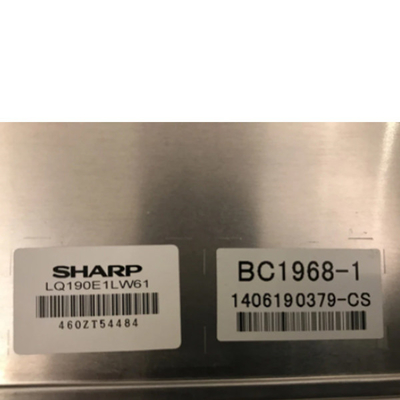

19 Inch 1280*1024 86PPI LQ190E1LW61 TFT LCD Display Module Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ190E1LW61 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ190E1LW61 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024SXGA 86PPI | Active Area: | 376.32(H)×301.056(V) Mm |
| Outline(mm): | 396(H)×323.6(V) ×12(D) Mm | Luminance: | 470(Typ.)(cd/m²) |
| Contrast Ratio: | 1500 : 1 (Min.) (TM) | Viewing Angle: | 85/85/85/85 (Min.)(CR≥10) |
| Number Of Color: | 16.7M , 90% NTSC | Used For: | Gaming |
Product Description
19 Inch 1280*1024 86PPI LQ190E1LW61 TFT LCD Display Module Panels
LQ190E1LW61 Product details :
| SHARP LCD SCREEN LQ190E1LW61 | |
| Brand | SHARP |
| Model Name | LQ190E1LW61 |
| Diagonal Size | 19.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×1024SXGA 86PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 376.32(H)×301.056(V) mm |
| Outline(mm) | 396(H)×323.6(V) ×12(D) mm |
| Treatment | Antiglare (Haze 3%), Hard coating (2H) |
| Brightness | 470 (Typ.) |
| Contrast | 1500 : 1 (Typ.) [Transmission] |
| Optical mode | ASV, Normally Black, Transflective |
| Viewing angle | 85/85/85/85 (Min.)(CR≥10) |
| Responding time | 35 (Typ.)(Tr+Td) ms |
| Number of color | 16.7M , 90% NTSC |
| Backlight type | WLED , 50K hours, with LED driver |
| Panel weight | 1.30Kgs (Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Used for | Gaming |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins , terminal |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating: 0 ~ 60 °C ; Storage: -25 ~ 60 °C |
| 19 Inch 1280*1024 86PPI LQ190E1LW61 TFT LCD Display Module Panels | |
