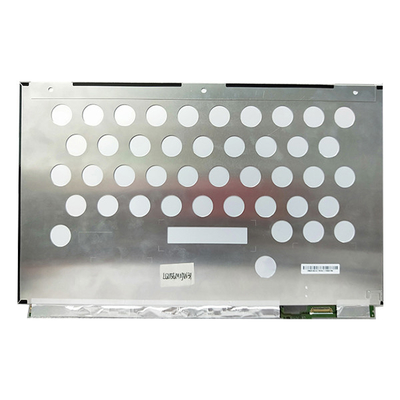

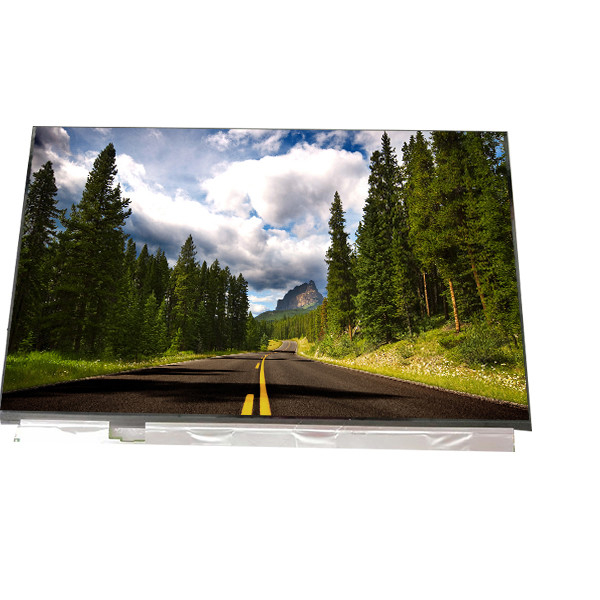

1920*1080 lcd screen module 15.6 inch lcd panel LQ156D1JW31
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ156M1JW31 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ156M1JW31 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline(mm): | 351.9(H)×220.2(V)×2.8(D) Mm | Luminance: | 400 (Typ.)(cd/m²) |
| Contrast Ratio: | 1000: 1 (Min.) (TM) | Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) |
| Reaction Time: | 30 (Typ.)(Tr+Td) | Used For: | Industrial |
Product Description
1920*1080 lcd screen module 15.6 inch lcd panel LQ156D1JW31
LQ156M1JW31 Product details :
| SHARP LCD SCREEN LQ156M1JW31 | |
| Brand | SHARP |
| Model Name | LQ156M1JW31 |
| Diagonal Size | 15.6 inch |
| Screen type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 344.16(W)×193.59(H) mm |
| Outline Dim. | 351.9(H)×220.2(V)×2.8(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 400 (Typ.) |
| contrast | 1000:1 (Typ.) |
| Viewing angle | 89/89/89/89 (Typ.) (CR≥10) |
| Operating Mode | New Mode2, Normally Black, Transmissive |
| Number of color | 16.7M , 71% NTSC |
| Reaction time | 30 (Typ.)(Tr+Td) |
| Backlight type | WLED , 15K hours, with LED driver |
| Refresh rate | 60Hz |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Touch function | No touch |
| Designed For | Laptop Gaming |
| Signal | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -25 ~ 60 °C |
| 1920*1080 lcd screen module 15.6 inch lcd panel LQ156D1JW31 | |
