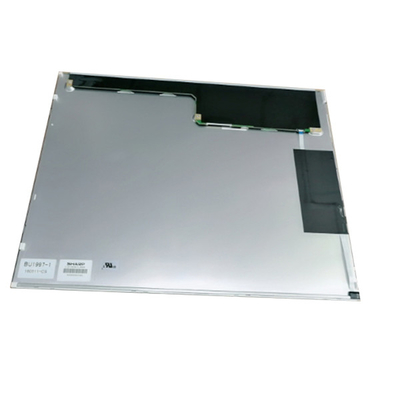

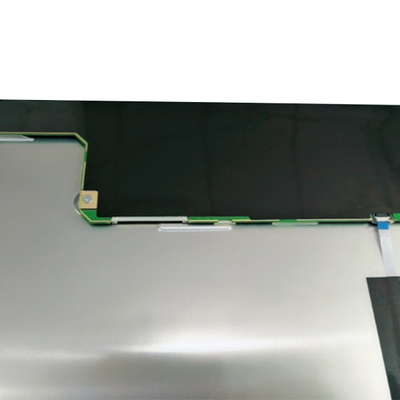

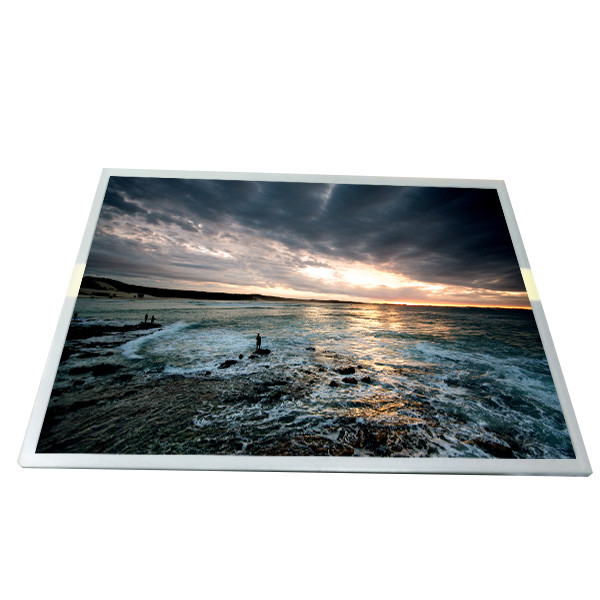

LQ150X1LX92 15.0 Inch 1024x768 TFT LCD Panel LVDS Interface LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | LQ150X1LX92 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LX92 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768[XGA] 85PPI | Active Area: | 304.128 × 228.096 Mm (H×V) |
| Outline(mm): | 326.5 × 253.5 × 10.1 Mm (H×V×D) | Luminance: | 270(Typ.)(cd/m²) |
| Contrast Ratio: | 1500 : 1 (Min.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Reaction Time: | 35 (Typ.)(Tr+Td) | Used For: | Industrial |
Product Description
LQ150X1LX92 15.0 Inch 1024x768 TFT LCD Panel LVDS Interface LCD Display Screen
LQ150X1LX92 Product details :
| SHARP LCD SCREEN LQ150X1LX92 | |
| Brand | SHARP |
| Model Name | LQ150X1LX92 |
| Diagonal Size | 15.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768[XGA] 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.128 × 228.096 mm (H×V) |
| Bezel Opening | 307.4 × 231.3 mm (H×V) |
| Outline Dim. | 326.5 × 253.5 × 10.1 mm (H×V×D) |
| Treatment | Antiglare (Haze 3%), Hard coating (3H) |
| Brightness | 270 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) |
| Viewing angle | 85/85/85/85 (Typ.) (CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Number of color | 262K/16.2M , 70% NTSC |
| Reaction time | 35 (Typ.)(Tr+Td) |
| Backlight type | WLED , 70K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Designed For | Industrial |
| Weight | 950g (Max.) |
| Signal | LVDS (1 ch, 6/8-bit) , terminal, 20 pins |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -25 ~ 65 °C |
| LQ150X1LX92 15.0 Inch 1024x768 TFT LCD Panel LVDS Interface LCD Display Screen | |
LQ150X1LX92 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ150X1LX92 Package included:
1pc lcd panel
LQ150X1LX92 Shippment
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
LQ150X1LX92 FAQ:
Q: How can I trace my order of LQ150X1LX92 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LQ150X1LX92 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LQ150X1LX92 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LQ150X1LX92 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LQ150X1LX92 Shipping and Package :
