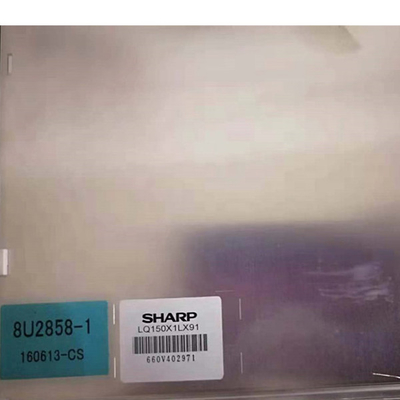

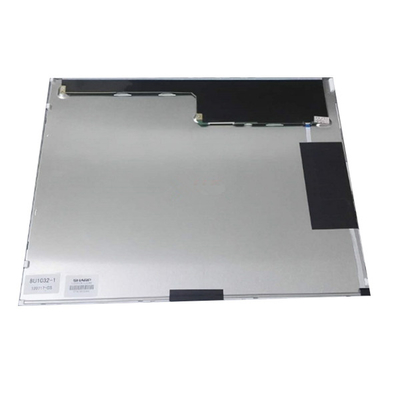

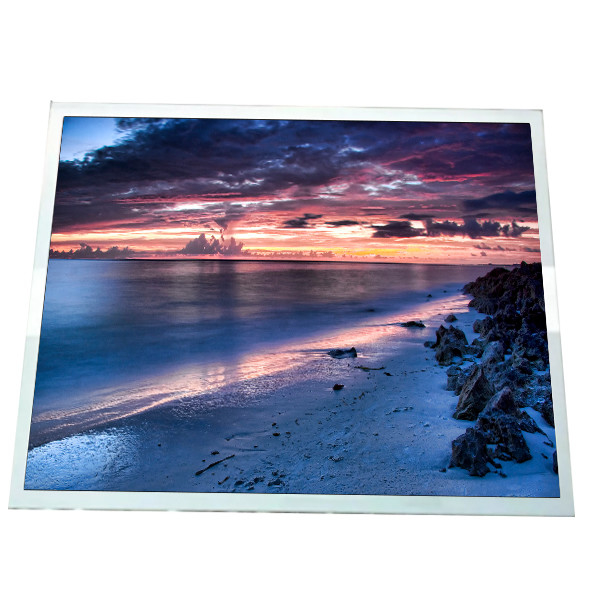

15 inch 1024*768 Industrial TFT LCD Screen Display Module Panel LQ150X1LX91
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ150X1LX91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LX91 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)*768[XGA] 85PPI | Active Area: | 304.128 * 228.096 Mm (H*V) |
| Outline(mm): | 326.5 *253.5 * 10.1 Mm (H*V*D) | Luminance: | 300 (Typ.)(cd/m²) |
| Contrast Ratio: | 1500 : 1 (Min.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Reaction Time: | 35 (Typ.)(Tr+Td) | Used For: | Industrial |
Product Description
15 inch 1024*768 Industrial TFT LCD Screen Display Module Panel LQ150X1LX91
LQ150X1LX91 Product details :
| SHARP LCD SCREEN LQ150X1LX91 | |
| Brand | SHARP |
| Model Name | LQ150X1LX91 |
| Diagonal Size | 15.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768[XGA] 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.128 × 228.096 mm (H×V) |
| Bezel Opening | 307.4 × 231.3 mm (H×V) |
| Outline Size | 326.5 × 253.5 × 10.1 mm (H×V×D) |
| Surface | Antiglare (Haze 3%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) |
| Viewing angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | ASV, Normally Black, Transmissive |
| Number of color | 262K/16.2M , 70% NTSC |
| Reaction time | 35 (Typ.)(Tr+Td) |
| Backlight type | WLED , 30K hours, with LED driver |
| Refresh rate | 60Hz |
| Application | Industrial |
| Touch function | No touch |
| Panel Weight | 1.11kgs (Max.) |
| Signal Interface | LVDS (1 ch,8-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -25 ~ 70 °C Operating temperature: -20 ~ 70 °C |
| 15 inch 1024*768 Industrial TFT LCD Screen Display Module Panel LQ150X1LX91 | |
