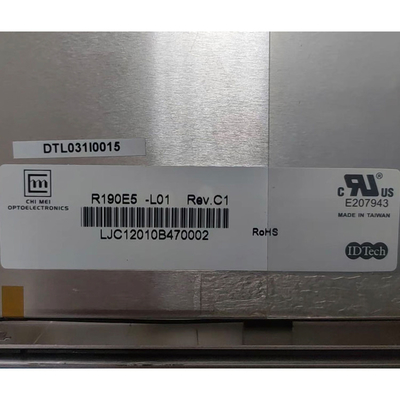

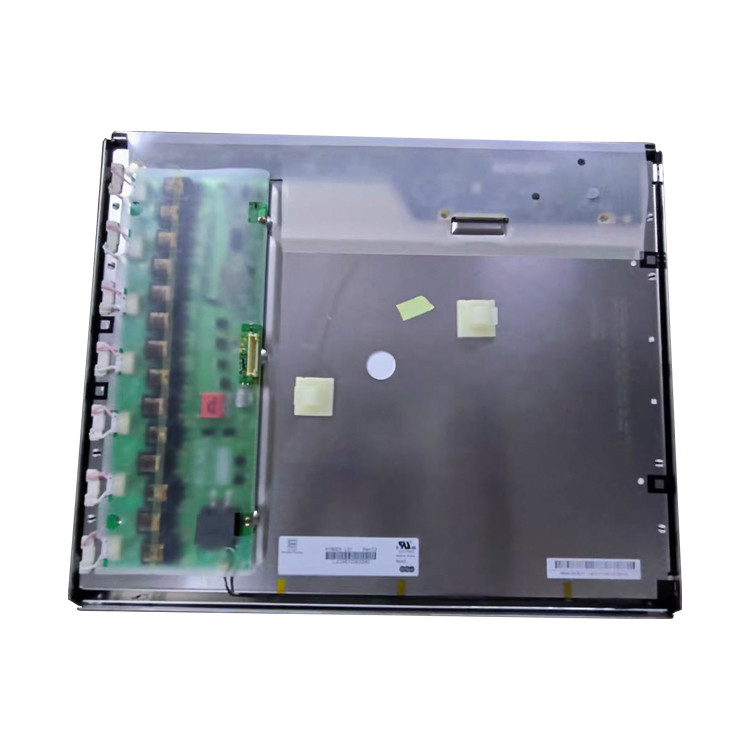

Name: New 19.0 inch 1280*1024 Resolution for Chimei Innolux R190E5-L01 TFT LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: R190E5-L01
Availability: InStock

Brand Name:	Chimei Innolux
Model Number:	R190E5-L01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

R190E5-L01

Diagonal Size:

19.0"

Resolution:

1280(RGB)×1024, SXGA 86PPI

Active Area:

376.32(W)×301.056(H) Mm

Bezel Opening:

380.3(W)×305.0(H) Mm

Outline(mm):

396(W)×324(H)×37(D)

Luminance:

1300 (Typ.)(cd/m²)

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Mass:

1.70/1.80Kgs (Typ./Max.)

Used For:

Medical Imaging

Supply Ability:

100000 Unit/Units per Month

Product Description

New 19.0 inch 1280*1024 Resolution for Chimei Innolux R190E5-L01 TFT LCD Screen

R190E5-L01 Product details :

Chimei Innolux LCD Screen R190E5-L01
Brand	Chimei Innolux
Model P/N	R190E5-L01
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(LCR)×1024, SXGA 86PPI
Pixel Format	LCR Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.3(W)×305.0(H) mm
Outline(mm)	396(W)×324(H)×37(D)
Treatment	Antiglare
Luminance	1300 (Typ.)(cd/m²)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥20)
Work Mode	DD-IPS, Normally Black, Transmissive
Good View at	Symmetry
Response	15/5 (Typ.)(Tr/Td) ms
Color Depth	Grayscale

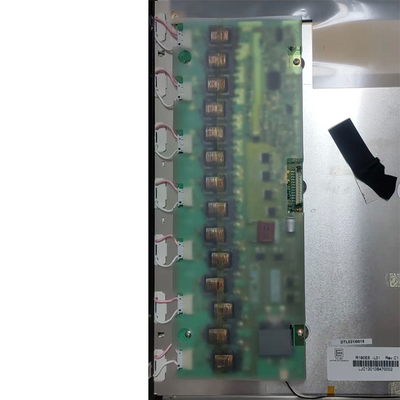

Backlight	14 pcs CCFL , 50K hours , With Inverter
Mass	1.70/1.80Kgs (Typ./Max.)
Used for	Medical Imaging
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply	12.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C
New 19.0 inch 1280*1024 Resolution for Chimei Innolux R190E5-L01 TFT LCD Screen

R190E5-L01 Payment:

1.Before placing your order , please confirm price and other details with the supplier.

2.Please make sure you read the entire description and agree to the transaction before buying.

R190E5-L01 Shipping and Package :
New 19.0 inch 1280*1024 Resolution for Chimei Innolux R190E5-L01 TFT LCD Screen 0

R190E5-L01 Shipping:

1. Worldwide shipping.

2. Orders will be delivered within 3 working days after confirming your payment.

3. Major express partners: DHL, Fedex, UPS, EMS.

4. We are not responsible for the additional taxes or customs duty.

R190E5-L01 Warratty:

1, We take 12 months warranty from the shipping date , no matter what quality problem it's .

2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .

R190E5-L01 FAQ:

Q: If I place order now,when will you ship the goods of R190E5-L01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How can I trace my order of R190E5-L01 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my order of R190E5-L01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders of R190E5-L01 ?

A: Of course!sample order is welcome !
