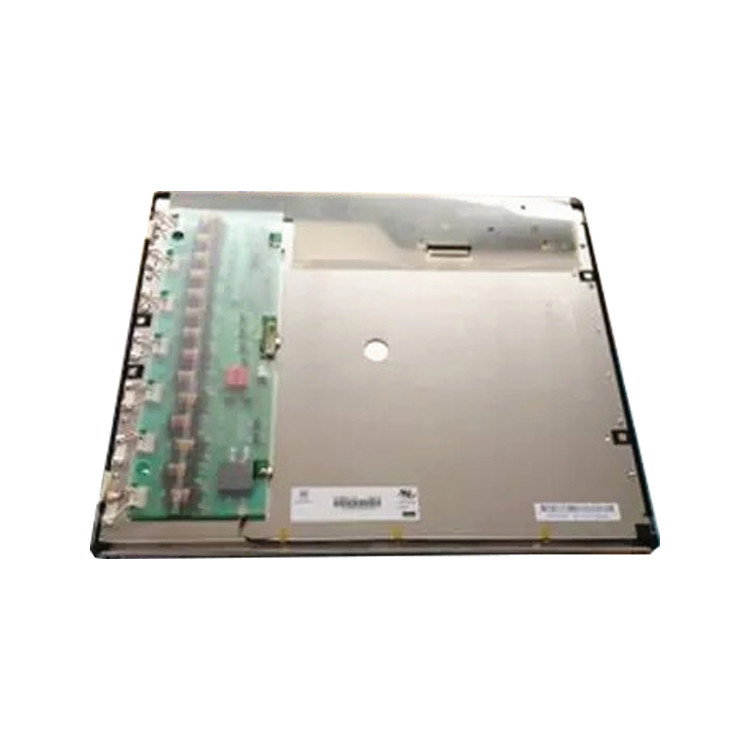

R190E1-L01 Original 19.0 inch LCD screen display for Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | R190E1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R190E1-L01 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.2(W)×305.0(H) Mm | Outline Size: | 404.2(W)×330(H) ×35.7(D) Mm |
| Brightness: | 600 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Panel Weight: | 2.05Kgs (Max.) | Application: | Medical Imaging |
Product Description
R190E1-L01 Original 19.0 inch LCD screen display for Medical Imaging
R190E1-L01 Product details :
| CMO LCD Screen R190E1-L01 | |
|---|---|
| Brand | CMO |
| Model P/N | R190E1-L01 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.2(W)×305.0(H) mm |
| Outline Size | 404.2(W)×330(H) ×35.7(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | LCS MVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 74% NTSC |
| Lamp Type | 16 pcs CCFL , 50K hours , With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.05Kgs (Max.) |
| Application | Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| R190E1-L01 Original 19.0 inch LCD screen display for Medical Imaging | |
R190E1-L01 We Promise to:
1:Manufacture only the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
R190E1-L01 Shipping and Package :
R190E1-L01 About Shipping:
Yes, after we shipped the goods, we offer the tracking number soonon .However, there is a time delay of the tracking system,so the tracking information is available within 5 - 10 days.
R190E1-L01 Returns:
*All returns must be notified before the return. We look forward to cooperating with rational and friendly customers. If you have any problems with the items you received, please contact us immediately.
*Because the buyer ordered the wrong parts, the buyer needs to pay the replacement shipping cost.
*The returned goods must have all original packaging and be in good condition.
*All items will be tested before shipment. If you encounter any problems, please contact me first and I will try my best to solve it for you.
All the above products are welcome to order in bulk, and we will provide the lowest price for high-quality products according to the requirements. If you are interested, please contact us.
R190E1-L01 FAQ:
Q: How long is the warranty of R190E1-L01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of R190E1-L01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of CMO R190E1-L01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods R190E1-L01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
