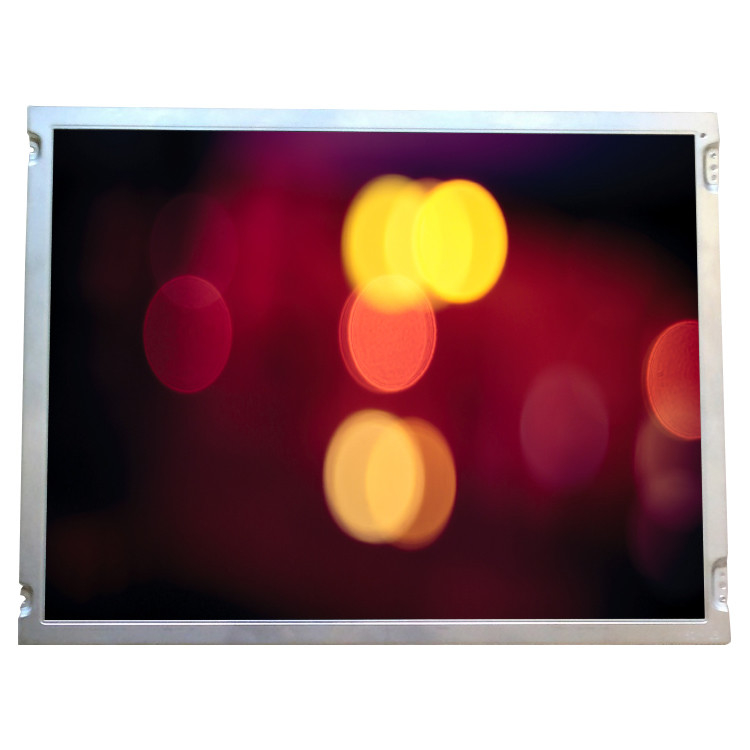

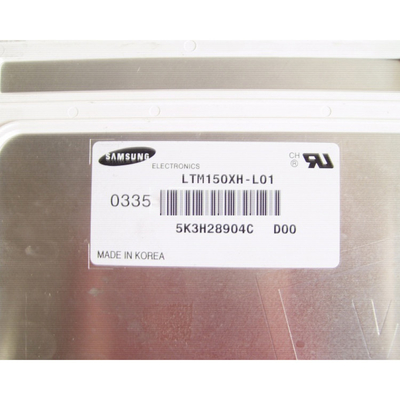

15.0 Inch 1024*768 LCD Display Screen Panel Brand New LTM150XH-L01
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM150XH-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM150XH-L01 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.2(W)×231.1(H) Mm | Outline Size: | 331.6(W)×254.8(H) ×13(D) Mm |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Panel Weight: | 1.35Kgs (Max.) | Application: | Desktop Monitor |
Product Description
15.0 Inch 1024*768 LCD Display Screen Panel Brand New LTM150XH-L01
LTM150XH-L01 Product details :
| Samsung LCD Screen LTM150XH-L01 | |
|---|---|
| Brand | Samsung |
| Model P/N | LTM150XH-L01 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.2(W)×231.1(H) mm |
| Outline Size | 331.6(W)×254.8(H) ×13(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 70/70/55/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 65% NTSC |
| Lamp Type | 4 pcs CCFL , 35K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.35Kgs (Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 15.0 Inch 1024*768 LCD Display Screen Panel Brand New LTM150XH-L01 | |
LTM150XH-L01 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
LTM150XH-L01 Shipping and Package :
LTM150XH-L01 About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
LTM150XH-L01 Return:
1.Our Return Policy does not extended to any products that are physically damaged or that are not under normal operating conditions as a result of misuse or improper installation on the buyer/user's part.
2.This product comes with 60-Day Money Back Guarantee.
3.For all returned products, please contact us for the returning address.
4.We stand behind every product we sell. If you're not pleased with your purchase, we'll be happy to make an exchange or refund.
LTM150XH-L01 FAQ:
Q: Can I pay my goods LTM150XH-L01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods Samsung LTM150XH-L01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Can You declare my order of touch lcd panel LTM150XH-L01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of Samsung LTM150XH-L01 ?
A: 90 days warranty .
