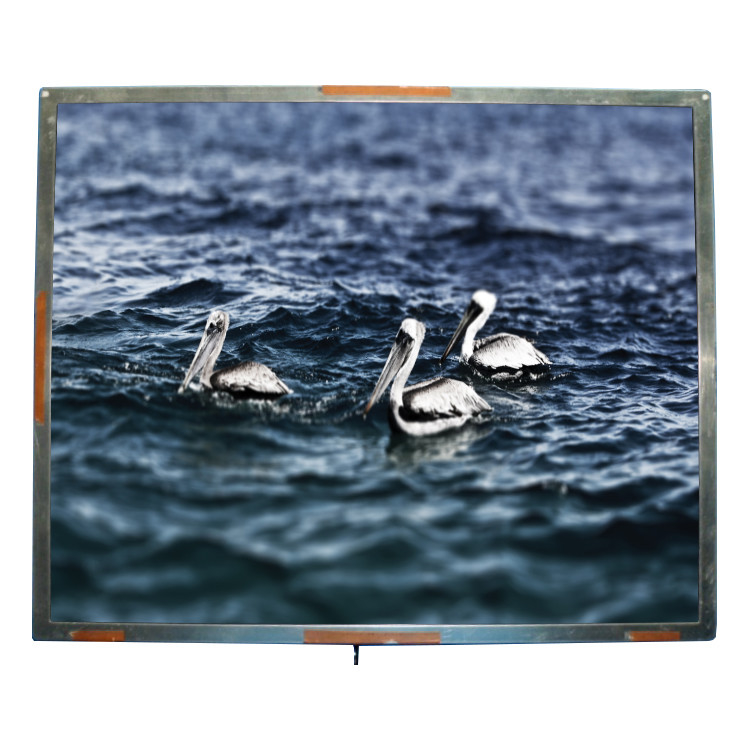

CMO R181E2-L01 Model 18.1 inch 1280*1024 TFT LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | R181E2-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | R181E2-L01 | Diagonal Size: | 18.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 90PPI | Active Area: | 359.04(W)×287.232(H) Mm |
| Bezel Opening: | 367.0(W)×295.2(H) Mm | Outline Size: | 389(W)×317.2(H) ×35(D) Mm |
| Brightness: | 270 Cd/m² (Typ.) | Display Mode: | DD-IPS, Normally Black, Transmissive |
| Weight: | 2.90Kgs (Typ.) | Application: | Medical Imaging |
Product Description
CMO R181E2-L01 Model 18.1 inch 1280*1024 TFT LCD Screen Panel
R181E2-L01 Product details :
| CMO LCD Screen R181E2-L01 | |
|---|---|
| Brand | CMO |
| Model P/N | R181E2-L01 |
| Diagonal Size | 18.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 359.04(W)×287.232(H) mm |
| Bezel Opening | 367.0(W)×295.2(H) mm |
| Outline Size | 389(W)×317.2(H) ×35(D) mm |
| Surface | Antiglare |
| Brightness | 270 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | DD-IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 40 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 99% sRGB |
| Lamp Type | 6 pcs CCFL , 50K hours , With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 2.90Kgs (Typ.) |
| Application | Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| CMO R181E2-L01 Model 18.1 inch 1280*1024 TFT LCD Screen Panel | |
