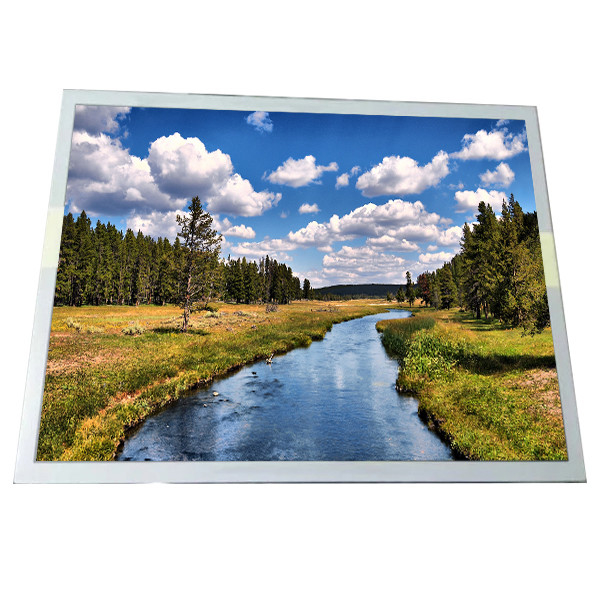

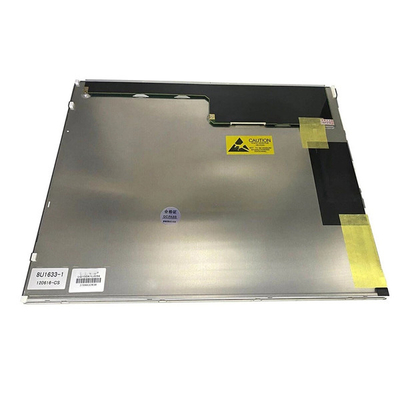

LQ150X1LW96 15 inch lcd display 1024*768 lcd screen module TFT-LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ150X1LW96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LW96 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768[XGA] 85PPI | Active Area: | 304.128 × 228.096 Mm (H×V) |
| Outline Size: | 326.5 × 253.5 × 10.1 Mm (H×V×D) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Response Time: | 35 (Typ.)(Tr+Td) | Brightness: | 500 Cd/m² (Typ.) |
| Number Of Color: | 262K/16.2M , 70% NTSC | Designed For: | Industrial Medical Imaging |
Product Description
LQ150X1LW96 15 inch lcd display 1024*768 lcd screen module TFT-LCD
LQ150X1LW96 Product details :
| SHARP LCD SCREEN LQ150X1LW96 | |
| Brand | SHARP |
| Model Name | LQ150X1LW96 |
| Diagonal Size | 15.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768[XGA] 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.128 × 228.096 mm (H×V) |
| Bezel Opening | 307.4 × 231.3 mm (H×V) |
| Outline Dim. | 326.5 × 253.5 × 10.1 mm (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) |
| Viewing angle | 85/85/85/85 (Typ.) (CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Number of color | 262K/16.2M , 70% NTSC |
| Reaction time | 35 (Typ.)(Tr+Td) |
| Backlight type | WLED , 50K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Designed For | Industrial Medical Imaging |
| Weight | 950g (Max.) |
| Interface Type | LVDS (1 ch,8-bit) , terminal, 20 pins |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage temperature: -25 ~ 70 °C Operating temperature: -20 ~ 70 °C |
| LQ150X1LW96 15 inch lcd display 1024*768 lcd screen module TFT-LCD | |
LQ150X1LW96 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ150X1LW96 NOTE:
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;
Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.
All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.
LQ150X1LW96 Shippment:
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
LQ150X1LW96 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
LQ150X1LW96 FAQ:
Q: Can You declare my order of LQ150X1LW96 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LQ150X1LW96 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LQ150X1LW96 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LQ150X1LW96 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LQ150X1LW96 Shipping and Package :
