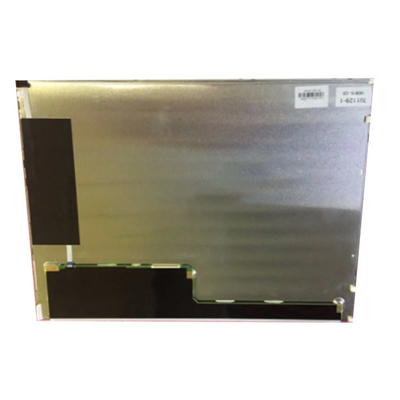

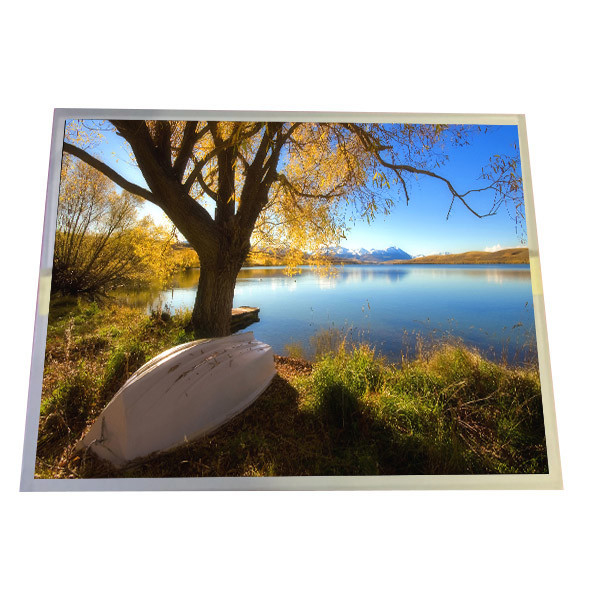

LQ150X1LW95 15 Inch 1024x768 TFT LCD Panel LVDS Interface LCD Screen For Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ150X1LW95 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LW95 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768[XGA] 85PPI | Active Area: | 304.128 × 228.096 Mm (H×V) |
| Outline Size: | 326.5 × 253.5 × 10.1 Mm (H×V×D) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Response Time: | 35 (Typ.)(Tr+Td) | Brightness: | 400 Cd/m² (Typ.) |
| Number Of Color: | 262K/16.2M , 70% NTSC | Designed For: | Industrial Medical Imaging |
Product Description
LQ150X1LW95 15 Inch 1024x768 TFT LCD Panel LVDS Interface LCD Screen For Medical Imaging
LQ150X1LW95 Product details :
| SHARP LCD SCREEN LQ150X1LW95 | |
| Brand | SHARP |
| Model Name | LQ150X1LW95 |
| Diagonal Size | 15.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768[XGA] 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 304.128 × 228.096 mm (H×V) |
| Bezel Opening | 307.4 × 231.3 mm (H×V) |
| Outline Size | 326.5 × 253.5 × 10.1 mm (H×V×D) |
| Surface | Matte Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) |
| Viewing angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | ASV, Normally Black, Transmissive |
| Number of color | 262K/16.2M , 70% NTSC |
| Reaction time | 35 (Typ.)(Tr+Td) |
| Backlight type | WLED ,70K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Application | Industrial Medical Imaging |
| Weight | 950g (Max.) |
| Signal | LVDS (1 ch,8-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| working | Storage temperature: -25 ~ 70 °C Operating temperature: -20 ~ 70 °C |
| LQ150X1LW95 15 Inch 1024x768 TFT LCD Panel LVDS Interface LCD Screen For Medical Imaging | |
LQ150X1LW95 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ150X1LW95 NOTE:
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;
Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.
All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.
LQ150X1LW95 Description:
Report Item / Suspicious Activity
No.1: About Payment Information
We accept Escrow service.
No.2: About Customs Duty & Handling Fee:
For all customers` orders, we do not charge handing fee, even 1pcs part.
When parts arrive at your local custom, if the parts were charged customs duty, we are not responsible for any customs duties or import taxes.
No.3: Abount Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
LQ150X1LW95 FAQ:
Q: Do you accept sample orders for LQ150X1LW95 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of LQ150X1LW95 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for LQ150X1LW95 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of LQ150X1LW95 at a very low value ?
A: Yes , we can . pls inform us before shipping .
LQ150X1LW95 Shipping and Package :
