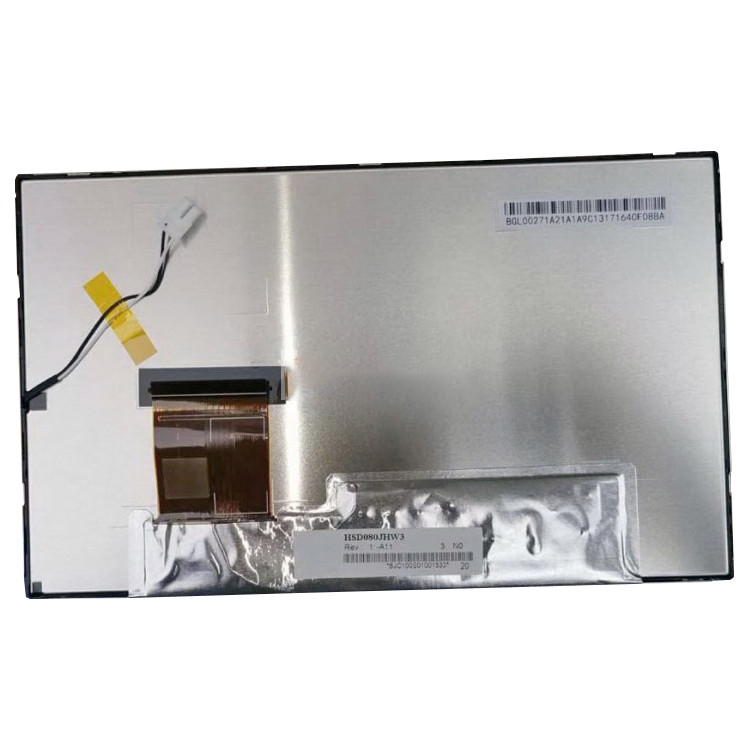

8.0 inch 1280*720 HSD080JHW3-A11 tft screen lcd display tft lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080JHW3-A11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD080JHW3-A11 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 184PPI | Active Area: | 176.64(W)×99.36(H) Mm |
| Luminance: | 1000 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Response Time: | 17/18 (Typ.)(Tr/Td) | Operating Mode: | IPS Pro, Normally Black, Transmissive |
| Interface Type: | LVDS (1 Ch, 6/8-bit) | Designed For: | Outdoor High Brightness / Automotive Display |
Product Description
8.0 inch 1280*720 HSD080JHW3-A11 tft screen lcd display tft lcd panel
HSD080JHW3-A11 Product details :
| HannStar LCD Screen HSD080JHW3-A11 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD080JHW3-A11 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1280(RGB)×720, WXGA 184PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 17/18 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 262K/16.7M |
| Light Source | WLED , W/O Driver |
| Designed For | Outdoor High Brightness / Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 8.0 inch 1280*720 HSD080JHW3-A11 tft screen lcd display tft lcd panel | |
HSD080JHW3-A11 NOTE:
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;
Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.
All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.
HSD080JHW3-A11 Shipping and Package :
HSD080JHW3-A11 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within7 working days after receiving the order.(In special cases, we will extend the delivery of products)
4.Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.Or arrange for alternative products.
5.Please confirm it with us before buying if you need 100% new.
HSD080JHW3-A11 Warranty and Return:
We offer warranty for all of our products.
Buyers bear the shipping cost for returning defective or non-defective item to us.
Return items should be in good condition same as we sent, not damaged.
Returned items are subject to approval by us, it should be in original box as we sent.
Physically damaged items received should be reported within 2 days.
All NON-Seller Mistake returns, there is 15% re-stocking fees and shipping and handling charges are NON-refundable. (E.g. you bought wrong item)
HSD080JHW3-A11 FAQ:
Q: If I place order now,when will you ship the goods of HSD080JHW3-A11 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of HSD080JHW3-A11 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of HSD080JHW3-A11 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
