15.0 lcd display module for Sharp 1024x768 LQ150X1LW12 tft lcd
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ150X1LW12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LW12 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768[XGA] 85PPI | Active Area: | 304.128 × 228.096 Mm (H×V) |
| Outline Size: | 331.6 × 254.76 × 13 Mm (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Luminance: | 350cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Number Of Color: | 262K/16.2M , 72% NTSC | Used For: | Industrial Medical Imaging |
Product Description
15.0 lcd display module for Sharp 1024x768 LQ150X1LW12 tft lcd
LQ150X1LW12 Product details :
| SHARP LCD SCREEN LQ150X1LW12 | |
| Brand | SHARP |
| Model Name | LQ150X1LW12 |
| Diagonal Size | 15.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768[XGA] 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.128 × 228.096 mm (H×V) |
| Bezel Opening | 307.2 × 231.1 mm (H×V) |
| Outline Dim. | 331.6 × 254.76 × 13 mm (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing angle | 85/85/85/85 (Typ.) (CR≥10) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Number of color | 262K/16.2M , 72% NTSC |
| Reaction time | 30 (Typ.)(Tr+Td) |
| Backlight type | WLED ,70K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Designed For | Industrial Medical Imaging |
| Weight | 950g (Max.) |

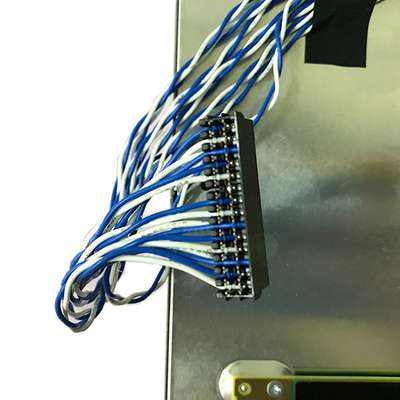

| Interface Type | LVDS (1 ch,8-bit) , terminal, 20 pins |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 65 °C ; Storage temperature: -25 ~ 65 °C |
| 15.0 lcd display module for Sharp 1024x768 LQ150X1LW12 tft lcd | |
LQ150X1LW12 Please Noted:
We are not responsible for any customsduty or import tax .
LQ150X1LW12 Our Company:
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
LQ150X1LW12 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ150X1LW12 Payment and Shipment:
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
LQ150X1LW12 Our advantages:
1: We are all own stock, with adequate supply
2: The quality of the product reached a series of certification
3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.
LQ150X1LW12 FAQ:
Q: How long is the warranty of LQ150X1LW12 ?
A: 90 days warranty .
Q: How can I trace my order of LQ150X1LW12 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LQ150X1LW12 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LQ150X1LW12 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
LQ150X1LW12 Shipping and Package :
