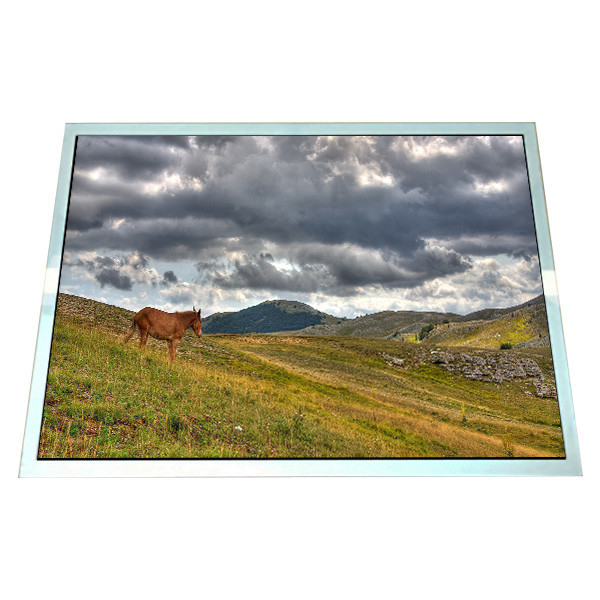

15 inch 1024*768 Industrial TFT LCD Screen LQ150X1LG91
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ150X1LG91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LG91 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)*768, XGA 85PPI | Active Area: | 304.128(H)*228.096(V) Mm |
| Outline Size: | 326(H)*253.5(V) *10.1(D) Mm | Viewing Angle: | 80/80/80/80 (Typ.) (CR≥10) |
| Luminance: | 350cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Number Of Color: | 262K/16.2M , 49% NTSC | Used For: | Industrial |
Product Description
15 inch 1024*768 Industrial TFT LCD Screen LQ150X1LG91
LQ150X1LG91 Product details :
| SHARP LCD SCREEN LQ150X1LG91 | |
| Brand | SHARP |
| Model Name | LQ150X1LG91 |
| Diagonal Size | 15.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 304.128(H)×228.096(V) mm |
| Bezel Opening | 307.2(H)×231.1(V) mm |
| Outline Dim. | 326(H)×253.5(V) ×10.1(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Number of color | 262K/16.2M , 49% NTSC |
| Reaction time | 30 (Typ.)(Tr+Td) ms |
| Backlight type | WLED , 50K hours, no driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Weight | 950gs (Max.) |
| Designed For | Industrial |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C |
| 15 inch 1024*768 Industrial TFT LCD Screen LQ150X1LG91 | |
LQ150X1LG91 We Promise to:
1:Only sell the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
LQ150X1LG91 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ150X1LG91 Payment and Shipment:
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
LQ150X1LG91 Our advantages:
1: We are all own stock, with adequate supply
2: The quality of the product reached a series of certification
3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.
LQ150X1LG91 FAQ:
Q: How do you ship my goods LQ150X1LG91 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen LQ150X1LG91 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LQ150X1LG91 ?
A: 90 days warranty .
LQ150X1LG91 Shipping and Package :
