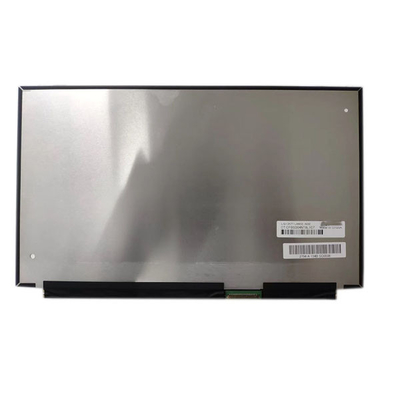

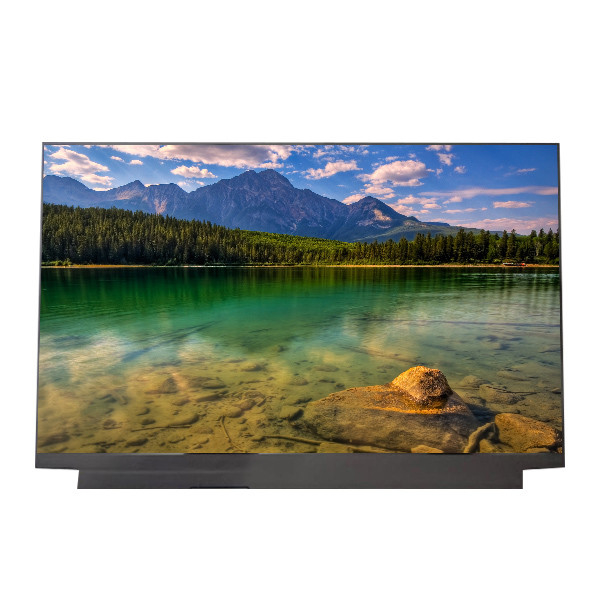

Name: 12.5 Inch LQ125T1JW02 1920*7080 TFT LCD Display Module For Laptop
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LQ125T1JW02
Availability: InStock

Brand Name:	SHARP
Model Number:	LQ125T1JW02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ125T1JW02

Diagonal Size:

12.5"

Resolution:

1920(RGB)×1080 FHD 166PPI

Active Area:

293.76 × 165.24 Mm (H×V)

Outline Size:

282.68 × 178.66 × 2.3mm (H×V×D)

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Luminance:

340cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Number Of Color:

16.7M 72% NTSC

Used For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Highlight:

TFT LCD Laptop Screen

12.5inch LCD Laptop Screen

LQ125T1JW02 TFT LCD Display

Product Description

12.5 inch LQ125T1JW02 1920*7080 TFT LCD Display Module for Laptop

LQ125T1JW02 Product details :

SHARP LCD SCREEN LQ125T1JW02
Brand	SHARP
Model Name	LQ125T1JW02
Diagonal Size	12.5 inch
Screen type	LCM, a-Si TFT-LCD
Resolution	1920(RGB)×1080 FHD 166PPI
Pixel configuration	RGB Vertical Stripe
Display size	276.48 × 155.52 mm (H×V)
Outline(mm)	282.68 × 178.66 × 2.3mm (H×V×D)
Treatment	Antiglare, Hard coating (2H)
Brightness	340 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing angle	89/89/89/89 (Typ.)(CR≥10)
Work Mode	IPS, Normally Black, Transmissive
Number of color	16.7M 72% NTSC
Reaction time	25 (Typ.)(Tr+Td) ms
Backlight type	WLED , 15K hours, with LED driver
Refresh rate	60Hz
Touch function	Without
Used for	Laptop
Signal	40 pins eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane)
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C
12.5 inch LQ125T1JW02 1920*7080 TFT LCD Display Module for Laptop

LQ125T1JW02 Our advantages:

1: We are all own stock, with adequate supply

2: The quality of the product reached a series of certification

3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.

LQ125T1JW02 Payment and Shipment:

1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW

2. Item will be shipped out within 1-3 days.

3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.

4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.

5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)

LQ125T1JW02 Guarantee and Refund

1. All items are in good condition.

2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 12 months )

3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.

LQ125T1JW02 FAQ:

Q: Can you tested the LQ125T1JW02 before shipping ?

A: Of course , our lcd panel LQ125T1JW02 was Strictly tested before shipping.

Q: How to order SHARP LQ125T1JW02 ?

A: We accept T/T , Paypal , western union .

Q: How long the warranty of the lcd LQ125T1JW02 ?

A: 90 days .

Q: What happen if the lcd panel LQ125T1JW02 I received can't work ?

A: LQ125T1JW02 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

LQ125T1JW02 Shipping and Package :
