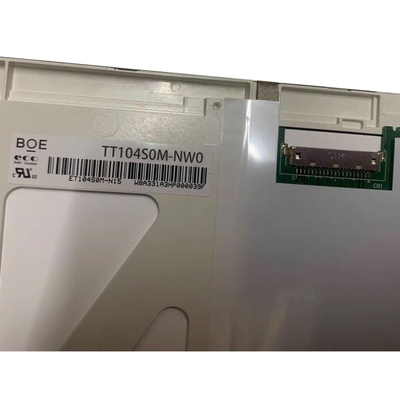

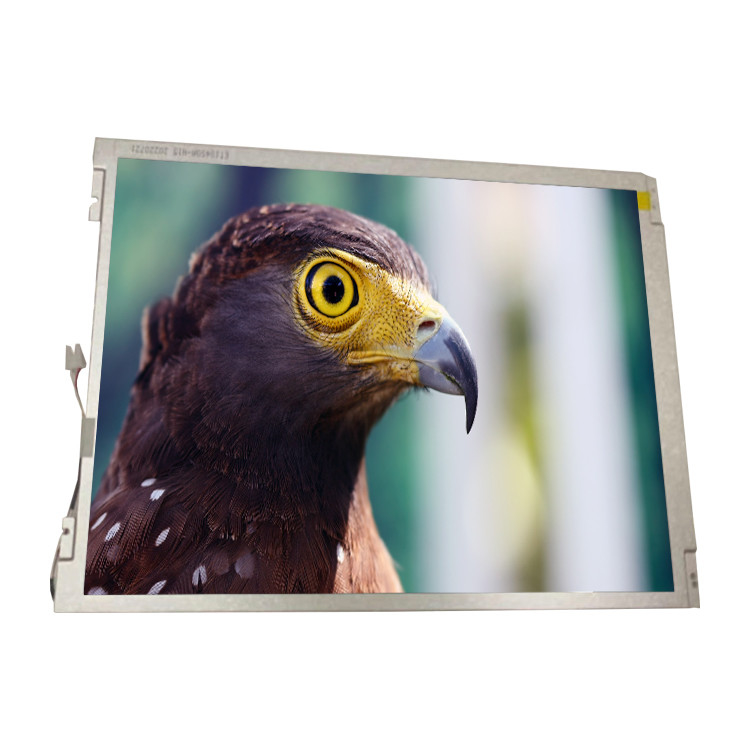

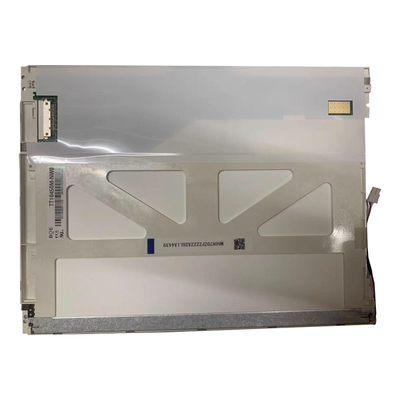

Original BOE 10.4 inch 800*600 Resolution LCD Display Module TT104S0M-NW0
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TT104S0M-NW0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TT104S0M-NW0 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.0(W)×162.0(H) Mm | Outline(mm): | 236 × 176.9 × 5.9 (H×V×D) |
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Mass: | 290g (Typ.) | Used For: | Industrial / Medical Imaging |
Product Description
Original BOE 10.4 inch 800*600 Resolution LCD Display Module TT104S0M-NW0
TT104S0M-NW0 Product details :
| BOE LCD Screen TT104S0M-NW0 | |
|---|---|
| Brand | BOE |
| Model P/N | TT104S0M-NW0 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.0(W)×162.0(H) mm |
| Outline(mm) | 236 × 176.9 × 5.9 (H×V×D) |
| Treatment | Clear |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 50% NTSC |
| Backlight | 6S4P WLED , 30K hours , No Driver |
| Mass | 290g (Typ.) |
| Used for | Industrial / Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Original BOE 10.4 inch 800*600 Resolution LCD Display Module TT104S0M-NW0 | |
