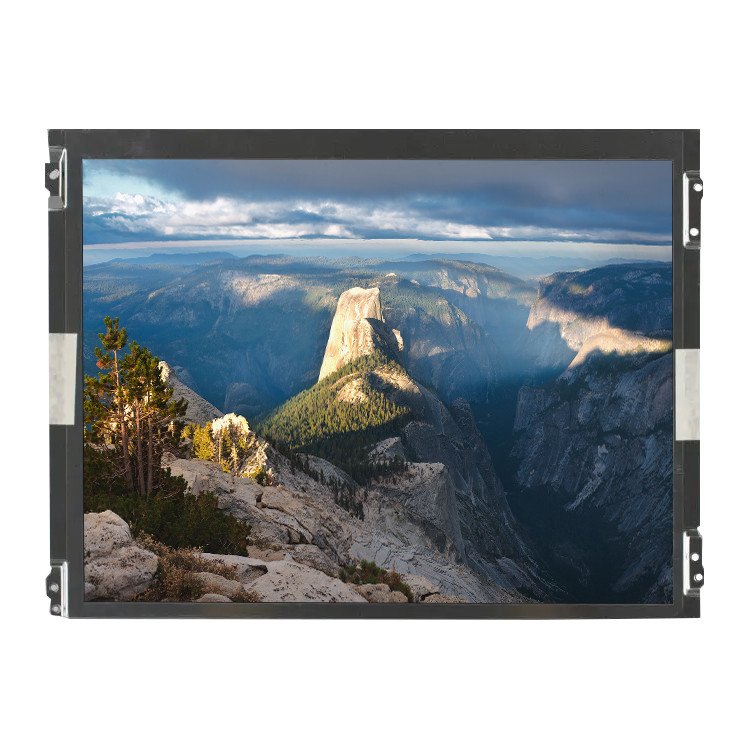

TT121S0M-NW0 12.1 inch 800*600 LCD DISPLAY Screen PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TT121S0M-NW0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TT121S0M-NW0 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.05(W)×188.30(H) Mm | Outline Dim.: | 279(W)×209(H)×9.3(D) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Weight: | 500g (Max.) | Designed For: | Industrial / Medical Imaging |
Product Description
TT121S0M-NW0 12.1 inch 800*600 LCD DISPLAY Screen PANEL
TT121S0M-NW0 Product details :
| BOE LCD Screen TT121S0M-NW0 | |
|---|---|
| Brand | BOE |
| Model P/N | TT121S0M-NW0 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.05(W)×188.30(H) mm |
| Outline Dim. | 279(W)×209(H)×9.3(D) mm |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 55% NTSC |
| Light Source | WLED [9S2P] , 50K hours , With LED Driver |
| Weight | 500g (Max.) |
| Designed For | Industrial / Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| TT121S0M-NW0 12.1 inch 800*600 LCD DISPLAY Screen PANEL | |
