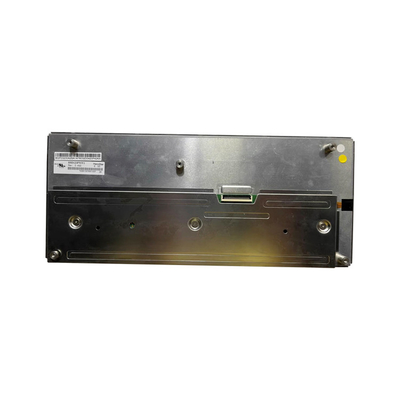

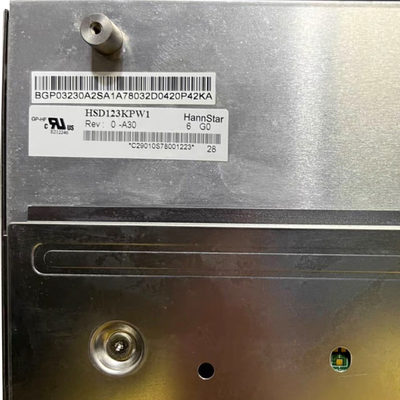

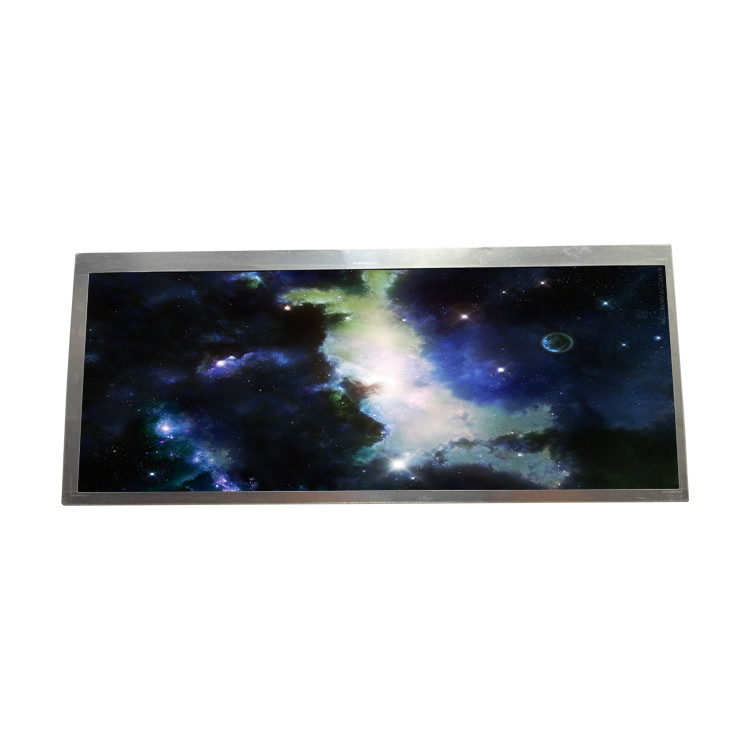

ORIGINAL 12.3 inch HSD123PWW1-A30 FOR AUO LCD DISPLAY SCREEN PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123PWW1-A30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD123PWW1-A30 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Bezel Opening: | 294.8(W)×112.1(H) Mm | Outline Dim.: | 308.1(H)×130(V) ×15.1(D) Mm |
| Luminance: | 850 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Weight: | 520g (Typ.) | Designed For: | Outdoor High Brightness / Automotive Display |
Product Description
ORIGINAL 12.3 inch HSD123PWW1-A30 FOR AUO LCD DISPLAY SCREEN PANEL
HSD123PWW1-A30 Product details :
| HannStar LCD Screen HSD123PWW1-A30 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD123PWW1-A30 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Bezel Opening | 294.8(W)×112.1(H) mm |
| Outline Dim. | 308.1(H)×130(V) ×15.1(D) mm |
| Treatment | Antiglare |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 17/18 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | WLED [11S4P] , 3K hours , W/O Driver |
| Weight | 520g (Typ.) |
| Designed For | Outdoor High Brightness / Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| ORIGINAL 12.3 inch HSD123PWW1-A30 FOR AUO LCD DISPLAY SCREEN PANEL | |
