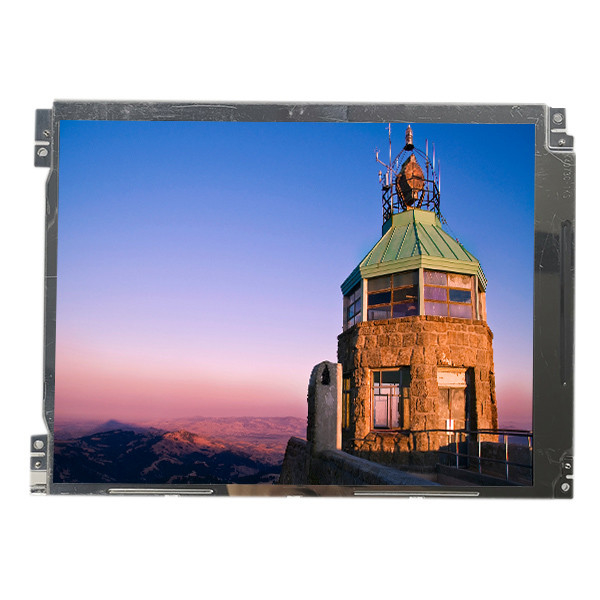

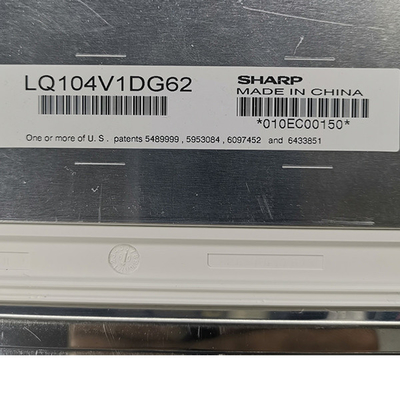

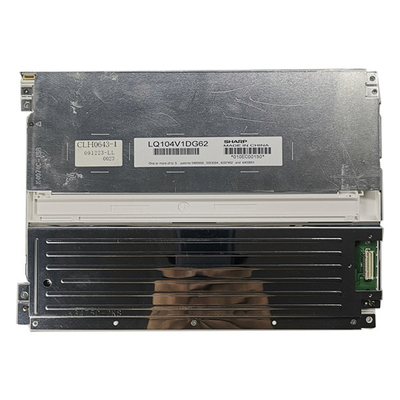

10.4inch 640*480 tft lcd display LQ104V1DG62 Industrial lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ104V1DG62 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104V1DG62 | Diagonal Size: | 10.4inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 [VGA] 76PPI | Active Area: | 211.2 × 158.4 Mm (H×V) |
| Outline Dim.: | 246.5 × 179.4 × 12.5 Mm (H×V×D) | Luminance: | 550 Cd/m² (Typ.) |
| Contrast Ratio: | 600:1 (Typ.) (TM) | Response Time: | 10/25 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Application: | Industrial |
Product Description
LQ104V1DG61 10.4inch Industrial TFT LCD Screen Display Panel
LQ104V1DG62 Product details :
| SHARP LCD SCREEN LQ104V1DG62 | |
| Brand | SHARP |
| Model Name | LQ104V1DG62 |
| Diagonal Size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 mm (H×V) |
| Outline (mm) | 246.5 × 179.4 × 12.5 mm (H×V×D) |
| Bezel Opening | 214.6 × 162.4 mm (H×V) |
| Contrast | Matte, Hard coating (3H) |
| Display | 550 cd/m² (Typ.) |
| contrast | 600:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/50/60 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Number of color | 262K , 40% NTSC |
| Reaction time | 10/25 (Typ.)(Tr/Td) ms |
| Backlight type | 6S3P WLED , 50K hours , No Driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Used for | Industrial |
| Panel weight | 580g (Max.) |
| Signal | LVDS (1 ch, 6-bit) , 31 pins , terminal |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| 10.4inch 640*480 tft lcd display LQ104V1DG62 Industrial lcd panel | |
LQ104V1DG62 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ104V1DG62 Delivery time:
Your parcel will be shipped out within 1-3 workdays after your payment cleared.
LQ104V1DG62 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LQ104V1DG62 Quality & Warranty and customes free:
1. If you have any problems within 1 months after you get your item,you can talk to us,we will try our best to offer you a best solution.
2. If you buy the wrong items or you don't want the item that you bought,you can return it back to us within 3 days,but you should offer the shipping fee.
3. We will be the best price to sell you the product, the price does not include customs fees, if the parcel caused by customs costs, you should pay their own.
4. If you did not receive the package after delivery, please contact us, we will handle your problem.
LQ104V1DG62 FAQ:
Q: Can you give me a discount if I need a large quantity of LQ104V1DG62 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LQ104V1DG62 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LQ104V1DG62 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LQ104V1DG62 ?
A: Of course!sample order is welcome !
LQ104V1DG62 Shipping and Package :
