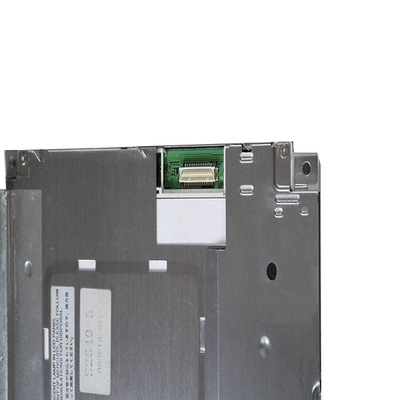

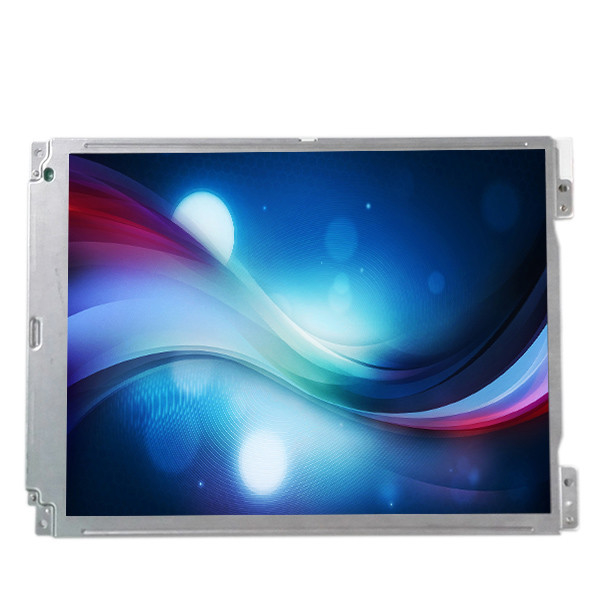

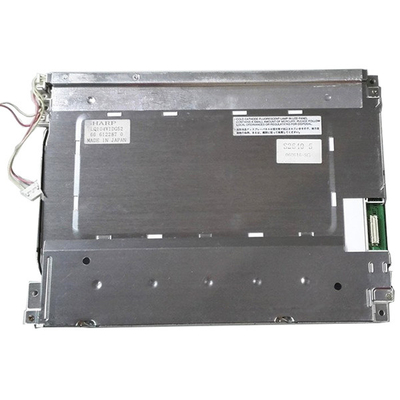

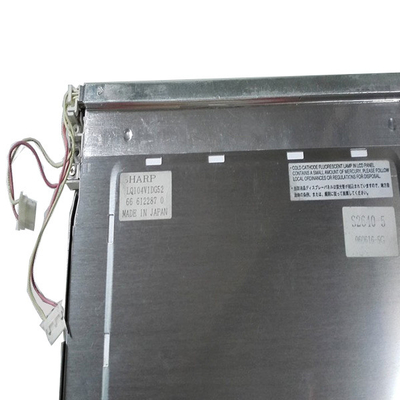

10.4 inch 640x480 LQ104V1DG52 panel lcd screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ104V1DG52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104V1DG52 | Diagonal Size: | 10.4inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 [VGA] 76PPI | Active Area: | 211.2 × 158.4 Mm (H×V) |
| Outline Dim.: | 246.5 × 179.4 × 15.5 Mm (H×V×D) | Luminance: | 350 Cd/m² (Typ.) |
| Contrast Ratio: | 300:1 (Typ.) (TM) | Response Time: | 10/25 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 70/70/40/70 (Typ.)(CR≥10) | Application: | Industrial |
Product Description
10.4 inch 640x480 LQ104V1DG52 panel lcd screen display
LQ104V1DG52 Product details :
| SHARP LCD SCREEN LQ104V1DG52 | |
| Brand | SHARP |
| Model Name | LQ104V1DG52 |
| Diagonal Size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 mm (H×V) |
| Outline Size | 246.5 × 179.4 × 15.5 mm (H×V×D) |
| Bezel Opening | 214.6 × 162.4 mm (H×V) |
| Contrast | Matte, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/40/70 (Typ.)(CR≥10) |
| Display Colors | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 10/25 (Typ.)(Tr/Td) ms |
| Backlight type | 2 pcs CCFL , 50K hours , Without Driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Application | Industrial |
| Weight | 620g (Max.) |
| Signal Interface | LVDS (1 ch, 6-bit) , 31 pins , terminal |
| Input Voltage | 3.3/5.0V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| 10.4 inch 640x480 LQ104V1DG52 panel lcd screen display | |
