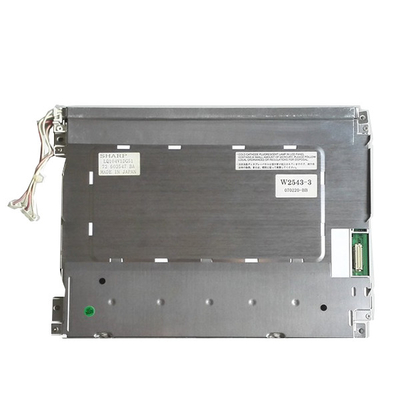

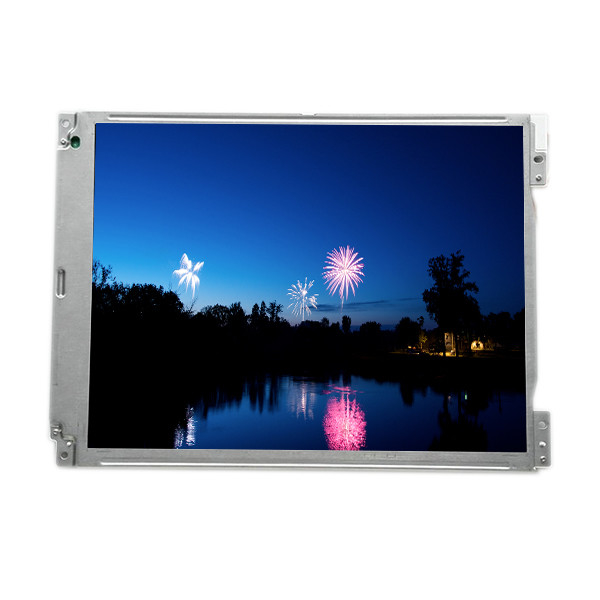

Industrial Display 31 pin 10.4 inch TFT LCD Panel LQ104V1DG51
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ104V1DG51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104V1DG51 | Diagonal Size: | 10.4" (Native Bar) |
|---|---|---|---|
| Resolution: | 640(RGB)×480 [VGA] 76PPI | Active Area: | 211.2 × 158.4 Mm (H×V) |
| Outline Dim.: | 246.5 × 179.4 × 15.5 Mm (H×V×D) | Luminance: | 350 Cd/m² (Typ.) |
| Contrast Ratio: | 300:1 (Typ.) (TM) | Response Time: | 20/40 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 70/70/40/70 (Typ.)(CR≥10) | Application: | Industrial |
Product Description
Industrial Display 31 pin 10.4 inch TFT LCD Panel LQ104V1DG51
LQ104V1DG51 Product details :

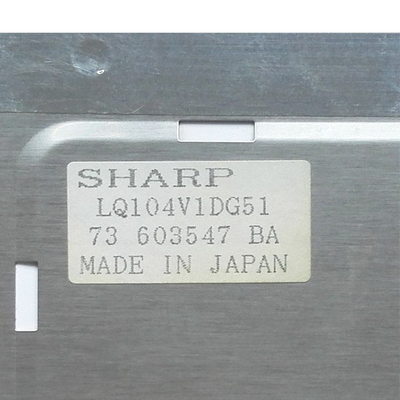

| SHARP LCD SCREEN LQ104V1DG51 | |
| Brand | SHARP |
| Model Name | LQ104V1DG51 |
| Diagonal Size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 mm (H×V) |
| Outline Dim. | 246.5 × 179.4 × 15.5 mm (H×V×D) |
| Bezel Opening | 214.6 × 162.4 mm (H×V) |
| Contrast | Antiglare, Hard coating (3H), Antireflection |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing angle | 70/70/40/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 20/40 (Typ.)(Tr/Td) ms |
| Backlight type | CCFL [2 pcs] , 50K hours , W/O Driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Designed For | Industrial |
| Panel weight | 620g (Max.) |

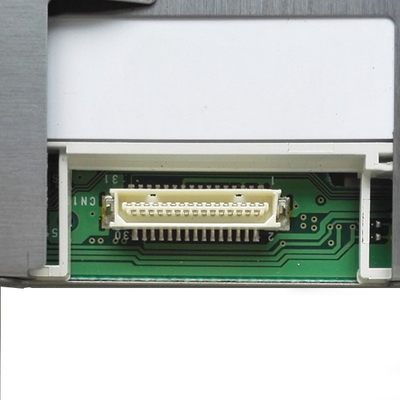

| Interface Type | Parallel RGB (1 ch, 6-bit) , 31 pins Connector |
| Power Supply | 3.3/5.0V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| Industrial Display 31 pin 10.4 inch TFT LCD Panel LQ104V1DG51 | |
LQ104V1DG51 Delivery time:
Your parcel will be shipped out within 1-3 workdays after your payment cleared.
LQ104V1DG51 Package and shippingtime:
We have a professional team of packs that will pack your package more robustly and let it reach you safely, so you do not have to worry about it.
1. epacket:It usual takes 10-20 workdays to get the parcel.
2. EMS:It usual takes 7-10 workdays to get the parcels.
3. DHL:It usual takes 5-7 workdays to get the parcel.
4. China post :It usual takes 15-40 workdays,Brazil will maybe take more days to get the parcel.
LQ104V1DG51 Warranty Policy:
All products come with a 60 days replacement-only warranty against technical issues. This warranty does not cover any damage or improper installation caused by consumer. Any kind of product modification done by buyer will void the warranty.
LQ104V1DG51 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of LQ104V1DG51 ?
A: Yes, Welcome !
Q: How long the warranty of LQ104V1DG51 ?
A: 90 days .
Q: What happen if the LQ104V1DG51 received can't work ?
A: Our LQ104V1DG51 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
