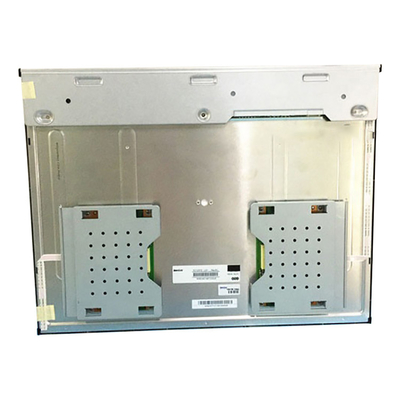

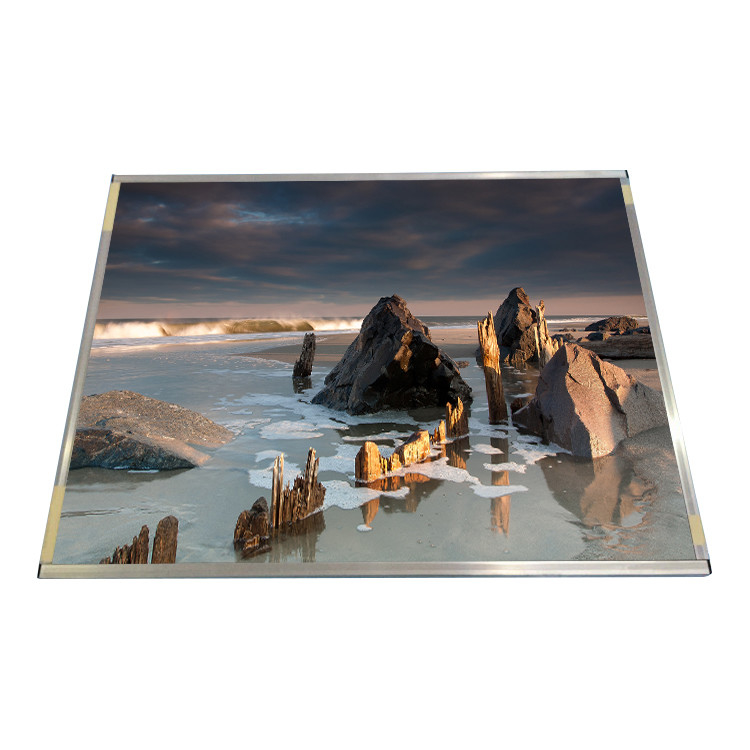

Outdoor High Brightness 21.3 inch EV213U0M-N10 1600*1200 Resolution LCD Panel LVDS 30 Pins Interface Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | EV213U0M-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EV213U0M-N10 | Diagonal Size: | 21.3" |
|---|---|---|---|
| Resolution: | 1600(LCR)×1200, UXGA 94PPI | Active Area: | 432(W)×324(H) Mm |
| Bezel Opening: | 438.2(W)×330(H) Mm | Outline Size: | 457(W)×350(H) ×17.3(D) Mm |
| Brightness: | 2000 Cd/m² (Typ.) | Display Colors: | Grayscale |
| Panel Weight: | 1.80Kgs (Typ.) | Application: | Medical Imaging |
Product Description
Outdoor High Brightness 21.3 inch EV213U0M-N10 1600*1200 Resolution LCD Panel LVDS 30 Pins Interface Screen
EV213U0M-N10 Product details :
| BOE LCD Screen EV213U0M-N10 | |
|---|---|
| Brand | BOE |
| Model P/N | EV213U0M-N10 |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(LCR)×1200, UXGA 94PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 432(W)×324(H) mm |
| Bezel Opening | 438.2(W)×330(H) mm |
| Outline Size | 457(W)×350(H) ×17.3(D) mm |
| Surface | Antiglare (Haze 45%) |
| Brightness | 2000 cd/m² (Typ.) |
| Contrast Ratio | 1800:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) |
| Display Colors | Grayscale |
| Lamp Type | WLED , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.80Kgs (Typ.) |
| Application | Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Outdoor High Brightness 21.3 inch EV213U0M-N10 1600*1200 Resolution LCD Panel LVDS 30 Pins Interface Screen | |
EV213U0M-N10 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
EV213U0M-N10 Shipping and Package :
EV213U0M-N10 SHIPPING&HANDING:
1.Make sure your shipping address and phone information is correct.
2.HK POST, SG POST, DHL. FEDEX,TNT, UPS and EMS are available.
3.We will provide the tracking number for all shipping method. You can follow her on her official website.follow them on their?
4.Brazil buyers need to provide cpf number in advance if you choose DHL or UPS, otherwise, we have to ship through EMS.
5.Except HK Post HK only use EMS for buyers from Russia.
6.All buyers have to pay the extra fee for remote dhl area service,UPS or Fedex, but there is noneed for EMS.
EV213U0M-N10 About us:
Our main products are 3.5inch~23inch lcd display,lcd panel,lcd screen ,and industrial display. We have many brands (SHARP,NEC,AUO,HITACHI,LG,TOSHIBA ,Kyocera,etc.) lcd in stock ,They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc.Besides, We also offer Touch Screen ,PLC ,Servo motor/drive, Keyboard, Encoder,etc.,Welcome to order!
We pursue AIM of "Quality is superior, Service is supreme, Reputation is first".
Our products sell well in international markets, such as America, Germany, United Kingdom,Mexico,Brazil, etc.,
EV213U0M-N10 FAQ:
Q: How long will I receive my goods EV213U0M-N10?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of EV213U0M-N10?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of EV213U0M-N10?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
