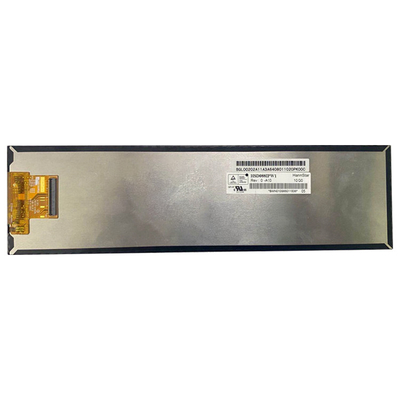

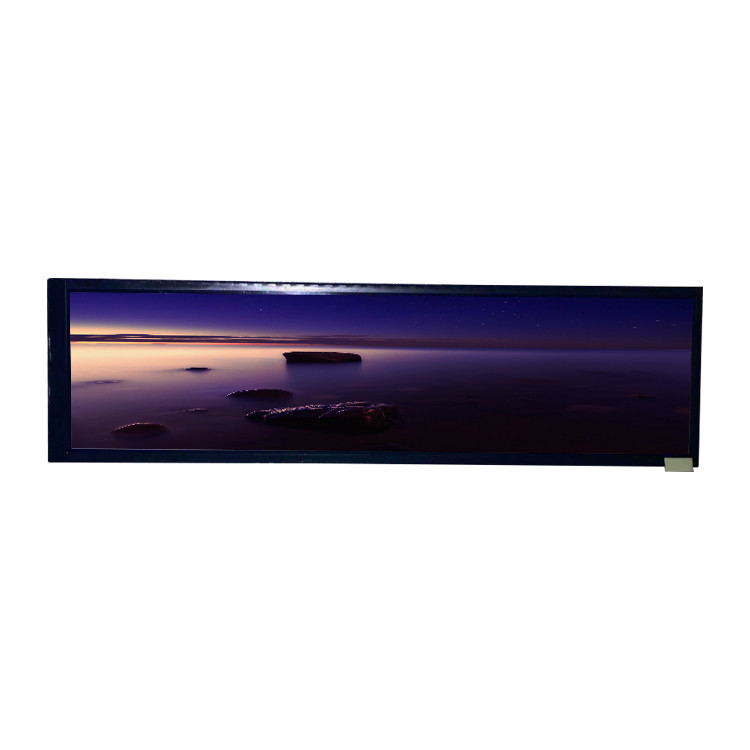

Original HSD088KPW1-A10 8.8 Inch 1920*480 Full View Stretched Bar LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD088KPW1-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD088KPW1-A10 | Diagonal Size: | 8.8" (Native Bar) |
|---|---|---|---|
| Resolution: | 1920×480(RGB) 222PPI | Active Area: | 218.88(W)×54.72(H) Mm |
| Outline Dim.: | 231.3(W)×64.3(H)×5.1(D) Mm | Luminance: | 600 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | View Direction: | Symmetry |
| Weight: | 110g (Typ.) | Designed For: | Stretched Bar LCD / Automotive Display |
| High Light: | Full View Stretched Bar LCD,HSD088KPW1-A10 Stretched Bar LCD,Symmetry Stretched Bar Display |
||
Product Description
Original HSD088KPW1-A10 8.8 inch 1920*480 Full View Stretched Bar LCD Screen
HSD088KPW1-A10 Product details :
| HannStar LCD Screen HSD088KPW1-A10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD088KPW1-A10 |
| Diagonal Size | 8.8" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920×480(RGB) 222PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 218.88(W)×54.72(H) mm |
| Outline(mm) | 231.3(W)×64.3(H)×5.1(D) |
| Treatment | Hard coating |
| Luminance | 600 (Typ.)(cd/m²) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 40 (Typ.)(Tr+Td) ms |
| Color Depth | 16.7M 50% NTSC |
| Backlight | WLED , 30K hours , No Driver |
| Mass | 110g (Typ.) |
| Used for | Stretched Bar LCD / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , 40 pins Connector |
| Voltage Supply | 3.3/12.0/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Original HSD088KPW1-A10 8.8 inch 1920*480 Full View Stretched Bar LCD Screen | |
