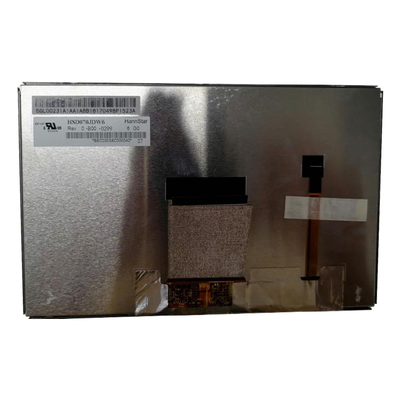

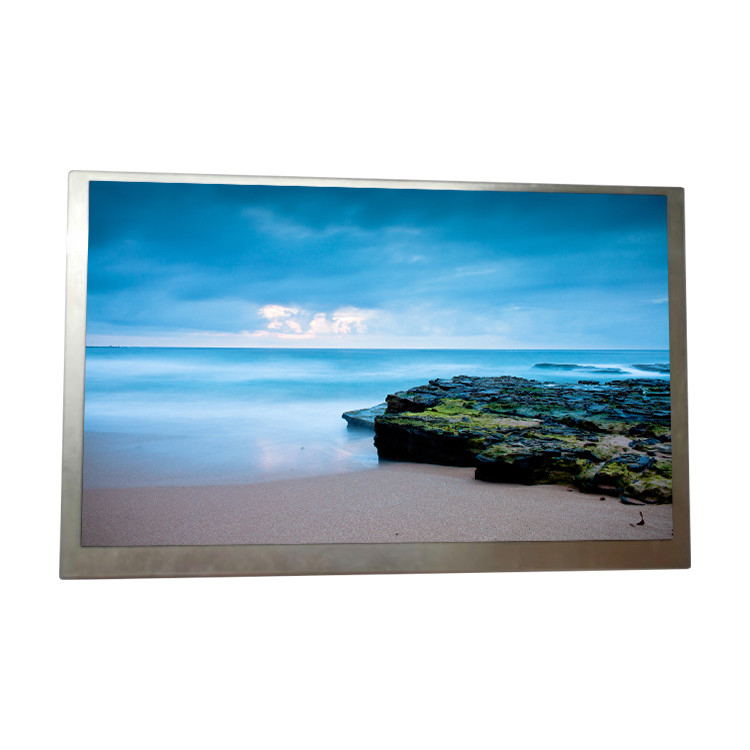

HannStar LCD Screen HSD070JDW6-B00-0299 7.0 inch 800*480 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070JDW6-B00-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070JDW6-B00-0299 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Outline Size: | 159.7(W)×101.5(H) ×1.27(D) Mm | Surface: | Hard Coating (3H) |
| View Direction: | Symmetry | Response Time: | 30 (Typ.)(Tr+Td) |
| Transmittance: | 3.8% (Typ.)(with Polarizer) | Designed For: | Automotive Display / Portable DVD Player |
Product Description
HannStar LCD Screen HSD070JDW6-B00-0299 7.0 inch 800*480 LCD Display Panel
HSD070JDW6-B00-0299 Product details :
| HannStar LCD Screen HSD070JDW6-B00-0299 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070JDW6-B00-0299 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Outline Dim. | 159.7(H)×101.5(V) ×1.27(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Transmittance | 3.8% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70% NTSC |
| Light Source | No B/L |
| Designed For | Automotive Display / Portable DVD Player |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 1 source + 1 gate chips |
| Interface Type | Parallel RGB (1 ch, 8-bit) + SPI , 60 pins FPC |
| Power Supply | 3.3/12.4/19/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| HannStar LCD Screen HSD070JDW6-B00-0299 7.0 inch 800*480 LCD Display Panel | |
HSD070JDW6-B00-0299 Kindly Reminder :
1.If the number of the need for more, please contact us, we will help you to arrange more quantity
2.we ship it by DHL /Fedex /UPS /EMS to all the customer,it arrive you in 3-4 days,and some country may be need to pay some duty fees, It depend on the receiver’s country policy.
3.If you need me to ship it by low fees courier and not custom fees,you can inform us so that we can help you choose to ship it by HK post,but it need to arrive you in 15-20 day.
4.we warranty our products for you.
HSD070JDW6-B00-0299 Shipping and Package :
HSD070JDW6-B00-0299 Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
HSD070JDW6-B00-0299 Warm tip:
if you are Indian ,Russian ,Brazil or Belarus customers ,
suggest you chose EMS ,or china post air mail,or HK china post air mail,
it's better for helping you to clear customs.
Before your payment we will check the shipping cost with you,DHL,EMS,UPS
and Fedex if can send your position ,you can choose one you need.
HSD070JDW6-B00-0299 FAQ:
Q: How long will I receive my goods HSD070JDW6-B00-0299 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD070JDW6-B00-0299 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of HSD070JDW6-B00-0299 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of HSD070JDW6-B00-0299 to a lower price in commercial invoice for customs ?
A: Yes , we can pls. inform us before shipping .
