10.4inch LCM 640x480 CCFL TTL LQ104V1DG5B LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ104V1DG5B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104V1DG5B | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480 [VGA] 76PPI | Active Area: | 211.2 × 158.4 Mm (H×V) |
| Outline Dim.: | 246.5 × 179.4 × 15.5 Mm (H×V×D) | Viewing Angle: | 70/70/40/70 (Typ.)(CR≥10) |
| Luminance: | 350 Cd/m² (Typ.) | Contrast Ratio: | 350:1 (Typ.) (TM) |
| Reaction Time: | 10/25(Typ.)(Tr/Td) Ms | Used For: | Industrial |
Product Description

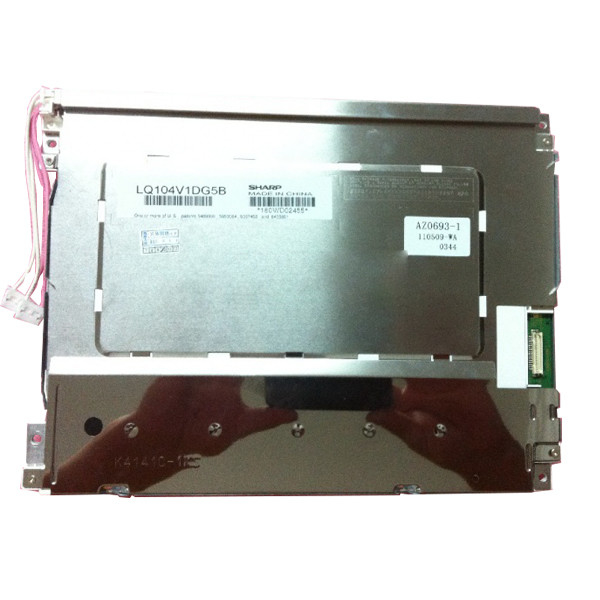

10.4inch LCM 640x480 CCFL TTL LQ104V1DG5B LCD Display
LQ104V1DG5B Product details :
| SHARP LCD SCREEN LQ104V1DG5B | |
| Brand | SHARP |
| Model Name | LQ104V1DG5B |
| Diagonal Size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 mm (H×V) |
| Outline (mm) | 246.5 × 179.4 × 15.5 mm (H×V×D) |
| Bezel Opening | 214.6 × 162.4 mm (H×V) |
| Contrast | Matte, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 350:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/40/70 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 10/25(Typ.)(Tr/Td) ms |
| Backlight type | 2 pcs CCFL , 50K hours, |
| Refresh rate | 60Hz |
| Touch function | Without |
| Used for | Industrial |
| Panel weight | 620g (Max.) |
| Signal | Parallel RGB (1 ch, 6-bit) , Connector 31 pins |
| Voltage Supply | 3.3/5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 65 °C |
| 10.4inch LCM 640x480 CCFL TTL LQ104V1DG5B LCD Display | |
LQ104V1DG5B Helpful Information:
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
Please confirm it with us before buying if you need 100% new products only.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
LQ104V1DG5B Payment:
Payment must be made within 12 days after the auction/bid ends, or eBay will open Unpaid Item case automatically later.
LQ104V1DG5B About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
LQ104V1DG5B Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LQ104V1DG5B Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
LQ104V1DG5B FAQ:
Q: How long will I receive my goods LQ104V1DG5B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of LQ104V1DG5B ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: How to make payment of LQ104V1DG5B ?
A: We accept T/T , Paypal , western union .
LQ104V1DG5B Shipping and Package :
