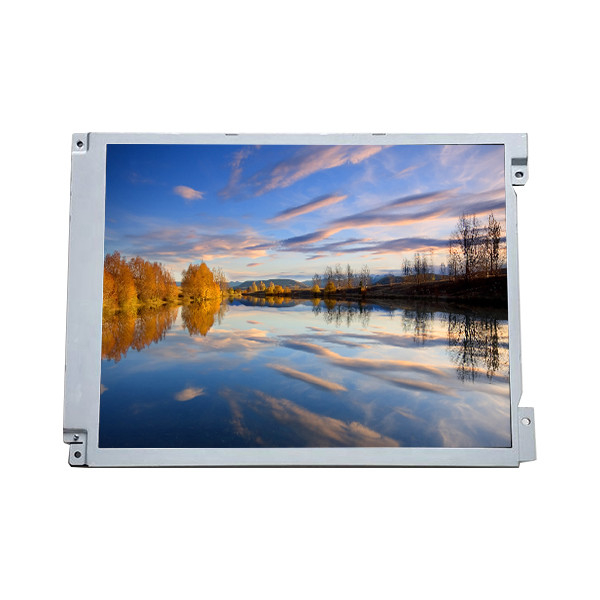

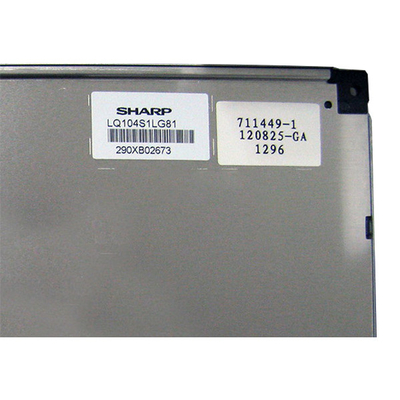

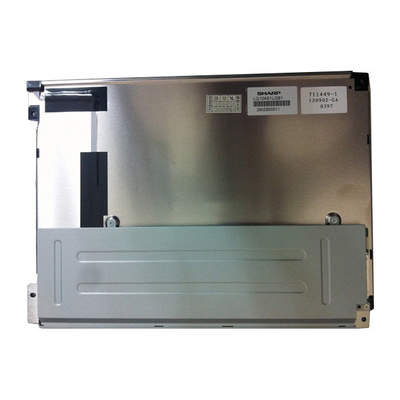

10.4 inch 800*600 lcd display a-si TFT lcd panel LQ104S1LG81
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ104S1LG81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104S1LG81 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600 SVGA 96PPI | Active Area: | 211.2 × 158.4 Mm (H×V) |
| Outline Dim.: | 246.5 × 179.3× 13 Mm (H×V×D) | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |
| Luminance: | 420 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Reaction Time: | 35(Typ.)(Tr/Td) Ms | Used For: | Industrial |
Product Description
10.4 inch 800*600 lcd display a-si TFT lcd panel LQ104S1LG81
LQ104S1LG81 Product details :
| SHARP LCD SCREEN LQ104S1LG81 | |
| Brand | SHARP |
| Model Name | LQ104S1LG81 |
| Diagonal Size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 mm (H×V) |
| Outline Dim. | 246.5 × 179.3× 13 mm (H×V×D) |
| Bezel Opening | 214.6 × 162.4 mm (H×V) |
| Contrast | Matte, Hard coating (3H) |
| Luminance | 420 cd/m² (Typ.) |
| View Direction | 600:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Number of color | 262K , 42% NTSC |
| Reaction time | 35(Typ.)(Tr/Td) ms |
| Backlight type | 2 pcs CCFL , 50K hours, |
| Refresh rate | 60Hz |
| Touch function | Without |
| Designed For | Industrial |
| Panel weight | 500g (Max.) |
| Interface Type | LVDS (1 ch, 6-bit) , 20 pins , terminal |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| 10.4 inch 800*600 lcd display a-si TFT lcd panel LQ104S1LG81 | |
LQ104S1LG81 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ104S1LG81 Payment:
Payment must be made within 12 days after the auction/bid ends, or eBay will open Unpaid Item case automatically later.
LQ104S1LG81 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
LQ104S1LG81 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LQ104S1LG81 Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
LQ104S1LG81 FAQ:
Q: How to make payment of LQ104S1LG81 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of LQ104S1LG81 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LQ104S1LG81 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LQ104S1LG81 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LQ104S1LG81 Shipping and Package :
