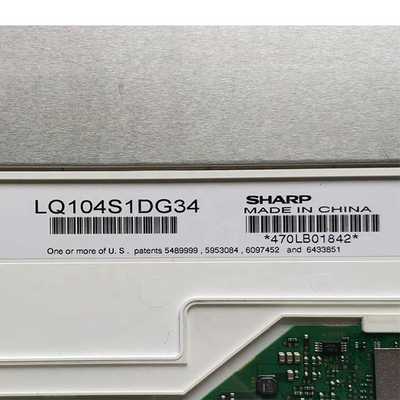

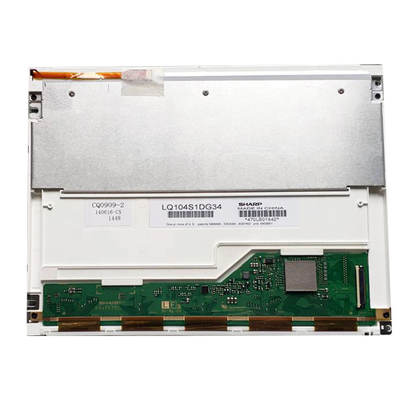

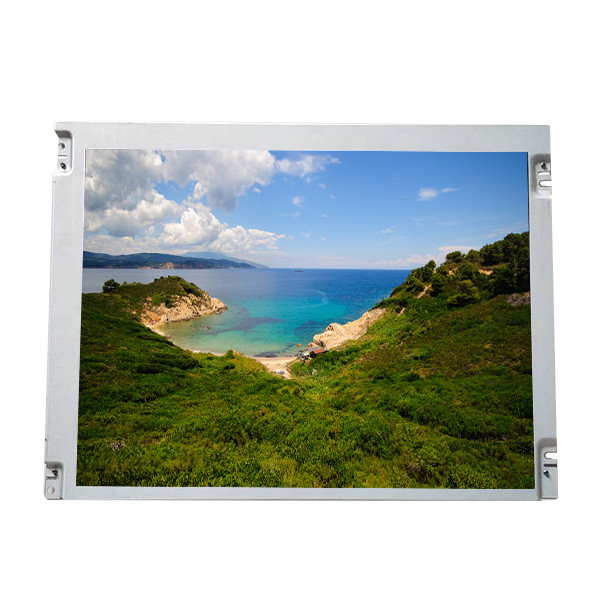

10.4 inch 800*600 96 PPI LQ104S1DG34 40 pins LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ104S1DG34 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104S1DG34 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600 SVGA 96PPI | Active Area: | 211.2 × 158.4 Mm (H×V) |
| Outline Dim.: | 246.3× 183.8× 9.5 Mm (H×V×D) | Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Reaction Time: | 10/25 (Typ.)(Tr/Td) Ms | Used For: | Industrial |
Product Description
10.4 inch 800*600 96 PPI LQ104S1DG34 40 pins LCD Display Screen
LQ104S1DG34 Product details :
| SHARP LCD SCREEN LQ104S1DG34 | |
| Brand | SHARP |
| Model Name | LQ104S1DG34 |
| Diagonal Size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 mm (H×V) |
| Outline Size | 246.3× 183.8× 9.5 mm (H×V×D) |
| Bezel Opening | 215.4 × 162.4 mm (H×V) |
| Contrast | Matte, Hard coating (3H) |
| Display | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Number of color | 262K |
| Reaction time | 10/25 (Typ.)(Tr/Td) ms |
| Backlight type | 10S3P WLED , 25K hours , Without Driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Panel weight | 500g (Max.) |
| Application | Industrial |
| Signal | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 75 °C ; Storage Temp.: -25 ~ 75 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 10.4 inch 800*600 96 PPI LQ104S1DG34 40 pins LCD Display Screen | |
