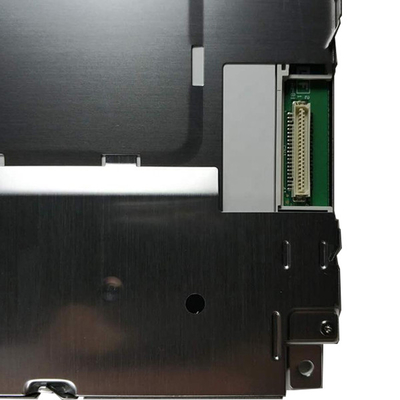

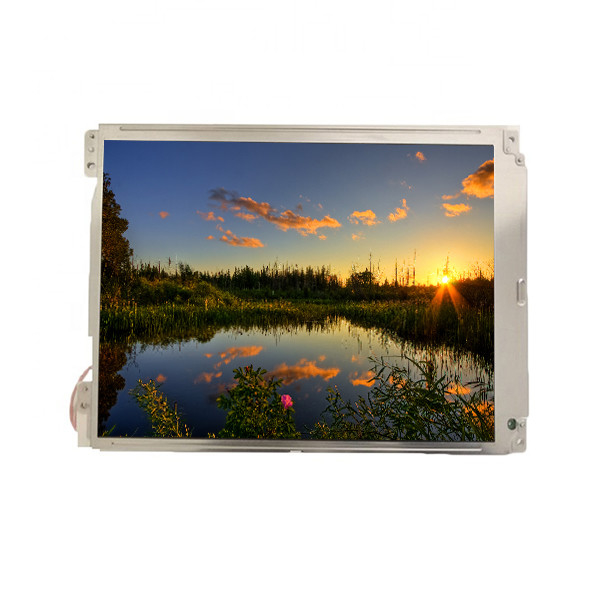

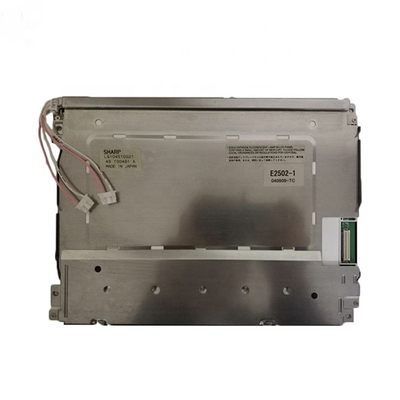

10.4 inch 800*600 LQ104S1DG21 tft lcd display module
Product Details:
| Place of Origin: | China |
| Brand Name: | SHARP |
| Model Number: | LQ104S1DG21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ104S1DG21 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600 SVGA 96PPI | Active Area: | 211.2 × 158.4 Mm (H×V) |
| Outline Dim.: | 246.3× 179.4 Mm (H×V) | Viewing Angle: | 70/70/40/70 (Typ.)(CR≥10) |
| Luminance: | 350 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Reaction Time: | 10/25 (Typ.)(Tr/Td) Ms | Used For: | Industrial |
Product Description
10.4 inch 800*600 LQ104S1DG21 tft lcd display module
LQ104S1DG21 Product details :
| SHARP LCD SCREEN LQ104S1DG21 | |
| Brand | SHARP |
| Model Name | LQ104S1DG21 |
| Diagonal Size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 211.2 × 158.4 mm (H×V) |
| Outline Size | 246.3× 179.4 mm (H×V) |
| Bezel Opening | 214.6 × 162.4 mm (H×V) |
| Surface | Antiglare, Hard coating (3H), Antireflection |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/40/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Best View on | 6 o'clock |
| Reaction time | 10/25 (Typ.)(Tr/Td) ms |
| Backlight type | 2 pcs CCFL , 50K hours , Without Driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Panel weight | 620g (Max.) |
| Application | Industrial |
| Signal Interface | CMOS (1 ch, 6-bit) , 41 pins Connector |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C |
| 10.4 inch 800*600 LQ104S1DG21 tft lcd display module | |
LQ104S1DG21 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
LQ104S1DG21 Payment:
Payment must be made within 12 days after the auction/bid ends, or eBay will open Unpaid Item case automatically later.
LQ104S1DG21 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
LQ104S1DG21 After-sales service:
1. We promise to guarantee the goods for 90 days, and the freight of return shall be borne by the buyer.
2. Damage caused by human factors and natural disasters will not be covered by our warranty. For example: improper installation, bayonet, pipe damage, feed, etc... The goods sold in the stores are labeled with fragile warranty, if the warranty label is torn. Disconnection or loss will be considered a waiver of warranty and we accept no liability. Please pay attention!
LQ104S1DG21 FAQ:
Q: How do you ship my goods LQ104S1DG21 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of SHARP LQ104S1DG21 ?
A: 90 days warranty .
Q: How can I trace my order of LQ104S1DG21 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of LQ104S1DG21 ?
A: Of course!If you make a large order, we will give you a discount.
LQ104S1DG21 Shipping and Package :
